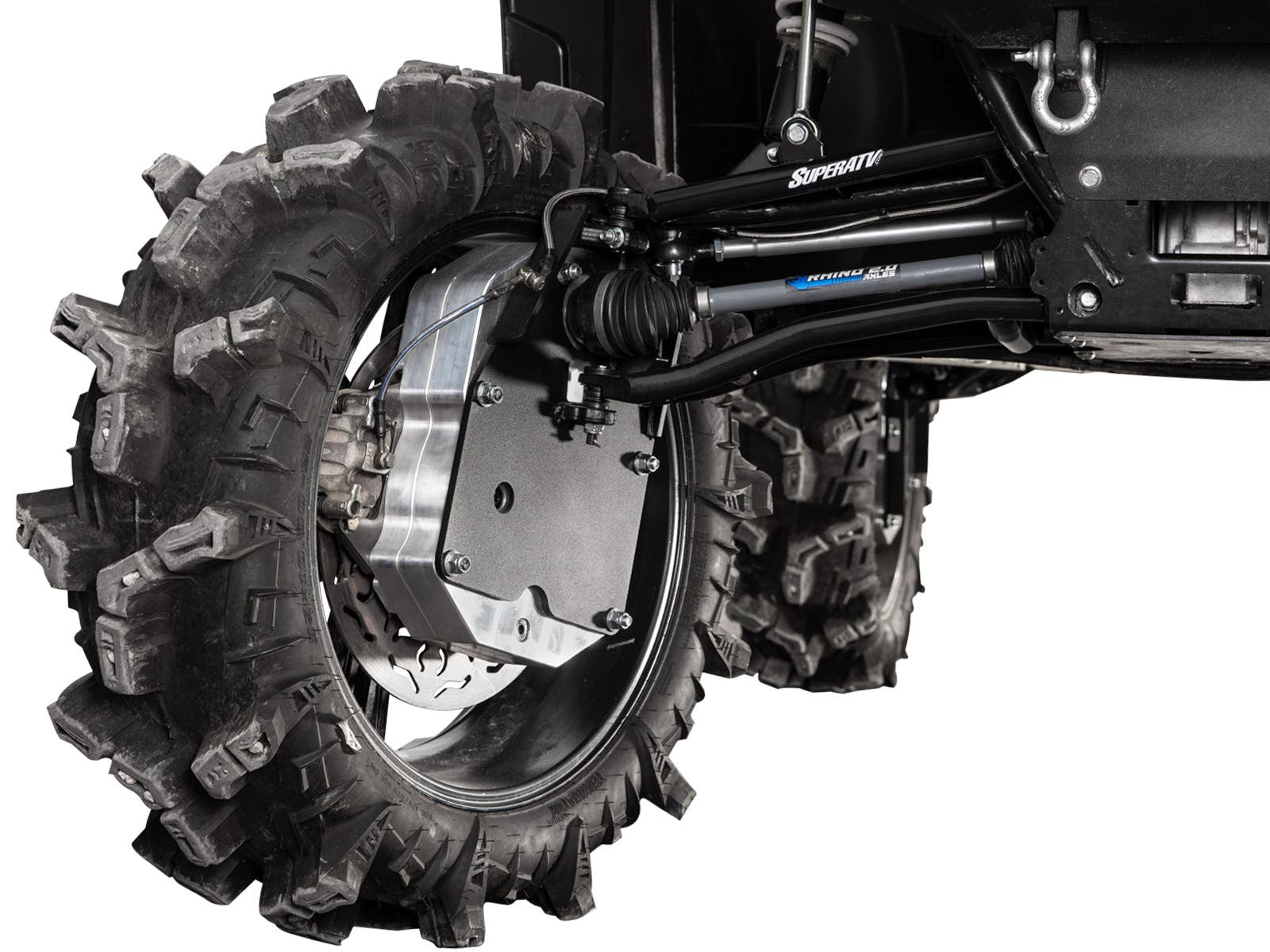

SuperATV Polaris Ranger XP 1000 8" Portal Gear Lift - Cast Housing, 45% Gear Reduction, Single Idler
SKU:
PGH8-1-34-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gear Down and Go Big
You didn’t get a Ranger just to haul fence posts around your property, you got a Ranger because you wanted the ultimate party wagon. With an 8" GDP Portal Gear Lift installed, you’ll tear up mud holes, destroy rock gardens, and have room for up to 34" tires. Choose a 45%, 60%, or 70% gear reduction for more torque and better low-end power.
What is a Dual Idler®?
After years of research and development, SuperATV’s Dual Idler® portal design uses a second idler gear in the portal box to spread the load over more surface area for more reliable torque transfer and stronger gear operation. Precision CNC grinding ensures the gears are perfectly mated, and they’re made from 9310 steel alloy.
Mud Can’t Stop a 45%, 60%, or 70% Gear Reduction
An 8" lift gives you room for huge tires and helps you cruise over the mud instead of plowing through it. The 45%, 60%, and 70% gear reduction options provide more torque, quicker acceleration, and easier turning with big tires.
A Gear Reduction Protects Your Drivetrain
Because the gear reduction is in the hub, your axles, differential, prop shafts, and transmission are under less stress. That means less wear and more riding.
Learn more about how tire size and gear reduction can help unleash your machine’s potential.
Housings and Backing Plates Built Stronger
GDP Portals are built for strength with your choice of cast or USA-made 6061 billet aluminum housings. They also use 5/16" backing plates made with an advanced steel alloy.
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood, gear oil formulated for GDP Portals
- No gimmicks and no vents because vents do more harm than good
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
A Frame Stiffener Is Required
An 8" portal kit is heavy-duty hardware for heavy-duty machines, and a frame stiffener is required. A stock frame can bend, so don’t skip it.
Top-Rated Customer Service
If you need help choosing the right setup, contact the portal support team for assistance.
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
8" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Caliper adapter plates (dual idler configuration only)
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
Polaris Ranger XP 1000 Portal Gear Suspension Recommendations
- 2017-2020: Max tire size 34" with stock suspension; 37" with 1.5" Forward Offset A-Arms; 38" with 1.5" Forward Offset A-Arms and 3" Lift Kit; 40" with 6" Lift Kit
- 2021+: Max tire size 32" with stock suspension; 35" with 1.5" Forward Offset A-Arms; 36" with 1.5" Forward Offset A-Arms and 3" Lift Kit; 38" with 6" Lift Kit
- If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
- Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
NOTE: If you plan on installing this portal kit with a preexisting RIDE System Rear Steering Kit, call us at 855-743-3427. We’ll make sure you get the correct compatible parts.
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Fitment:
- Polaris Ranger XP 1000 : 2017+
- Polaris Ranger XP 1000 Crew : 2017+
- Polaris Ranger XP 1000 Back Country Edition : 2019
- Polaris Ranger XP 1000 Back Country Edition Crew : 2019
- Polaris Ranger XP 1000 Texas Edition : 2021+
- Polaris Ranger XP 1000 Texas Edition Crew : 2021+
- Polaris Ranger XP 1000 High Lifter Edition : 2017+
- Polaris Ranger XP 1000 High Lifter Edition Crew : 2017+
- Polaris Ranger XP 1000 Trail Boss Edition : 2021+
- Polaris Ranger XP 1000 Trail Boss Crew Edition : 2021+
- Polaris Ranger XP 1000 Waterfowl Edition : 2021+
- Polaris Ranger XP 1000 Waterfowl Edition Crew : 2021+
- Polaris Ranger XP 1000 Big Game Edition : 2021+
- Polaris Ranger XP 1000 Big Game Edition Crew : 2021+
- Polaris Ranger XP 1000 NorthStar Edition : 2017-2020
- Polaris Ranger XP 1000 NorthStar Edition Crew : 2017-2020
- Polaris Ranger XP 1000 NorthStar Premium : 2021+
- Polaris Ranger XP 1000 NorthStar Premium Crew : 2021+
- Polaris Ranger XP 1000 NorthStar Ultimate : 2021+
- Polaris Ranger XP 1000 NorthStar Ultimate Crew : 2021+
Product Specs
SKU:
PGH8-1-34-301
Brand:
SuperATV
