SuperATV Polaris Ranger XP 1000 Long Travel Kit

SKU: LTK-P-RAN1K-6-001-02#NS

SELECT FITMENT

See If This Product Fits Your Vehicle

$4,447.95
$4,447.95

Free Shipping

Free ground shipping on all orders over $99
Model: NorthStar Edition
Year: 2021+
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Description

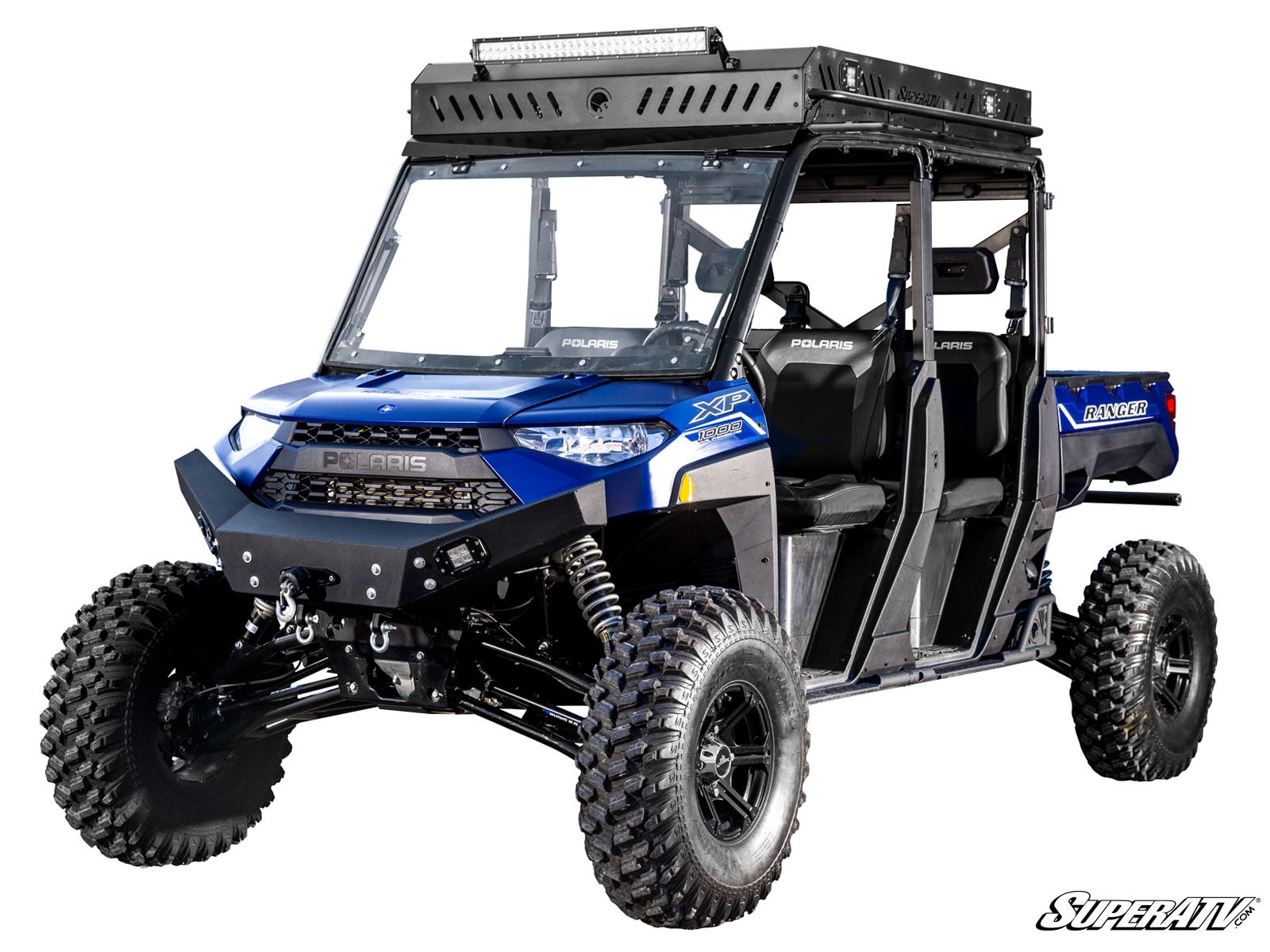

Polaris Ranger XP 1000 Long Travel Kit

Get SuperATV’s Polaris Ranger XP 1000 Long Travel Kit and dominate tough terrain with improved stability and articulation. This kit increases your machine’s total width by 6 inches on each side for a full width of 74.5 inches overall, helping you tackle deep mud, rocky climbs, and other challenging obstacles. It fits up to 34" tires.

  • Adds 6" to each side (74.5" overall)
  • Includes Atlas Pro A-arms
  • Fits up to 34" tires
  • Comes with everything needed to install and go
  • Preadjusted pivot blocks for perfect camber

Built for rough rides with Atlas Pro A-arms

This kit includes heavy-duty Atlas Pro A-arms made from 38 mm steel tubing for strength and reliability. They’re designed to work with large tires and include adjustable lower pivot blocks so you can dial in camber. They come preset to factory specs.

Includes heavy-duty Z-bend tie rods

When you add bigger tires and take on extreme terrain, upgraded tie rods are a must. This kit includes heavy-duty Z-bend tie rods built to handle rough abuse that OEM parts can’t.

Includes Rhino 2.0 axles

Rhino 2.0 Axles are included for impressive articulation and added strength. They feature oversized CVs, beefed-up shafts, and are backed by an 18-month warranty.

Preassembly available

Purchase SuperATV ball joints with your long travel kit and they’ll be installed in your new A-arms for free.

Note: You must re-use your stock ball joints if you do not select a pre-installed ball joint at checkout.

Ball joint options

Heavy-duty ball joints use hardened 4340 VAR steel and zinc plating, with accessible grease zerks and an adjustable design. Super Duty 300M Ball Joints use 300M grade steel with an adjustable steel-on-steel design and are 2.25x stronger than stock. Keller Ball Joints use a two-piece design that threads onto your A-arms, with a chromoly steel stud and tool-steel body; they are greaseable and rebuildable.

Kit includes:

  • High-clearance Atlas Pro A-arms
  • Heavy-duty Z-bend tie rod kit
  • Rhino 2.0 Axles
  • All braces and brackets
  • Extended front and rear brake lines
  • Bushings and sleeves
  • All hardware and instructions

Lift setup and max tire size:

  • Long travel kit only: 34"
  • 4" GDP Portals: 36"
  • 6" GDP Portals: 39"
  • 8" GDP Portals: 41"

Fitment:

  • Polaris Ranger XP 1000 : 2021+
  • Polaris Ranger XP 1000 Crew : 2021+
  • Polaris Ranger XP 1000 Big Game Edition : 2021-2022
  • Polaris Ranger XP 1000 Big Game Edition Crew : 2021-2022
  • Polaris Ranger XP 1000 High Lifter Edition : 2021-2022
  • Polaris Ranger XP 1000 High Lifter Edition Crew : 2021-2022
  • Polaris Ranger XP 1000 NorthStar Edition : 2021+
  • Polaris Ranger XP 1000 NorthStar Edition Crew : 2021+
  • Polaris Ranger XP 1000 Texas Edition : 2021
  • Polaris Ranger XP 1000 Texas Edition Crew : 2021
  • Polaris Ranger XP 1000 Trail Boss : 2021-2022
  • Polaris Ranger XP 1000 Trail Boss Crew : 2021-2022
  • Polaris Ranger XP 1000 Waterfowl Edition : 2021-2022
  • Polaris Ranger XP 1000 Waterfowl Edition Crew : 2021-2022

Note: Sway bar cannot be installed on High Lifter Edition.
