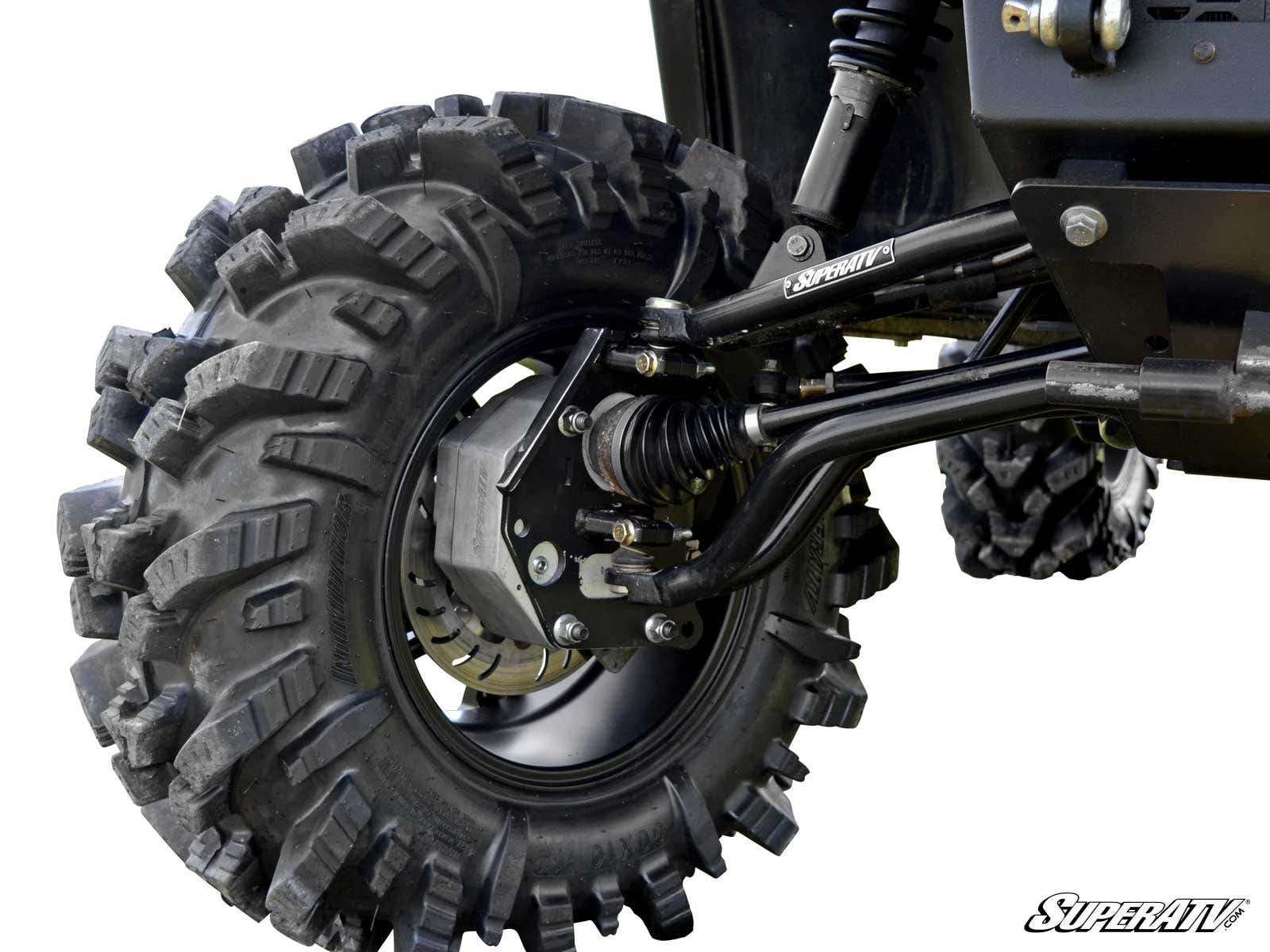

SuperATV Polaris Ranger XP 570 6" Portal Gear Lift
SKU:
PGH6-1-34-301#AA
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals Are Unbeatable
With Gen 3 GDP Portals, you can choose between 30%, 45%, and 60% gear reductions, and you can add dual idlers. Designed to enhance every riding style, these portal gear lifts are built for trails, dunes, deserts, mud, and rocks while helping reduce stress on your axles, differential, prop shaft, and transmission.
What is a Dual Idler®? By placing a second idler gear in the portal box, the load is spread over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears are properly mated, and the gears are made from 9310 steel alloy.
Built for strength and durability
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Advanced gaskets or O-rings help keep contaminants out
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset for 2" total extension
- Lighter than the competition
Advanced portal construction
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Sealed input gear and double-lipped output seal
- Double-angular contact output bearings help prevent premature wear
- Roller idler and drive bearings maintain perfect gear meshing
- Enhance with Portal Blood, gear oil formulated for GDP Portals
Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
Max tire size recommendations for 6" Portal Gear Lift
- Up to 30": Stock
- 31": 3" Lift Kit
- 32" to 33": 1.5" Forward Front A-Arms
- 34": 1.5" Forward Front A-Arms and 3" Lift Kit
- 35" to 38": 6" Lift Kit
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator.
Fitment
- Polaris Ranger XP 570 (PRO-FIT Cab) : 2015-2016
- Polaris Ranger XP 570 Crew (PRO-FIT Cab) : 2015-2016
Note: Will not fit the 2016+ Ranger Full-Size 570.
Wheel requirements:
- 18" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-1-34-301#AA
Brand:
SuperATV
