SuperATV Polaris Ranger XP 900 6" Lift Kit

SKU: LK-P-RAN900-6-001-R2-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,838.95
$2,838.95

Free Shipping

Free ground shipping on all orders over $99
Year: 2019
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Axles: Rhino 2.0
Description

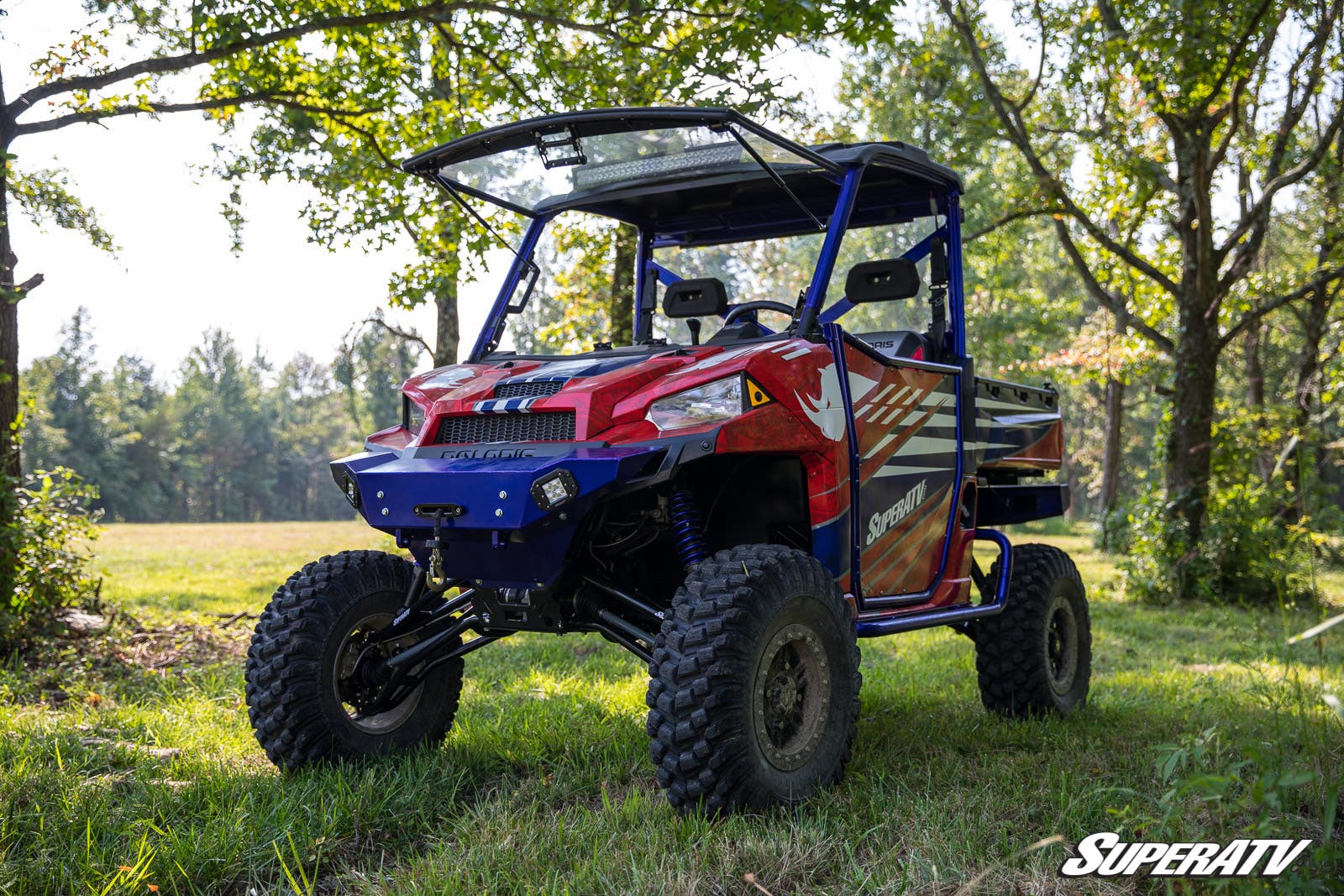

6” of lift makes your Ranger XP 900 better

We’ve taken the traditional and made it exceptional. With the Polaris Ranger XP 900, going big means you can ride trails and mud pits that were impossible before. This true 6” lift kit brings your UTV to a whole new level without killing your turning radius or making the suspension stiff and painful. It’s smooth, maneuverable, tall, strong, and has clearance for up to 34” tires. Whether you’re crossing ditches on the farm or shooting out rooster tails with your friends, this lift will elevate your ride.

A true 6” lift made with chromoly steel A-arms

The perfect geometry of this kit ensures you get a true 6” lift that still feels good to drive, with strength from side to side and top to bottom. The A-arms are made with 1-1/4” chromoly steel tubing and are 75% thicker than OEM, with additional cross bar supports. The tie rods are made with 7/8” solid chromoly bar and the lift brackets are made with 4.5 mm heavy-duty steel. You can choose between X300 and Rhino 2.0 axles.

Built to ride

This lift is built tough for riders who want monster tires and the ability to stack it on top of a GDP Portal Gear Lift. It’s designed to ride hard, not sit on a trailer.

Retains turning radius and comfortable suspension

We designed this kit to keep your suspension feeling comfortable and your turning radius intact. The shock angles and brackets are set up to help the suspension do what it’s meant to do while keeping you comfortable.

Upgrade to X300

X300 axles use a 300M steel shaft and maximized CVs for superior performance and strength. The 300M shaft flexes under load without breaking to absorb force that would normally destroy your CVs, differential, or transmission. It’s a tougher axle that helps protect your drivetrain.

Kit includes

  • Front and rear chromoly steel A-arms
  • Front and rear shock brackets
  • 4 SuperATV axles (X300 or Rhino 2.0)
  • Heavy-duty tie rod kit
  • Extended brake lines
  • Sway bar assembly and links
  • All hardware and installation instructions
  • True 6” of lift
  • Clearance for up to 34” tires (up from 25” stock)
  • 7” wider stance for increased stability
  • Compatible with OEM and SuperATV heavy-duty ball joints
  • Preadjusted pivot blocks give you perfect camber out of the box
  • UV resistant powder coated for increased durability
  • Lifetime warranty on A-arms and lift brackets

X300 axle features

  • 300M alloy steel shaft
  • CV components made of 300M and 4340 alloy steel
  • Maximized CV, spider, and cage size for superior strength
  • Shaft flexes to absorb impact
  • Reduces strain on CVs and drivetrain components
  • CVs packed with proprietary high-temp grease
  • Backed by a 3-year warranty

Rhino 2.0 features

  • 100% stronger than stock
  • Utilizes the Rhino 2.0 Formula
  • Massive 4mm increase in size
  • Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
  • Industry leading 18-month warranty
  • Field and lab tested for extreme strength and endurance
  • CAD drawn for expert precision

Fitment

  • Polaris Ranger XP 900: 2013-2019
  • Polaris Ranger XP 900 Crew: 2014-2019
Fitment
Fitment

Product Specs

SKU:
LK-P-RAN900-6-001-R2-02
Brand:
SuperATV
