SuperATV Polaris RZR PRO XP 8" Portal Gear Lift
SKU:
PGH8-1-86-451
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

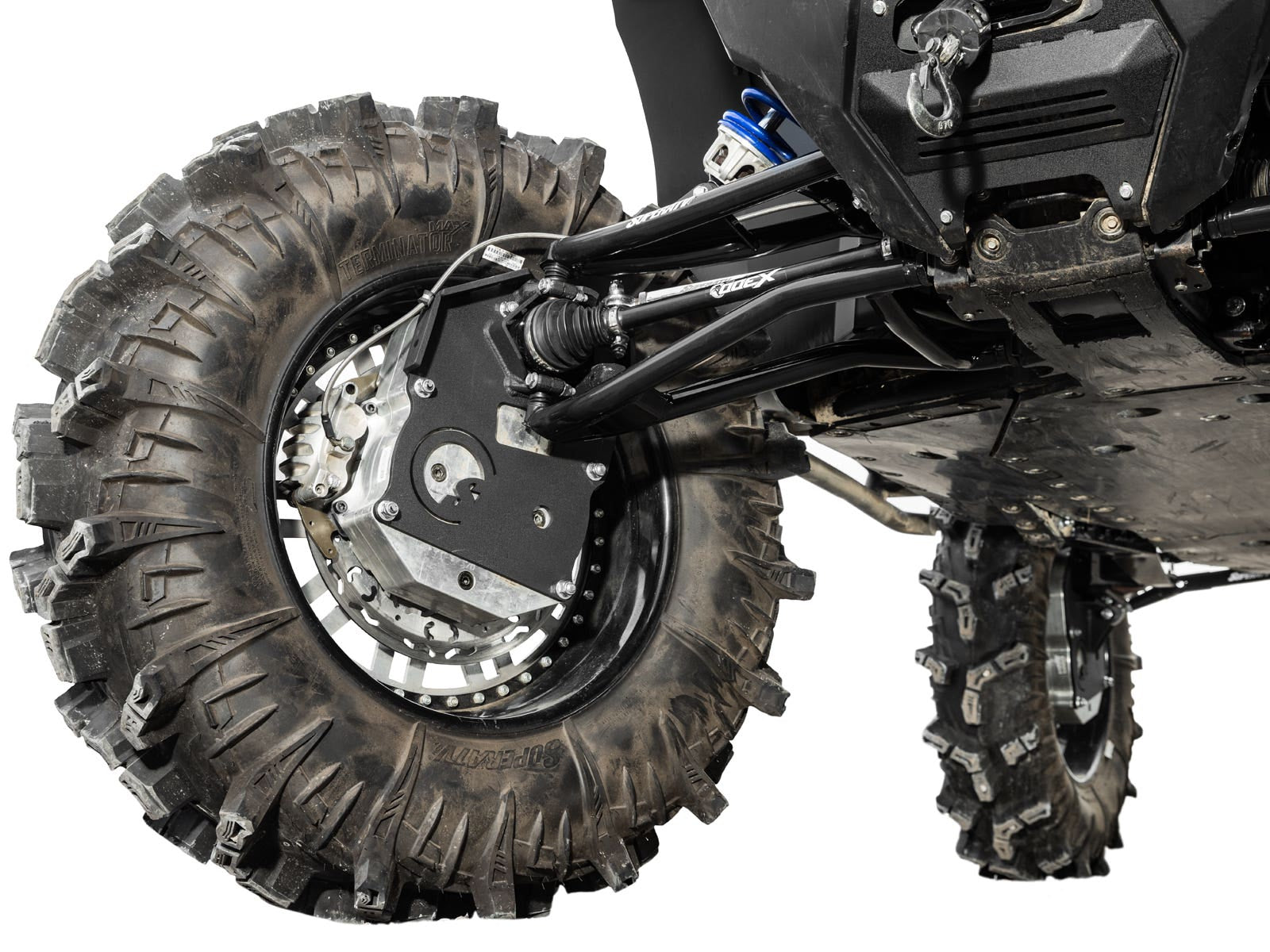

Gear Down and Go Big
Want to make your Polaris RZR PRO XP even more capable? With an 8" GDP Portal Gear Lift installed, you’ll gain more ground clearance, more torque, and the ability to run monster mud tires. Choose a 45% or 60% gear reduction to help your machine go where your buddies can’t.
More riders roll on GDP Portals than any other portal system. These trail-proven portals are built for riders who want dependable performance weekend after weekend.
A portal gear reduction reduces stress on your axles, differential, prop shaft, and transmission compared to a traditional transmission gear reduction, because the reduction happens after your drivetrain. That means less damage and more confidence when you stay in the throttle.
about how tire size and gear reduction can unleash your machine’s potential.
Built for Strength and Reliability
Our top-of-the-line gears use premium, precision-ground 9310 alloy steel for smooth operation and long-lasting durability. The portal housings are reinforced in all the right places and designed with better oil flow and gearing forces in mind. Depending on configuration, you’ll get cast aluminum or USA-made billet aluminum housings.
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4" front and rear offset—1.5" total extension
- Lighter than the competition
Advanced Sealing and Hard Parts
Both housings use advanced gaskets with strong oil resistance, rubber O-rings, a sealed input gear, and a double-lipped output seal for dependable sealing throughout. The output bearing is a double-angular contact bearing designed to handle heavy hits and keep your wheels riding true.
The backing plates are made from a premium steel alloy and are 5/16" thick for serious strength. The universal hubs use a tapered output shaft for a secure lock that resists wobble and wear over time. Precision-ground stainless steel slotted rotors help stay cool and provide reliable braking.
Fitment and Requirements
- Polaris RZR PRO XP : 2020+
- Polaris RZR PRO XP 4 : 2020+
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
A frame stiffener is required because the RZR PRO XP frame is not designed to handle the added demands of 8" GDP Portals without reinforcement.
Portal Gear Suspension Recommendations
- 40" tires: stock suspension
- 40" tires: 3" lift kit
- 43" tires: 1.5" forward front A-arms
- 43" tires: 1.5" forward front A-arms and 3-5" lift kit
Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.
8" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Caliper adapter plates
- (2) Steel steering arms
- (2) Aluminum hub adapters
- Extended brake lines
- Steering stop brackets (PGH8-1-86-451 / PGH8-1-86-452 ONLY)
- All required hardware, including recessed castle nut socket
- Frame stiffener (optional)
Patent # 11,299,042
