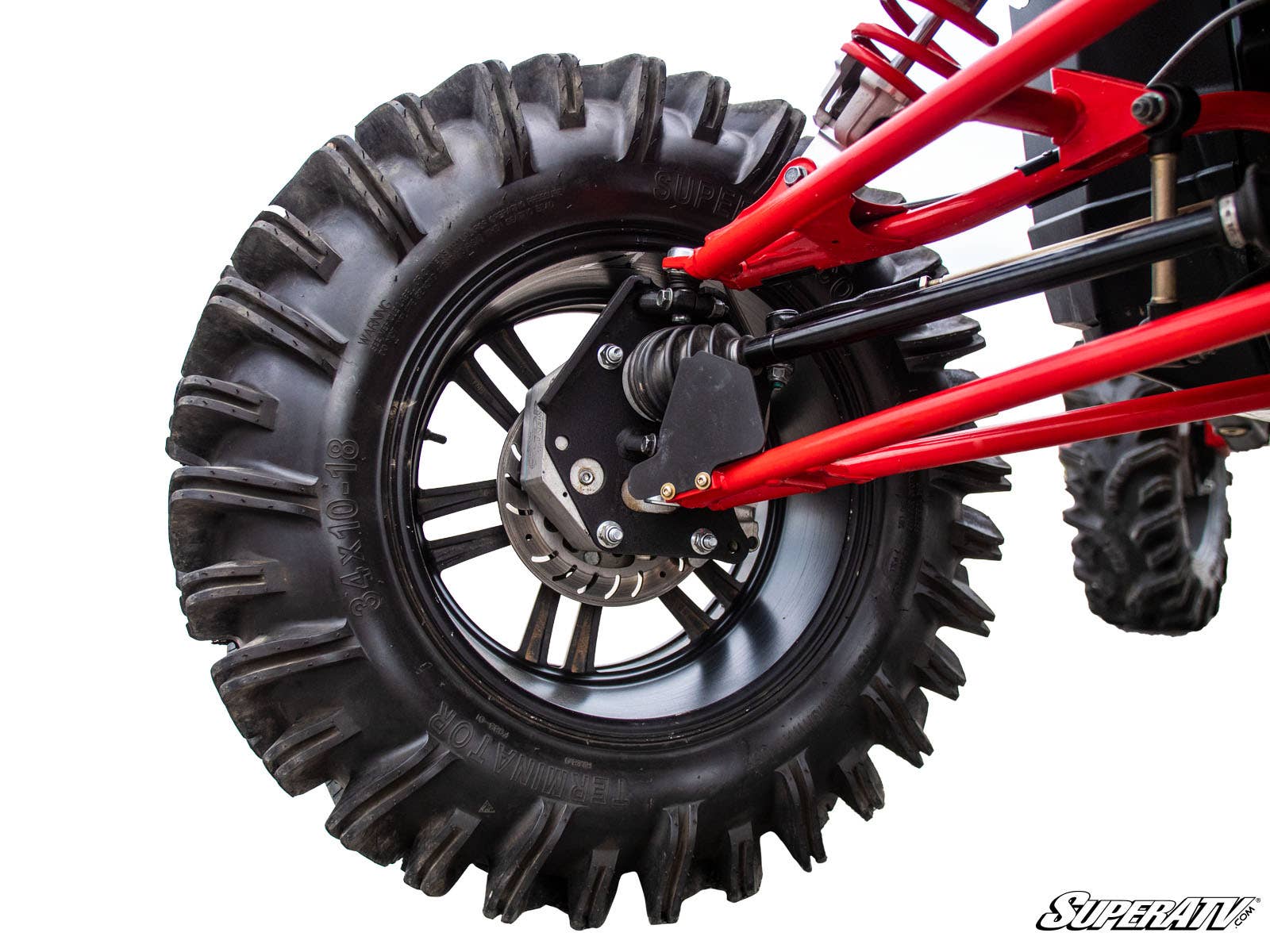

SuperATV Polaris RZR RS1 4" Portal Gear Lift
SKU:
PGH-1-33-156
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,941.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals are Geared for All
SuperATV’s GDP 4" Portal Gear Lift for the Polaris RZR RS1 is available with 15% or 30% gear reductions and cast or billet housings, so you can optimize your ride for mud, rocks, or trails.
Perfect for mud: Choose a 30% gear reduction for a massive boost in torque, giving you the power to turn bigger tires and power through thick bounty holes. It’s also still suitable for road use, trails, and rocks.
Perfect for rocks: A 4" portal lift with a 30% gear reduction gives you the torque and clearance needed to crawl over rocks and run bigger tires without scraping your skid plate.
Perfect for trails: Choose a 4" portal lift with a 15% gear reduction to keep high speed and bring out your UTV’s true power on trails and hills.
about how tire size and gear reduction can unleash your machine’s potential.
Better gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. They stay cool and quiet even under hard throttle and are built to withstand demanding rides.
Reinforced housings and ultra-tough backing plates
Choose cast or billet aluminum housing and get a rugged, trail-proven setup built for strength and oil flow. The 5/16" backing plates are made from a high-performance steel alloy that outmuscles chromoly, and the integrated rear hub backing plates help eliminate failure-prone aluminum hubs.
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates stronger than chromoly
- Ultra-strong integrated rear hub backing plates
- Enhance with , gear oil formulated for GDP Portals
- No gimmicks and no vents
Advanced gaskets and seals
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
Top-rated customer service
If you need help choosing the right set of portals, SuperATV has a dedicated portal support team ready to help.
4" Portal Gear Lift includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (4) Caliper adapter plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max tire size recommendations for 4" Portal Gear Lift
- Max tire size: 34"
- Required suspension setup with GDP Portals: Stock
- If you need help figuring out which gear reduction is right for you, check out our .
- Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brake lines, and instructions
Fitment
- Polaris RZR RS1: 2018-2021
Wheel requirements:
- 14" or larger wheel required
- 14" and 15" wheels cannot exceed 4-1/2" backspacing
- 16" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer
- Not compatible with dual beadlock wheels
Product Specs
SKU:
PGH-1-33-156
Brand:
SuperATV
