SuperATV Polaris RZR Trail S 1000 6" Portal Gear Lift
SKU:
PGH6-1-44-302#S1000
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
GDP’s RZR Trail S 1000 Portals Are the Industry’s Best
Give your Polaris RZR Trail S 1000 a complete overhaul with a GDP 6" Portal Gear Lift from SuperATV. It delivers impressive height and the torque you need to dominate the trails. Choose 30%, 45%, or 60% gear reduction and your housing style to get a portal gear lift that’s entirely your own. You can also upgrade to dual idler gears for maximum strength.

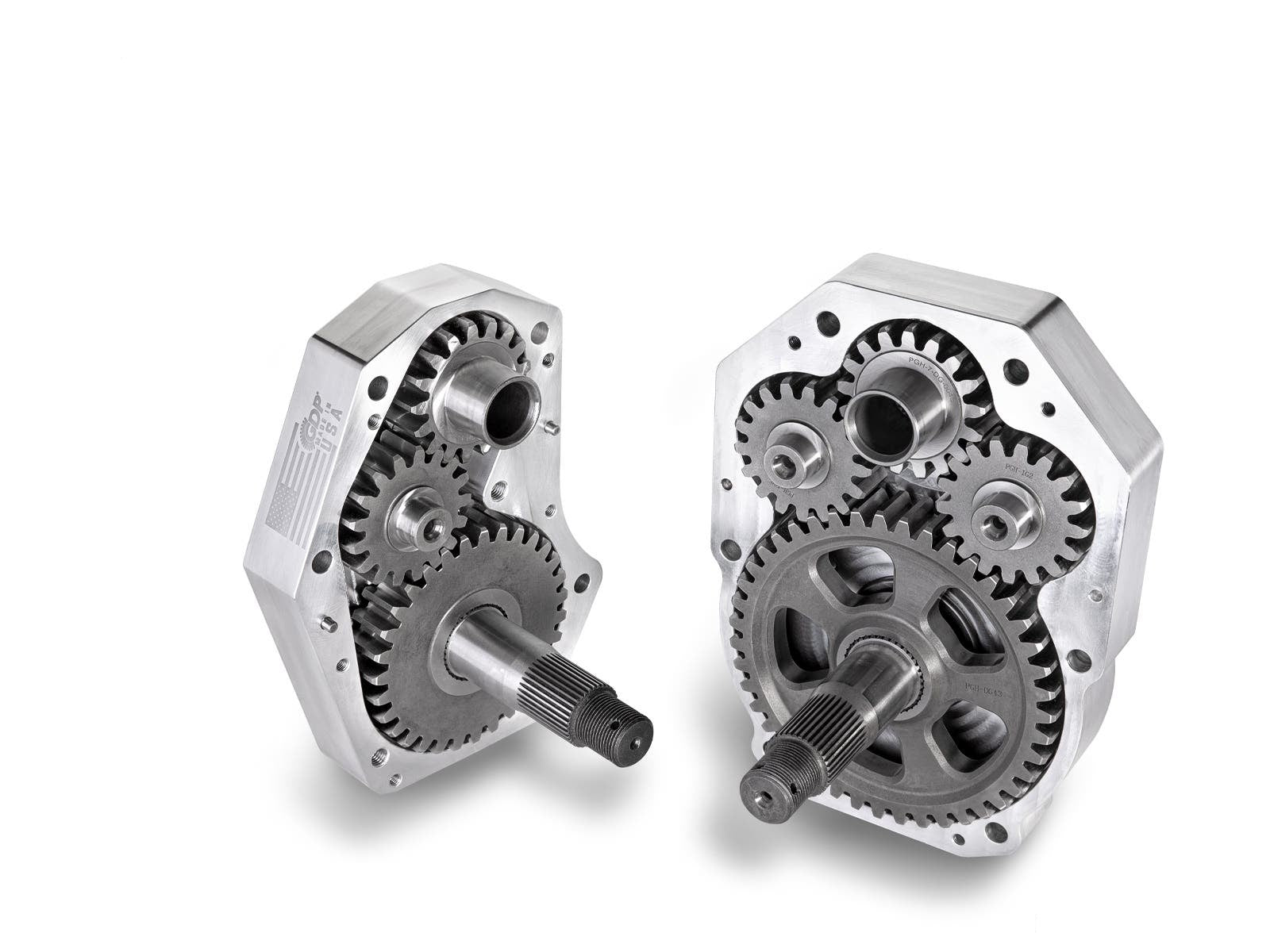

What is a Dual Idler®?
After years of research and development, GDP’s dual idler gear portals spread the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears mate perfectly, and they’re made from 9310 steel alloy for exceptional strength.
Get a Gear Reduction to Match Your Style
Whether you ride trails, dunes, mud, or rough terrain, a GDP Portal Gear Lift is built for adventure. Choose a smaller 30% reduction for faster rides with plenty of torque, a 45% reduction for bigger tires and rougher terrain, or a 60% reduction for maximum mud performance. Dual idler gears take strength even further.
GDP’s Gear Reduction Reduces Drivetrain Wear
By placing the gear reduction directly in the hub, portal gear lifts reduce stress on your axles, differential, prop shaft, and transmission, helping them last longer through demanding rides.
Smartly Designed, Trail-Proven Strength
GDP portals are built to last with cast and billet aluminum housings and 5/16" backing plates made from an advanced steel alloy. Features include reinforced housings for gear retention and optimized oil flow, stronger-than-chromoly backing plates, and no vents, since vents can do more harm than good.
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations for 6" Portal Gear Lift
- 35" with stock suspension
- 35" with 1.5" Forward Offset A-Arms
- 39" with OEM fender flares or 35" with SATV fender flares when used with 1.5" Forward Offset A-Arms and 1.5" Rear Offset A-Arms
- 45" with 7–10" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. Max tire sizes are measured at full compression and full turn. The tire sizes listed are the largest we fit without rubbing; larger tires may fit with minor trimming or a small amount of rub.
Patent # 11,299,042Patent # 11,318,787
Fitment:
- Polaris RZR Trail S 1000 Premium : 2021+
- Polaris RZR Trail S 1000 Ultimate : 2021+
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
