SuperATV Polaris RZR Turbo R 6" Portal Gear Lift
SKU:
PGH6-1-84-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

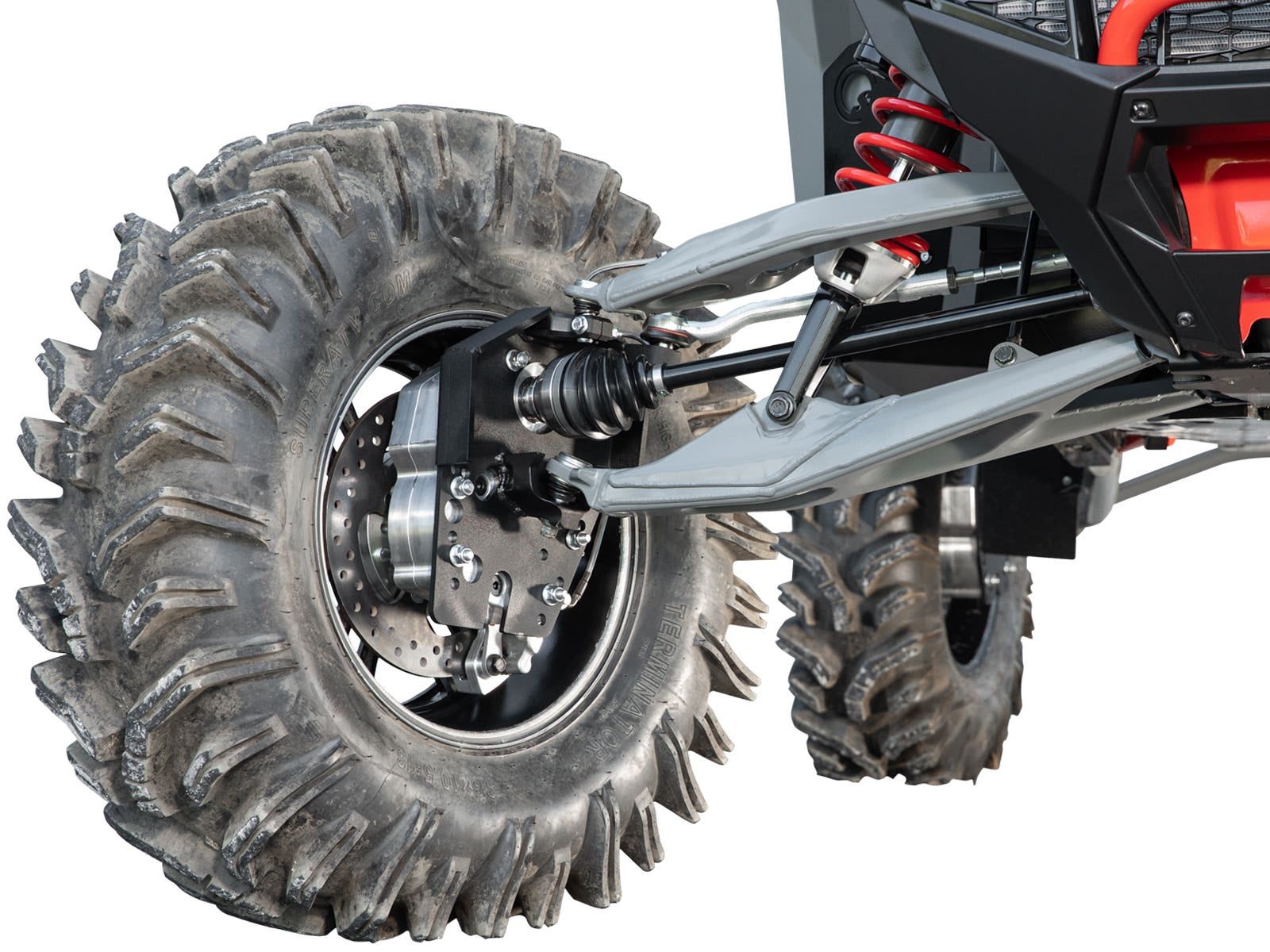

Gen 3 Portals—Best on the MarketSuperATV’s GDP 6" Portal Gear Lift gives your Polaris RZR Turbo R a lift and a gear reduction all in one. Choose a 30%, 45%, or 60% gear reduction, or upgrade to a dual idler gear portal for maximum strength. Built from real-world testing and engineered for hard riding, GDP Portals are designed to help you get the most out of your machine.
Dual Idler StrengthThese portals use a second idler gear to spread the load over twice as much surface area for more reliable torque transfer and a stronger gear set. They feature precision-ground gears made from 9310 steel alloy for cool, quiet operation and exceptional strength.
Built to Improve PerformancePortals put the gear reduction in the hub, which reduces stress on your drivetrain and helps your axles, prop shaft, differential, and transmission last longer. The 6" lift is built into the system, giving you added clearance without making your drivetrain work overtime.
Strong, Durable ConstructionAvailable with billet or cast aluminum housings, these portals are reinforced for gear retention and optimized for oil flow. They also use advanced steel alloy backing plates, a 1.5" diameter 4340 hardened steel drive shaft, and advanced gaskets or O-rings for dependable sealing.
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
Sealing and Bearing DesignThe portals include advanced gaskets and O-rings with excellent oil resistance, a sealed input gear, a double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings to help maintain perfect gear meshing and reduce wear.
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (4) Caliper adapter plates
- (2) Rear hub adapters
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations for 6" Portal Gear Lift
- 42" tire size: Stock suspension setup
- 45" tire size: 1.5" forward offset front A-arm
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Fitment
- Polaris RZR Turbo R : 2022-2024
- Polaris RZR Turbo R 4 : 2022-2024
Wheel Requirements:
- 18" or larger wheel required
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH6-1-84-301
Brand:
SuperATV
