SuperATV Polaris RZR XP 1000 6" Portal Gear Lift - Billet Housing, Single Idler
SKU:
PGH6-1-33-301-B
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,129.95
- $4,129.95
$4,584.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

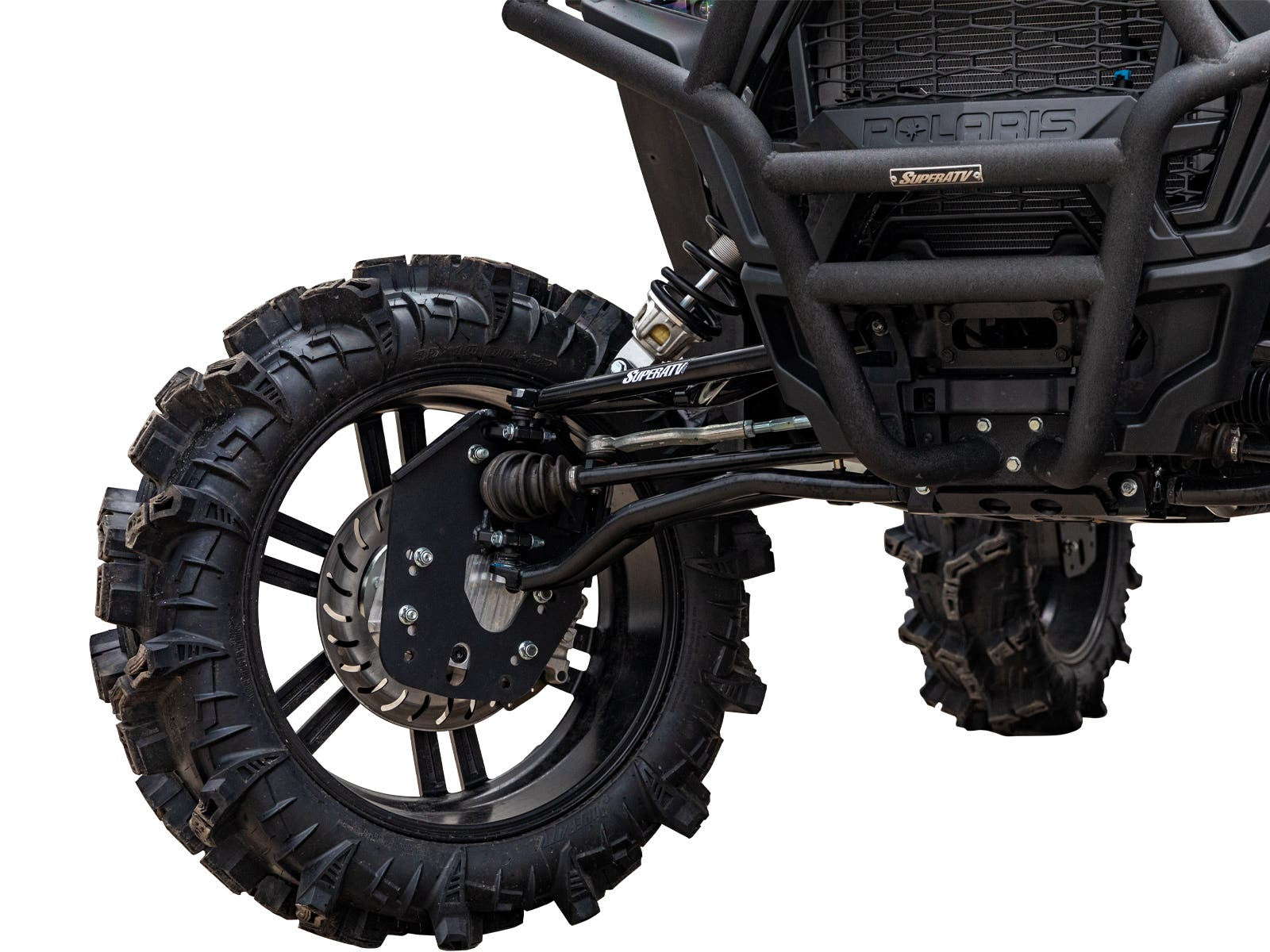

Ride Your Way with GDP Portals Get the clearance you need to run bigger tires and the torque you need to turn them with SuperATV’s GDP 6" Portal Gear Lift for the Polaris RZR XP 1000. Choose your housing style, cast or billet, and your gear reduction: 30%, 45%, or 60%, with dual idler gear options available for maximum performance.
What is a Dual Idler? A second idler gear in the portal box spreads the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures proper gear mating, and the gears are made from 9310 steel alloy.
Designed for All Riders Whether you ride mud, trails, dunes, or all of the above, these portals are built to match your style. A smaller 30% reduction is ideal for fast rides with plenty of torque, 45% helps you run bigger tires and tackle bigger rocks, and 60% is designed for serious mud builds. Dual idler gear configuration is also available.
Keep Your Drivetrain Safe The gear reduction happens right in the hub, not in your transmission, helping reduce strain on vital components like your axles and differential so they can last longer.
Industry-Leading Construction Choose from cast or USA-made, CNC-machined 6061 billet aluminum housings. Features include reinforced housings for gear retention and optimized oil flow, advanced steel alloy backing plates, ultra-strong integrated rear hub backing plates, and the option to enhance with Portal Blood, gear oil formulated for GDP Portals.
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- 1.5 in. diameter 4340 hardened steel drive shaft
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset, 2" total extension
- Lighter than the competition
Complete the Package with a Frame Stiffener A 6" lift and bigger tires add strain to your RZR’s frame, so a SuperATV Frame Stiffener is recommended when installing these portals.
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with shims
- (2) Caliper adapter plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener must be selected at checkout
Max Tire Size Recommendations for 6" Portal Gear Lift
- 34" tires: Stock suspension
- 36" tires: 1.5" Forward Offset A-Arms
- 36" tires: 3-5" Lift Kit
- 39" tires: 1.5" Forward Offset A-Arms and 3-5" Lift Kit
- 46" tires: 7-10" Lift Kit
- If you need help figuring out which gear reduction is right for you, use the portal gear reduction calculator.
- Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest that fit without rubbing; larger tire sizes may be used with minor trimming or a small amount of rub.
Fitment
- Polaris RZR XP 1000: 2014-2023
- Polaris RZR XP 4 1000: 2014-2023
Note: Please check the bolt size of the hardware that fastens the Radius Arms to the brace plate and select the socket size that corresponds to your OEM size. Polaris made a change in the mid-year in 2017 that has caused some confusion with fitment.
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042 Patent # 11,318,787
