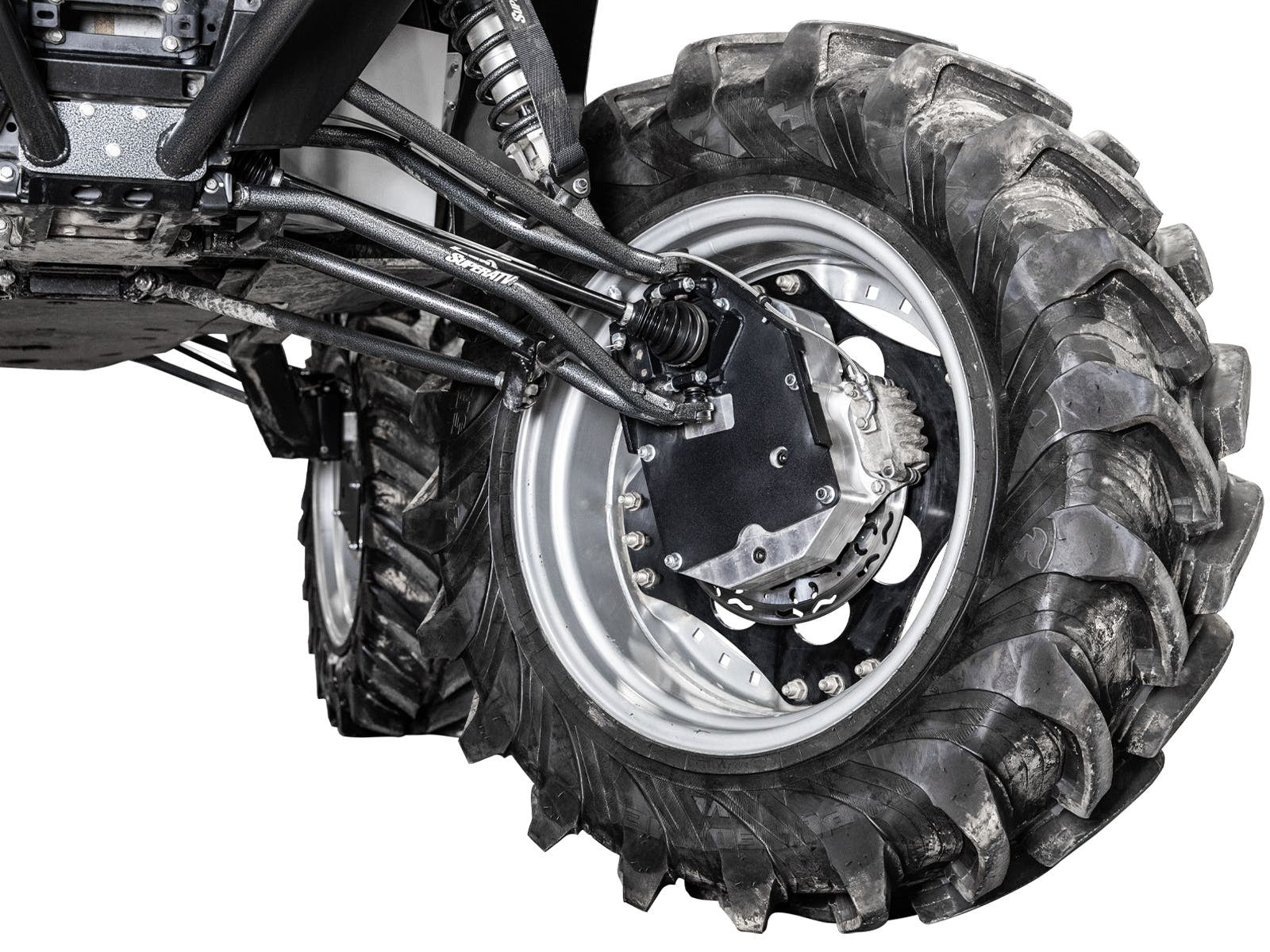

SuperATV Polaris RZR XP 1000 8" Portal Gear Lift

SKU: PGH8-1-33-301

SELECT FITMENT

See If This Product Fits Your Vehicle

$4,189.95
$4,189.95
$4,653.95

Free Shipping

Free ground shipping on all orders over $99
Year and Model: 2014 Standard
Frame Stiffener: No, I already have a frame stiffener.
Portal Setup: Cast Housing, 45% Gear Reduction, Single Idler

Gear Down and Go Big

An 8" GDP Portal Gear Lift gives your Polaris RZR XP 1000 the room for huge 40" tires and the torque to turn them, thanks to 45%, 60%, or 70% gear reduction. With dual idler gears and precision-ground 9310 steel gears, these portals are built for strength, durability, and serious mud performance.

Portals place the gear reduction in the hub, after the rest of the drivetrain, helping reduce wear on axles, differential, transmission, and prop shafts while unlocking more of your machine’s potential.

Features:

  • Available with billet or cast aluminum housing
  • Dual idler gear configuration maximizes strength
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • 1.5 in. forward and rear offset
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use advanced gaskets or O-rings
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain

Strong construction and sealing:

  • Reinforced housings are optimized for gear retention and oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Integrated rear hub backing plates help eliminate failure-prone aluminum hubs
  • Advanced gaskets and O-rings resist oil deterioration
  • Sealed input gear and double-lipped output seal
  • Double-angular contact output bearings help prevent premature wear
  • Roller idler and drive bearings maintain perfect gear meshing

Important notes:

  • A SuperATV Frame Stiffener is required with these portals on the RZR XP 1000
  • Enhance with Portal Blood gear oil formulated for GDP Portals
  • Patent # 11,299,042
  • Patent # 11,318,787

Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (2) Caliper adapter plates
  • (2) Steel steering arms
  • (4) Shims for specific year models only
  • Extended brake lines
  • All required hardware, including recessed castle nut socket
  • Frame stiffener optional

Suspension recommendations for 8" portals:

  • 40" tires: stock suspension
  • 42" tires: 1.5" forward front A-arms
  • 44" tires: 1.5" forward front A-arms and 3" lift kit
  • 50" tires: 7-10" lift kit

Max tire sizes are measured at full compression and full turn. Larger tire sizes may be possible with minor trimming or some rub.

If you need help choosing the right gear reduction, use the portal gear reduction calculator.

Fitment:

  • Polaris RZR XP 1000: 2014-2023
  • Polaris RZR XP 4 1000: 2014-2023

Wheel requirements:

  • 22" or larger wheel required
  • Wheels cannot exceed 5" backspacing
  • Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
