SuperATV Polaris RZR XP 4" Portal Gear Lift

SKU: PGH-1-102-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Do you need a frame stiffener?: No, I already have a frame stiffener.
Portal Setup: Cast Housing, 15% Gear Reduction, Single Idler
Description

No One Does Portals like GDP Want to take your Polaris RZR XP to the next level? SuperATV's 4" GDP Portal Gear Lift does it better than anything else. Choose between a 15% or 30% gear reduction and select the housing type that fits your build. For the maximum upgrade, dual idler gears provide maximum strength.

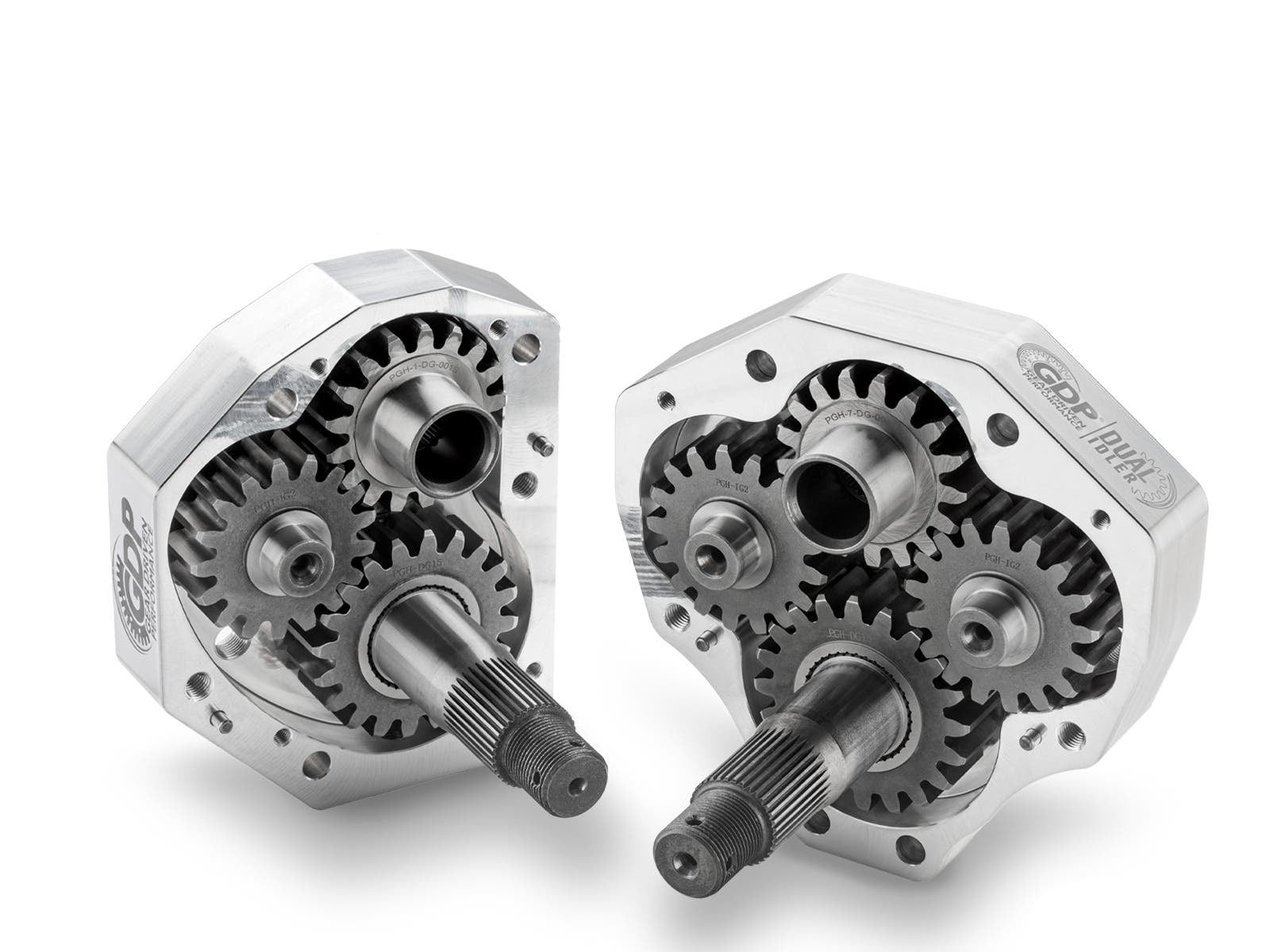

What Is a Dual Idler? By placing a second idler gear in the portal box, the load is spread over twice as much surface area for more reliable torque transfer and the strongest gear set available. Precision CNC grinding ensures the gears are perfectly mated, and they’re made from tough 9310 steel alloy.

GDP Lets You Ride How You Want Whether you're tackling mud, rocks, trails, or the desert, GDP has you covered. If you spend your time in bounty holes and boulder fields, opt for a 30% gear reduction for more low-end torque with big tires. If you prefer high-speed action, a 15% gear reduction is the way to go.

Portals Reduce Drivetrain Wear and Tear These RZR XP portals put the gear reduction right in the hub, so your axles, differential, prop shaft, and transmission work less and won't wear as quickly.

The Pinnacle of Portal Strength With more GDPs in action than any other portal system, these portals are built for ultimate durability. Cast and 6061 billet aluminum housings are paired with advanced steel alloy backing plates for unbeatable strength.

  • Our housings are reinforced for gear retention and optimized for oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with Portal Blood—gear oil formulated for GDP Portals
  • There are no gimmicks and no vents because vents do more harm than good

Advanced Gaskets, Seals, and Bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • A sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout so you can forget about oil leaks
  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Protect Your Frame with a Frame Stiffener Extra ground clearance and bigger tires lead to more action-packed rides. But can your stock frame keep up? To stay confident while you put pedal to the metal, consider adding a SuperATV Frame Stiffener when installing your new portals.

4" Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates with spacers
  • (2) Steel steering arms
  • Extended brake lines with parking brake and brake cable brackets
  • All required hardware including recessed castle nut socket

Max Tire Sizes for 4" Portal Gear Lift

  • Single idlers: 35" max tire size with stock suspension, 36" with a 3" lift kit, 37" with 1.5" forward offset A-arms, 38" with 1.5" forward offset A-arms and a 3" lift kit, and 38" with 2" offset A-arms
  • Dual idlers: 36" max tire size with stock suspension, 38" with a 3" lift kit, 39" with 1.5" forward offset A-arms, 40" with 1.5" forward offset A-arms and a 3" lift kit, and 40" with 2" offset A-arms
  • Max tire sizes are measured at full compression and full turn. Larger tires may fit with minor trimming or a small amount of rub.

If you need help figuring out which gear reduction is right for you, check out our .

Patent # 11,299,042Patent # 11,318,787

Fitment:

  • Polaris RZR XP: 2024+
  • Polaris RZR XP 4: 2024+

Wheel Requirements

  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
