SuperATV Polaris RZR XP 6" Portal Gear Lift
SKU:
PGH6-1-102-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Top of the Industry—GDP Portals
Transform your Polaris RZR XP into a trailblazing beast with the SuperATV GDP 6" Portal Gear Lift. It lifts your ride and gives you the power you need to conquer the trails. Choose from 30%, 45%, or 60% gear reduction, select billet or cast aluminum housings, and upgrade to dual idler gears for maximum strength.

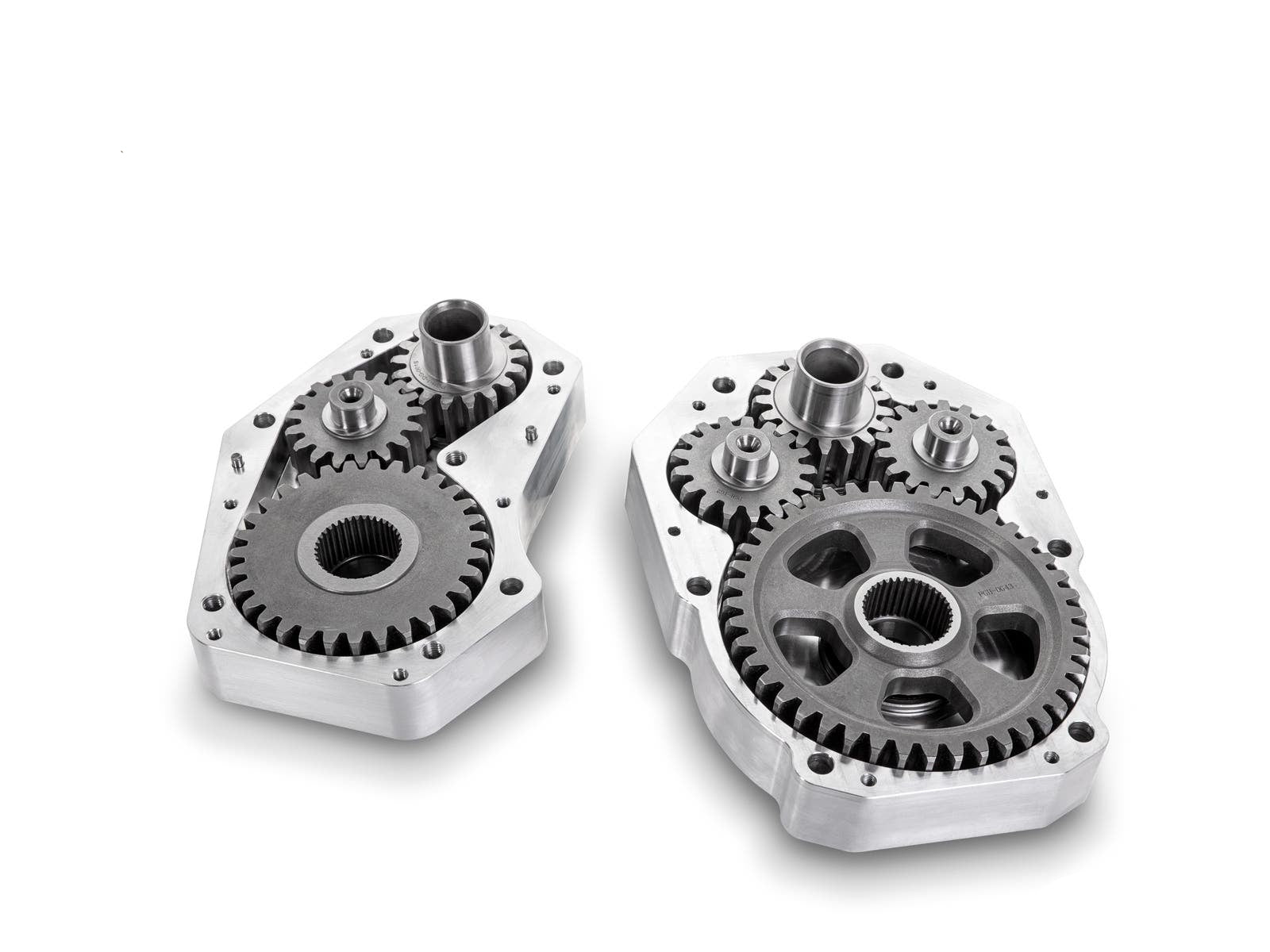

What Is a Dual Idler?
Dual idler portals use a second idler gear in the portal box to spread the load over twice as much surface area for more reliable torque transfer and exceptional strength. The gears are precision CNC ground and made from 9310 steel alloy for smooth, quiet operation and durability.
Why Choose a Gear Reduction?
Portal gear lifts place the gear reduction in the hub, helping reduce stress on your axles, differential, prop shaft, and transmission compared to stock. Choose 30% for faster trail riding with plenty of power, 45% for rock crawling and rough terrain, or 60% for the ultimate mud setup with massive tires.
Built for Strength
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Precision-ground 9310 alloy steel gears
- 1.5" diameter 4340 hardened steel drive shaft
- Advanced gaskets and O-rings resist oil leaks
- Universal hub fits all major bolt patterns
- Dual idler configuration adds 1" front and rear offset, 2" total extension
- Lighter than the competition
Advanced Sealing and Bearing Design
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout
- Double-angular contact output bearings to help prevent premature wear
- Roller idler and drive bearings for proper gear meshing
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size / Suspension Setup with 6" Portals
- 38" tire size: Stock
- 40" tire size: 3" lift kit
- 41" tire size: 1.5" forward offset A-arms
- 42" tire size: 2" offset A-arms
- 43" tire size: 1.5" forward offset A-arms and 3" lift kit
If you need help figuring out which gear reduction is right for you, check out our .
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Fitment
- Polaris RZR XP: 2024+
- Polaris RZR XP 4: 2024+
Wheel Requirements
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent #11,299,042Patent #11,318,787
Product Specs
SKU:
PGH6-1-102-301
Brand:
SuperATV
