SuperATV Polaris RZR XP 900 4" Portal Gear Lift

SKU: PGH-1-16-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Model: 2 Seat
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

Gen 3 Portals are Geared for All

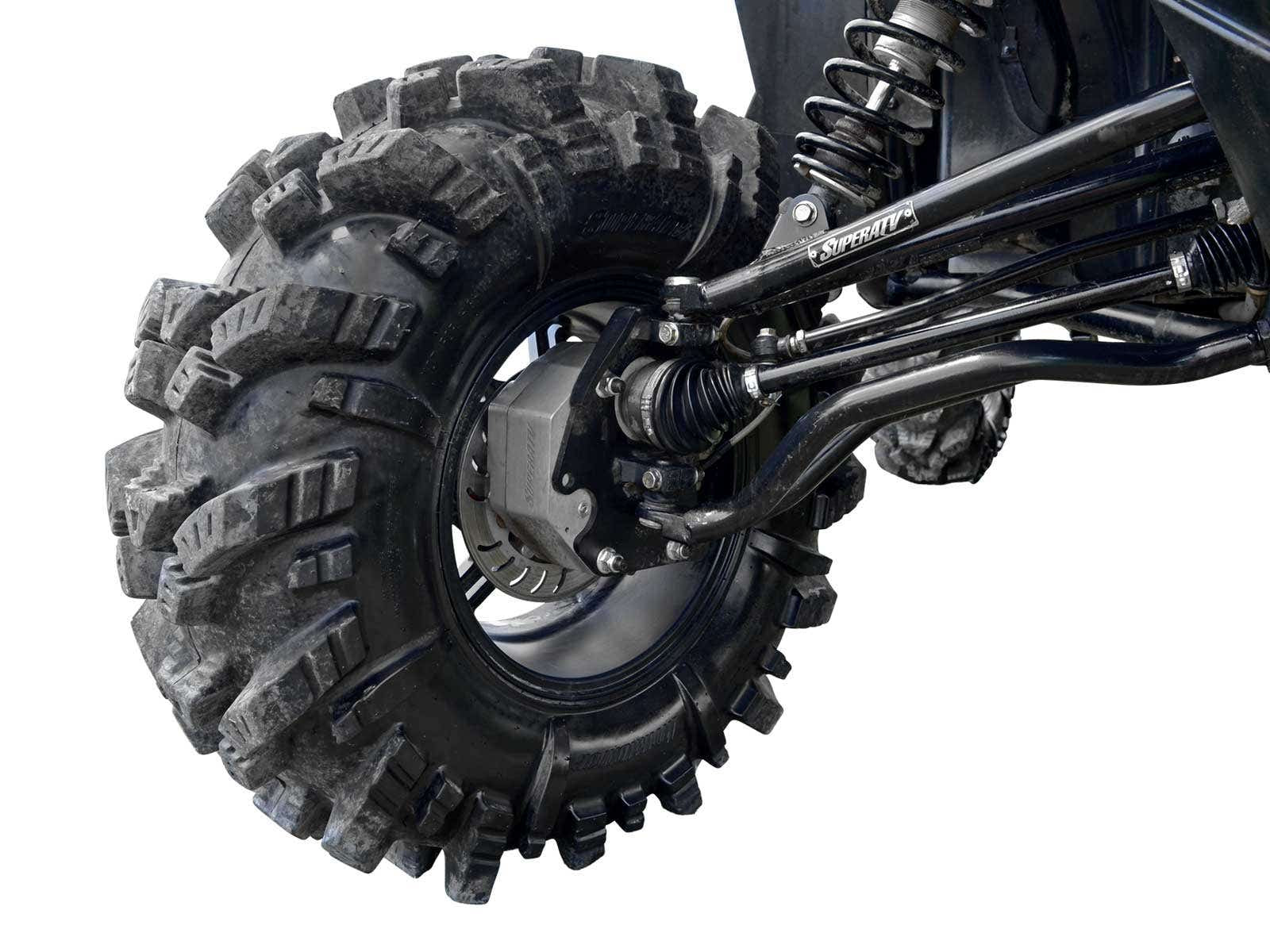

SuperATV’s GDP 4" Portal Gear Lift for the Polaris RZR XP 900 is available with 15% or 30% gear reductions, so you can choose the setup that best matches your riding style and terrain.

Perfect for mudChoose the 30% gear reduction for a big boost in torque to turn larger tires and power through thick mud. It can also be used on the road and on trails and rocks.

Perfect for rocksWith 4" portals and a 30% gear reduction, you get the torque needed to crawl over rocks and the clearance to help protect your skid plate while running bigger tires.

Perfect for trailsChoose the 15% gear reduction for trail riding and keep your speed up while still gaining the benefits of a 4" portal lift.

about how tire size and gear reduction can unleash your machine’s potential.

Features

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Housing and sealing design

  • Reinforced housings designed for better oil flow and gearing forces
  • Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage to help prevent oil leaks

Polaris RZR XP 900 Portal Gear Reduction Recommendations

  • Up to 25" tires: stock suspension setup, 15% reduction
  • Up to 26" tires: 3-5" lift kit, 15% reduction
  • Up to 28" tires: 1.5" forward front A-arms, 15% reduction
  • 29" to 30" tires: 1.5" forward front A-arms and 3-5" lift kit, 15% reduction
  • 31" to 35" tires: 6" lift kit, 30% reduction

Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Call for more information.

Fitment

  • Polaris RZR XP 900: 2011-2014
  • Polaris RZR XP 4 900: 2012-2014

Wheel requirements:

  • 14" or larger wheel required
  • 14" and 15" wheels cannot exceed 4-1/2" backspacing
  • 16" and larger wheels cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer

Patent # 11,299,042
