SuperATV Polaris RZR XP 900 6" Portal Gear Lift

SKU: PGH6-1-16-301

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,099.95
$3,099.95
$3,391.95

Free Shipping

Free ground shipping on all orders over $99
Model: 2 Seat
Portal Housing Material: Cast
Portal Gear Reduction: 30%
Description

Gen 3 Portals are Geared for All

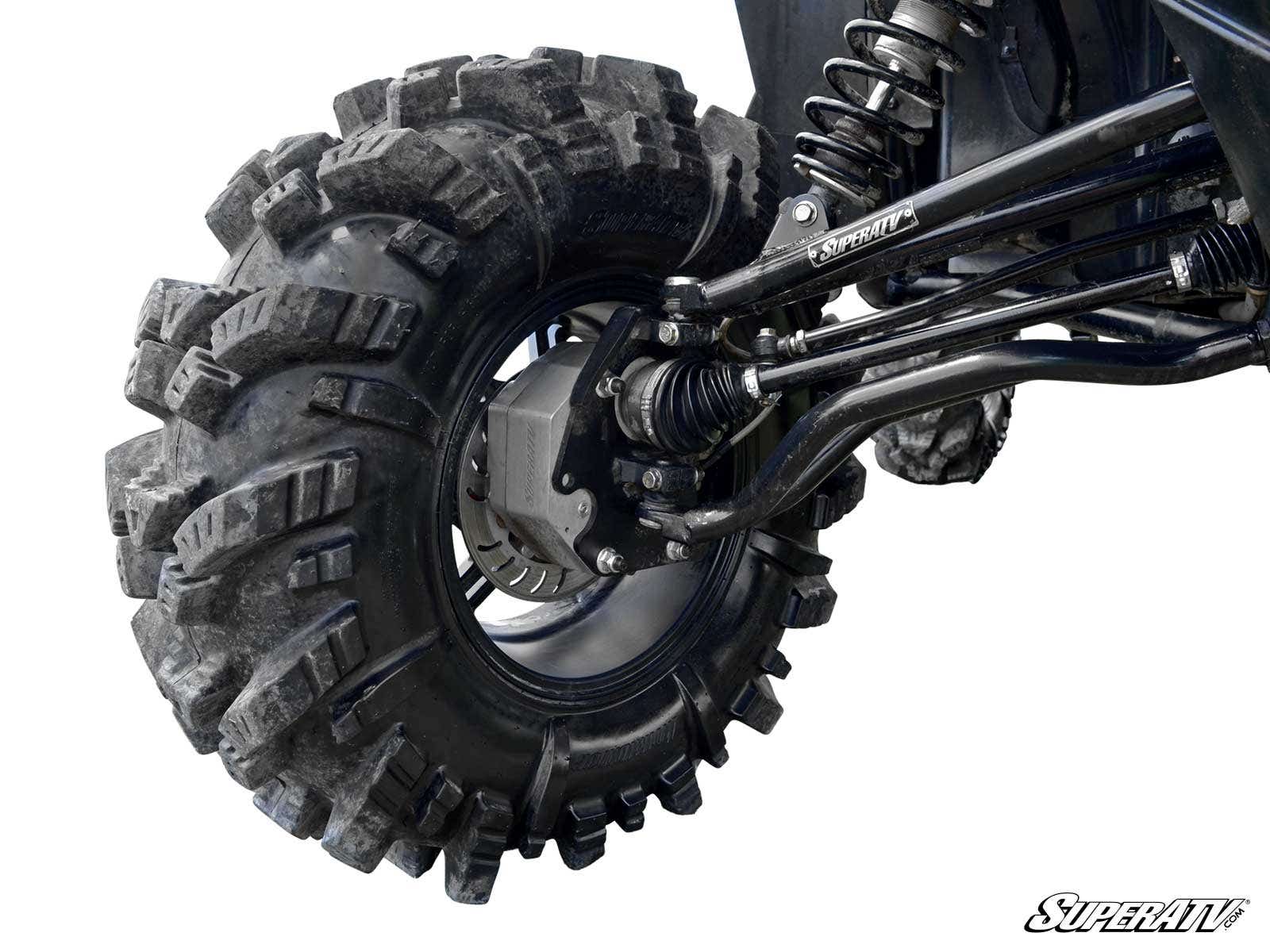

SuperATV’s GDP 6" Portal Gear Lift for the Polaris RZR XP 900 gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub, which means they maintain suspension geometry and reduce drivetrain stress. Customize by choosing between a 30% or 45% gear reduction and selecting a cast or billet aluminum housing. GDP portals are geared for all.

45% – Perfect for MudInstall big 6" portals with a 45% gear reduction to get clearance for huge tires and a massive boost in torque. It’ll turn your monster tires like they’re stock and take your RZR through the biggest, thickest mud holes you can find.

45% – Perfect for RocksA 6" portal box with a 45% gear reduction gives you tons of torque to crawl over rocks and boulders. With 6" of clearance, you can run bigger tires and clear nastier rock gardens without getting winched.

30% – Perfect for EverythingA 30% gear reduction lets you turn bigger tires and gives you the versatility to run mud, dominate trails and hills, and maintain high speed on the road.

Better GearsOur gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have the strength to withstand every ride.

Stronger Housings by Design

  • Available with billet or cast aluminum housing
  • Reinforced in all the right places
  • Built with better oil flow and gearing forces in mind
  • No gimmicks and no vents

Advanced Gaskets and Seals

  • Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout

Features

  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Fitment

  • Polaris RZR XP 900: 2011-2014
  • Polaris RZR XP 4 900: 2012-2014

Wheel Requirements:

  • 18" or larger wheel required
  • 18" wheels cannot exceed 4-1/2" backspacing
  • 20" and larger wheels cannot exceed 5" backspacing
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Polaris RZR XP 900 Portal Gear Reduction Recommendations

  • Up to 29" tires: 1.5" Forward Front A-Arms, recommended 6" portal gear reduction: 30%
  • 30" to 31" tires: 1.5" Forward Front A-Arms and 3-5" Lift Kit, recommended 6" portal gear reduction: 30%
  • 32" to 36" tires: 6" Lift Kit, recommended 6" portal gear reduction: 45%

Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.

Patent # 11,299,042
