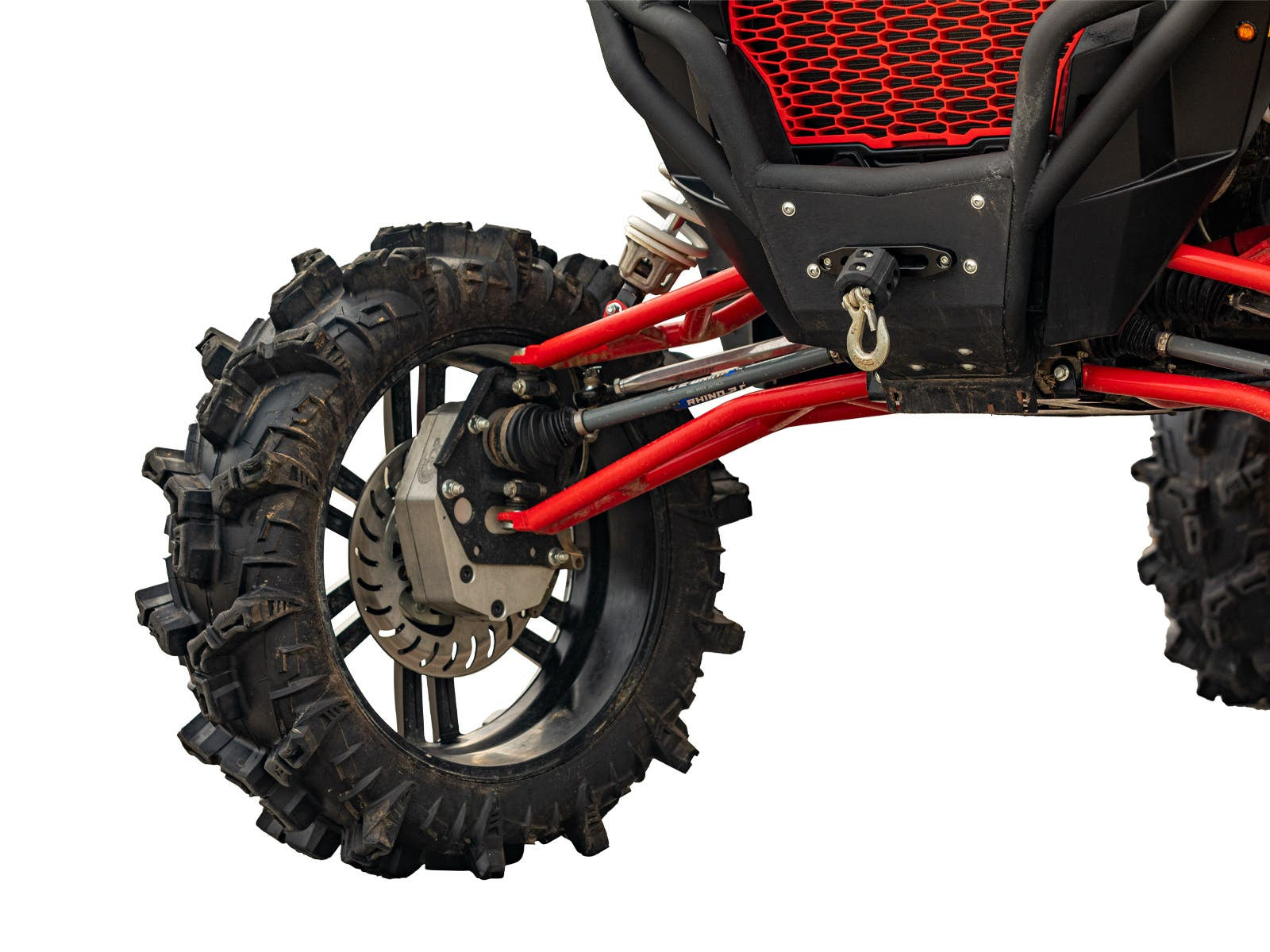

SuperATV Polaris RZR XP Turbo 6" Portal Gear Lift
SKU:
PGH6-1-58-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Overhaul your ride with GDP Portals
Unleash your RZR XP Turbo’s true potential with SuperATV’s GDP 6" Portal Gear Lift. Choose a 30%, 45%, or 60% gear reduction, with either dual idler or single idler gears. Built for riders who push hard in dunes, trails, and mud, these portals give you your torque back while helping reduce strain on your drivetrain.
Dual idlers for ultimate strength
Dual idler gear portals are built with 9310 steel alloy and precision CNC grinding for perfect gear mating. Designed for maximum strength and reliability, they deliver serious performance for demanding riding.
Premium construction and reduced drivetrain stress
Portal gear reduction is placed right in the hub, which helps reduce the load on your axles, prop shaft, differential, and transmission. Available with cast or billet aluminum housings, these portals also feature 5/16" backing plates made from advanced alloy steel for added strength.
Advanced sealing and bearing protection
These portals use Advanced Thermo-Tork® gaskets and O-rings, a sealed input gear, double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings to help maintain gear meshing and reduce oil leaks.
Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- (2) Carrier bearings
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
Max tire size recommendations for 6" portal gear lift
- Up to 34": Stock
- 35" to 36": 1.5" Forward Front A-Arms or 3" Lift Kit
- 37" to 39": 1.5" Forward Front A-Arms and 3" Lift Kit
- 40" to 46": 10" Lift Kit
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest that fit without rubbing; with minor trimming or a small amount of rub, larger tire sizes can be used. If you need help choosing the right gear reduction, use the portal gear reduction calculator.
Notes
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground 9310 alloy billet steel gears
- 1.5 in. diameter 4340 hardened steel drive shaft
- Universal hub fits all major bolt patterns
- Dual idler gear configuration adds a 1" front and rear offset, 2" total extension
- Patent # 11,299,042
- Patent # 11,318,787
Fitment
- Polaris RZR XP Turbo: 2016-2021
- Polaris RZR XP 4 Turbo: 2016-2021
Wheel requirements
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH6-1-58-301
Brand:
SuperATV
