SuperATV Polaris RZR XP Turbo S 6" Portal Gear Lift
SKU:
PGH6-1-75-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
GDP’s Polaris Turbo S Portals Are the Industry’s Best
Get a complete performance overhaul with SuperATV’s GDP 6" Portal Gear Lift for the Polaris RZR XP Turbo S. Customize your setup by choosing a 30%, 45%, or 60% gear reduction and selecting a cast or billet aluminum housing. You can also upgrade to a dual idler configuration for added strength.

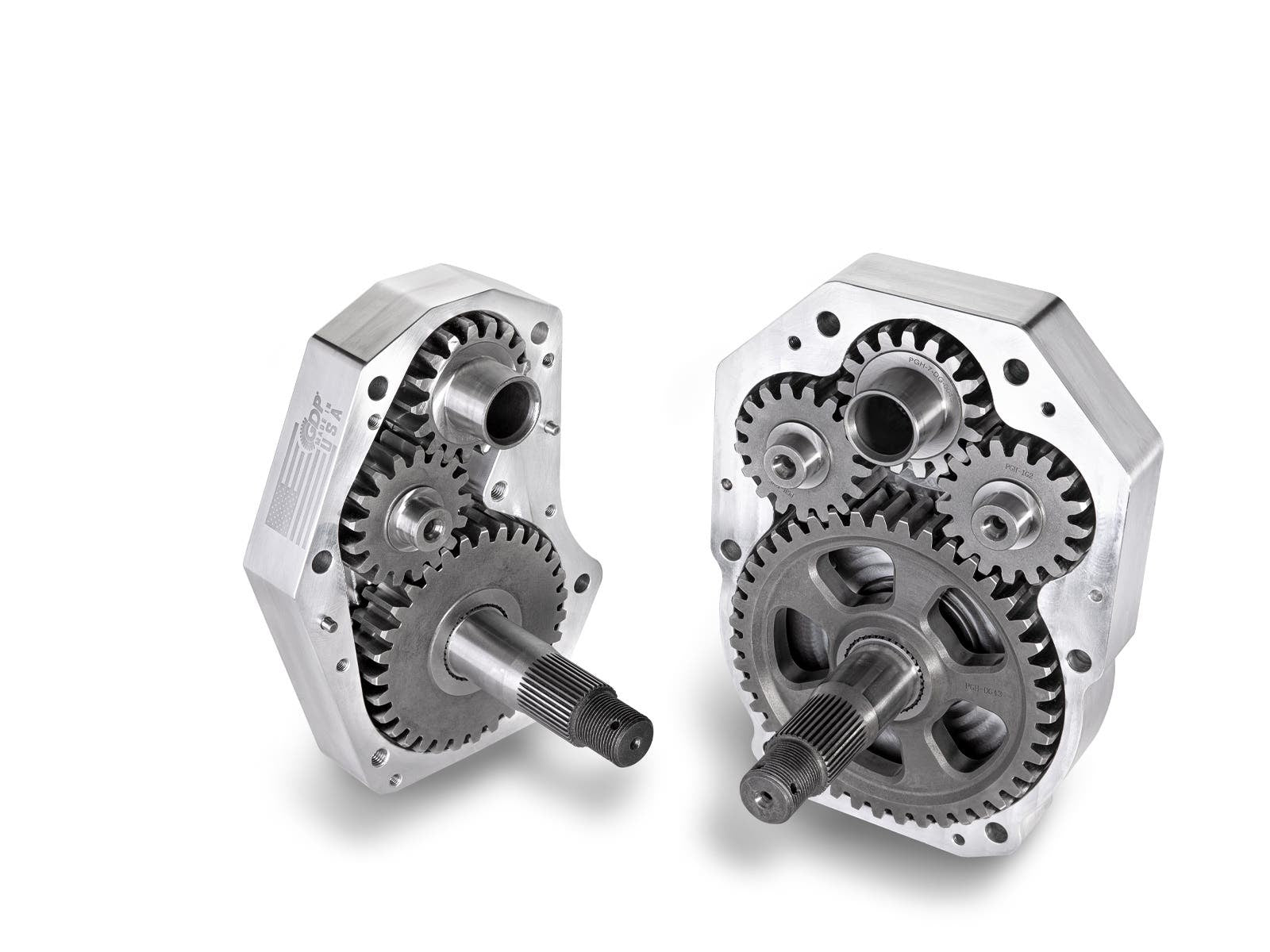

What is a Dual Idler?
A second idler gear inside the portal box spreads the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears mate perfectly, and the gears are made from 9310 steel alloy.
Different Gear Reductions for Different Ride Styles
Choose the reduction that fits your riding style. Go with 30% for fast trail riding, 45% for mud and rocks, or 60% for the maximum gear reduction when running massive tires.
Less Strain on Your Drivetrain
GDP portals provide gear reduction in the hub instead of the transmission, reducing wear and tear on your axles, differential, prop shaft, and transmission. They also maintain factory suspension geometry to help keep your CVs cool and happy.
Built for Strength
These portals are built for hard rides and big tires with billet housings and advanced 5/16" steel alloy backing plates. Reinforced housings are optimized for gear retention and oil flow. Advanced steel alloy backing plates are stronger than chromoly. There are no vents, and Portal Blood gear oil is available for added protection.
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings for excellent sealing
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset, 2" total extension
- Lighter than the competition
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Recommended Frame Support
SuperATV highly recommends running a frame stiffener with this 6" Portal Gear Lift. The stock frame is not designed for this kind of load, and a frame stiffener helps support monster tires with confidence.
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (4) Caliper adapter plates
- (2) Steel steering arms
- (2) Rear hub adapters
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (optional)
Portal Gear Reduction Recommendations
- Up to 38" tires: Stock suspension
- 40" tires: 1.5" forward A-arms
- 41" tires: 3" lift kit
- 43" tires: 1.5" forward A-arms and 3" lift kit
If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator. Max tire sizes are measured at full compression and full turn. The listed sizes are the largest that fit without rubbing; minor trimming or a small amount of rub may allow larger tires.
Fitment:
- Polaris RZR XP Turbo S : 2018-2021
- Polaris RZR XP Turbo S Velocity : 2019+
- Polaris RZR XP Turbo S 4 : 2019-2021
Wheel Requirements:
- 18" or larger wheel required
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-1-75-301
Brand:
SuperATV
