SuperATV Polaris Scrambler 4" Portal Gear Lift
SuperATV Polaris Scrambler 4" Portal Gear Lift
SuperATV Polaris Scrambler 4" Portal Gear Lift
SuperATV Polaris Scrambler 4" Portal Gear Lift
SuperATV Polaris Scrambler 4" Portal Gear Lift
SuperATV Polaris Scrambler 4" Portal Gear Lift
SuperATV

SuperATV Polaris Scrambler 4" Portal Gear Lift

SKU: PGH-1-21-151#SCR

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Do you have a lift kit?: No
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

Gen 3 Portals Are Geared for AllRide the way you want with SuperATV’s GDP 4" Portal Gear Lift for the Polaris Scrambler. This addition takes your quad from standard to outstanding as you unleash power you never knew you had. Choose from cast or billet aluminum housings, then pick your gear reduction. No matter how you ride, GDP portals bring out the best in your machine.

GDP—the Most Trusted Name in PortalsYou don’t have to take our word for it when we tell you GDP portals are the best portal gear lifts on the market. Thousands of riders across the country and beyond have put countless miles on these portals. More riders choose GDP portals over any other brand, and that speaks volumes when it comes to just how trail tested and customer trusted our portals are.

Perfect for MudTaking on mud with an ATV running GDP portals is a whole new ball game. You’ll experience power that you never thought possible as you cut through thick mud, and you’ll gain added ground clearance to help keep you from getting swamped.

A Gear Reduction That Protects Your DrivetrainPortals put the gear reduction right in the hub, helping keep your drivetrain from being placed under extra stress. That means your axles, differential, prop shaft, and transmission aren’t being abused while you focus on tearing it up.

about how tire size and gear reduction can unleash your machine’s potential.

Unmatched Gear MaterialThe gears are made from strong 9310 alloy steel and precision ground for a smooth, quiet ride.

Stronger Housings by DesignYou can choose cast aluminum or USA-made, CNC-machined 6061 billet aluminum housings. Both are reinforced for strength and reliability, with better oil flow and gearing forces in mind.

  • Reinforced in all the right places
  • Built with better oil flow and gearing forces in mind
  • No vents, because vents do more harm than good

Advanced Gaskets and Seals

  • Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout to help prevent oil leaks

Bearings That RockRoller bearings hold the idler gear, and the output bearing is a double-angular contact bearing designed to handle huge loads in any direction without premature wear.

Universal Hubs and Slotted RotorsPrecision-ground stainless steel slotted rotors help deliver braking power when you need it. Universal hubs fit the 4/156, 4/137, 4/115, and 4/110 bolt patterns, and the tapered output shaft provides a more secure lock to help keep hubs from wobbling or wearing over time.

4" Portal Gear Lift Includes:

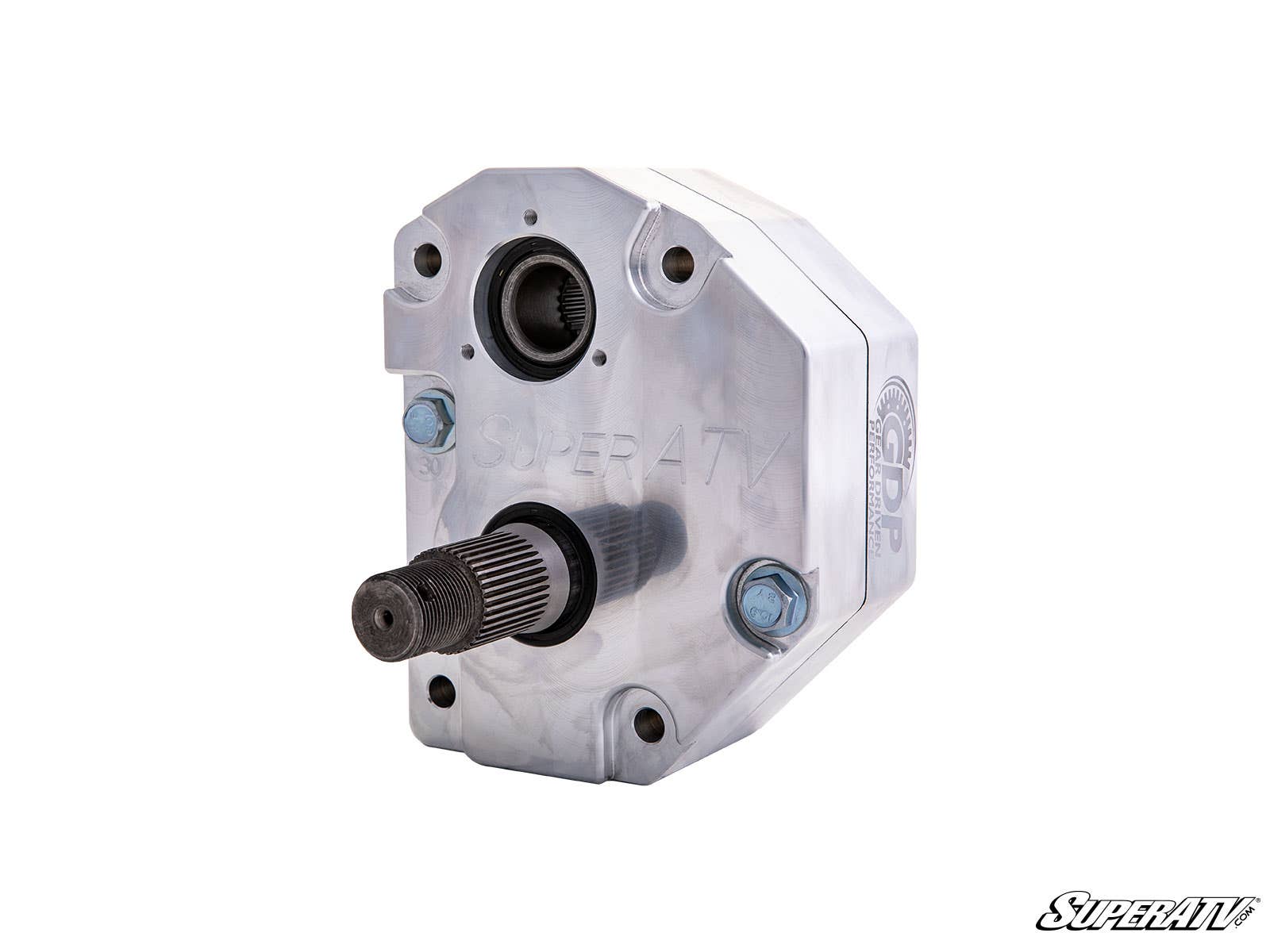

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (2) Steel steering arms
  • Extended brake lines
  • All required hardware, including recessed castle nut socket

Polaris Scrambler Portal Gear Reduction Recommendations

  • Up to 28" tire: Stock suspension, 15% reduction
  • 29.5" tire: 2" lift kit, 15% reduction
  • 30" to 38" tire: 6" lift kit, 15% reduction
  • Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.

Features:

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use advanced gaskets that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Weighs 194 lb. total, which is 50+ lb. lighter than the competition

Fitment:

  • Polaris Scrambler 850: 2013+
  • Polaris Scrambler 1000 XP: 2014+
  • Polaris Scrambler 1000 MD: 2015

Wheel Requirements:

  • 14" or larger wheel required
  • Wheels cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042
