SuperATV Polaris Sportsman XP 4" Portal Gear Lift
SKU:
PGH-1-21-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,941.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals Are Geared for All
Off-roading isn’t a one size fits all thing. With SuperATV’s GDP 4" Portal Gear Lift for your Polaris Sportsman XP, you can choose the housing material—cast or billet aluminum—and the gear reduction that matches your riding style. Choose 30% for maximum power or 15% for trail riding. Either way, GDP portals will change the way you look at riding.
GDP—the Most Trusted Name in Portals
Thousands of riders trust GDP portals because they’re trail proven and built to handle hard use. They’re a trusted choice for riders who want dependable performance.
Perfect for Mud
GDP portals add torque and ground clearance, helping you power through deep mud and bogs with more confidence.
A Gear Reduction That Protects Your Drivetrain
By placing the gear reduction in the hub, portal gear lifts reduce stress on critical components like your axles, differential, prop shaft, and transmission.
about how tire size and gear reduction can affect your machine’s performance.
Unmatched Gear Material
The gears are made from 9310 alloy steel and precision ground for smooth, quiet operation.
Stronger Housings by Design
Choose either cast aluminum or USA-made 6061 billet aluminum housings with a CNC-machined finish. Both are reinforced for strength and built with oil flow and gearing forces in mind, without vents.
- Reinforced in all the right places
- Built with better oil flow and gearing forces in mind
- No vents
The Strongest Portal Backing Plates You Can Get
The 5/16"-thick backing plates are made from a specialized steel alloy designed for ultra-high-force applications.
Advanced Gaskets and Seals
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
Bearings That Rock
Roller bearings hold the idler gear in place, and the output bearing is a double-angular contact bearing designed to handle heavy loads in any direction.
Universal Hubs and Slotted Rotors
Precision-ground stainless steel slotted rotors help with braking performance, and the universal hubs fit 4/156, 4/137, 4/115, and 4/110 bolt patterns. The tapered output shaft provides a more secure lock that resists wobble and wear.
Top-Rated Customer Service
If you need help choosing the right setup, SuperATV’s portal support team is available to help.
4" Portal Gear Lift Includes:

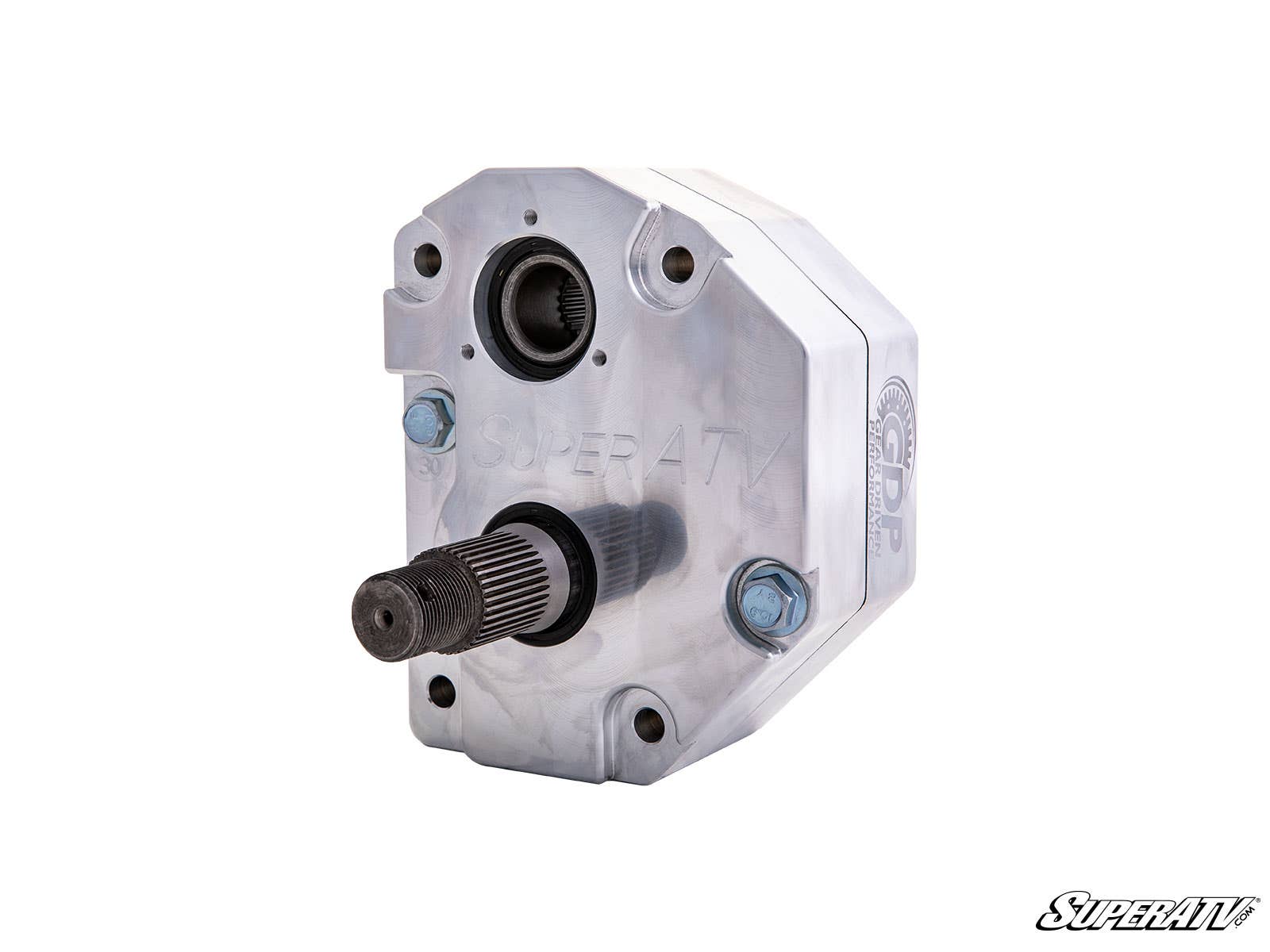

- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Polaris Sportsman XP Portal Gear Reduction Recommendations
- Up to 28" tires: stock suspension, 15% gear reduction
- 29.5" tires: 2" lift kit, 15% gear reduction
- 30" to 38" tires: 6" lift kit, 15% gear reduction
Gear reduction recommendations are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Call for more information.
Features:
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Weighs 194 lb. total
Fitment:
- Polaris Sportsman 1000 Touring: 2015+
- Polaris Sportsman 550: 2010-2014
- Polaris Sportsman 550 Touring EPS: 2010-2014
- Polaris Sportsman 850: 2016+
- Polaris Sportsman 850 MV: 2012-2014
- Polaris Sportsman 850 SP: 2015+
- Polaris Sportsman 850 Touring: 2015+
- Polaris Sportsman 850 Touring EPS: 2010-2014
- Polaris Sportsman 850 Touring SP: 2015-2016
- Polaris Sportsman Forest 1000: 2015
- Polaris Sportsman Forest 550: 2011-2014
- Polaris Sportsman Forest 850: 2011-2015
- Polaris Sportsman X2 550: 2010-2014
- Polaris Sportsman X2 850: 2011
- Polaris Sportsman XP 1000 High Lifter Edition: 2016+
- Polaris Sportsman XP 1000 XP: 2015+
- Polaris Sportsman XP 550: 2009-2014
- Polaris Sportsman XP 850: 2009+
- Polaris Sportsman XP 850 High Lifter Edition: 2016+
Wheel Requirements:
- 14" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042
Product Specs
SKU:
PGH-1-21-151
Brand:
SuperATV
