SuperATV Polaris Sportsman XP 6" Portal Gear Lift
SKU:
PGH6-1-21-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals are Geared for All

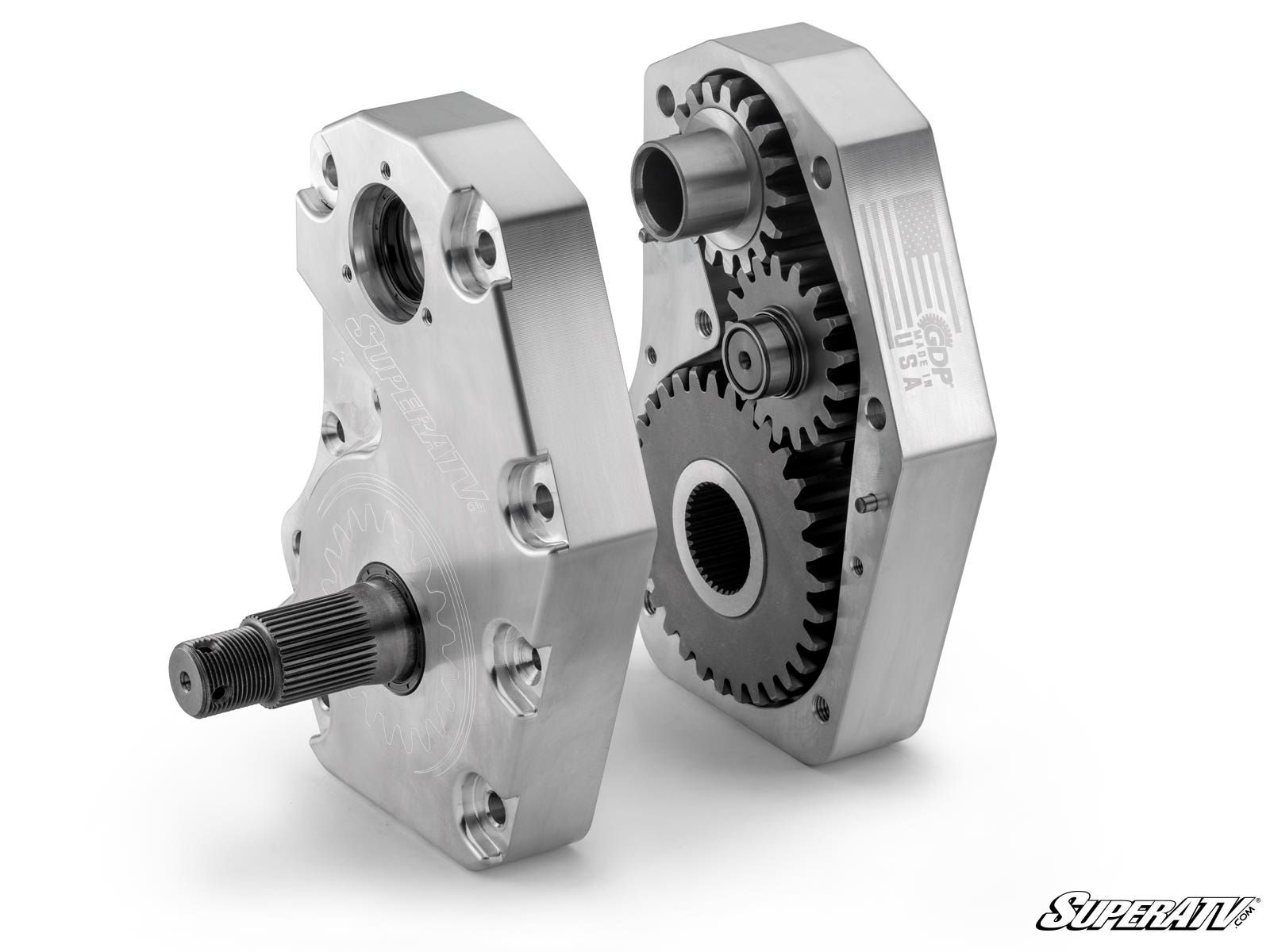

SuperATV’s GDP 6" Portal Gear Lift for the Polaris Sportsman XP gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub, which helps maintain suspension geometry and reduce drivetrain stress. Choose between a 30% or 45% gear reduction and select either a cast or billet aluminum housing.
30% gear reduction is ideal for a versatile setup that can handle mud, trails, hills, and road speed while turning bigger tires.
45% gear reduction is best for maximum torque, especially for mud and rock crawling with large tires.
Our gears are precision ground and made with 9310 billet steel alloy for strength, smooth operation, and quiet performance. The gear boxes are reinforced for durability, with improved oil flow and no vents. Both cast and billet housings use advanced oil-resistant gaskets, a sealed input gear, and a double-lipped output seal for strong sealing coverage.
Features:
- Available with billet or cast aluminum housing
- 9310 alloy billet steel precision ground gears are cool and quiet
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brake lines, and instructions
Polaris Sportsman XP Portal Gear Reduction Recommendations
- Up to 32" tire size: 2" lift kit, 30% gear reduction
- 33" to 35" tire size: 6" lift kit, 30% gear reduction
- 36" to 40" tire size: 6" lift kit, 45% gear reduction
Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.
Fitment:
- Polaris Sportsman XP 1000 XP : 2015+
- Polaris Sportsman XP 1000 High Lifter Edition : 2016+
- Polaris Sportsman Touring 1000 : 2015+
- Polaris Sportsman XP 550 : 2009-2014
- Polaris Sportsman XP 850 : 2009+
- Polaris Sportsman XP 850 High Lifter Edition : 2016+
- Polaris Sportsman 850 : 2016+
- Polaris Sportsman 550 : 2010-2014
- Polaris Sportsman 850 MV : 2012-2014
- Polaris Sportsman 850 SP : 2015+
- Polaris Sportsman 850 Touring : 2015
- Polaris Sportsman 850 Touring SP MD : 2015
- Polaris Sportsman 850 WV : 2014
- Polaris Sportsman Forest 1000 : 2015
- Polaris Sportsman Forest 550 : 2011-2014
- Polaris Sportsman Forest 850 : 2011-2015
- Polaris Sportsman Touring 550 EPS : 2010-2014
- Polaris Sportsman Touring 850 EPS : 2010-2014
- Polaris Sportsman Touring 850 SP : 2015-2016
- Polaris Sportsman X2 550 : 2010-2014
- Polaris Sportsman X2 850 : 2011
- Polaris Sportsman XP 850 HO EPS MD : 2015
- Polaris Sportsman XP Touring 550 EPS INTL : 2012
- Polaris Sportsman XP Touring 850 EPS INTL : 2012
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042
Product Specs
SKU:
PGH6-1-21-301
Brand:
SuperATV
