SuperATV Polaris Xpedition 4" Portal Gear Lift
SKU:
PGH-1-104-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$3,047.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

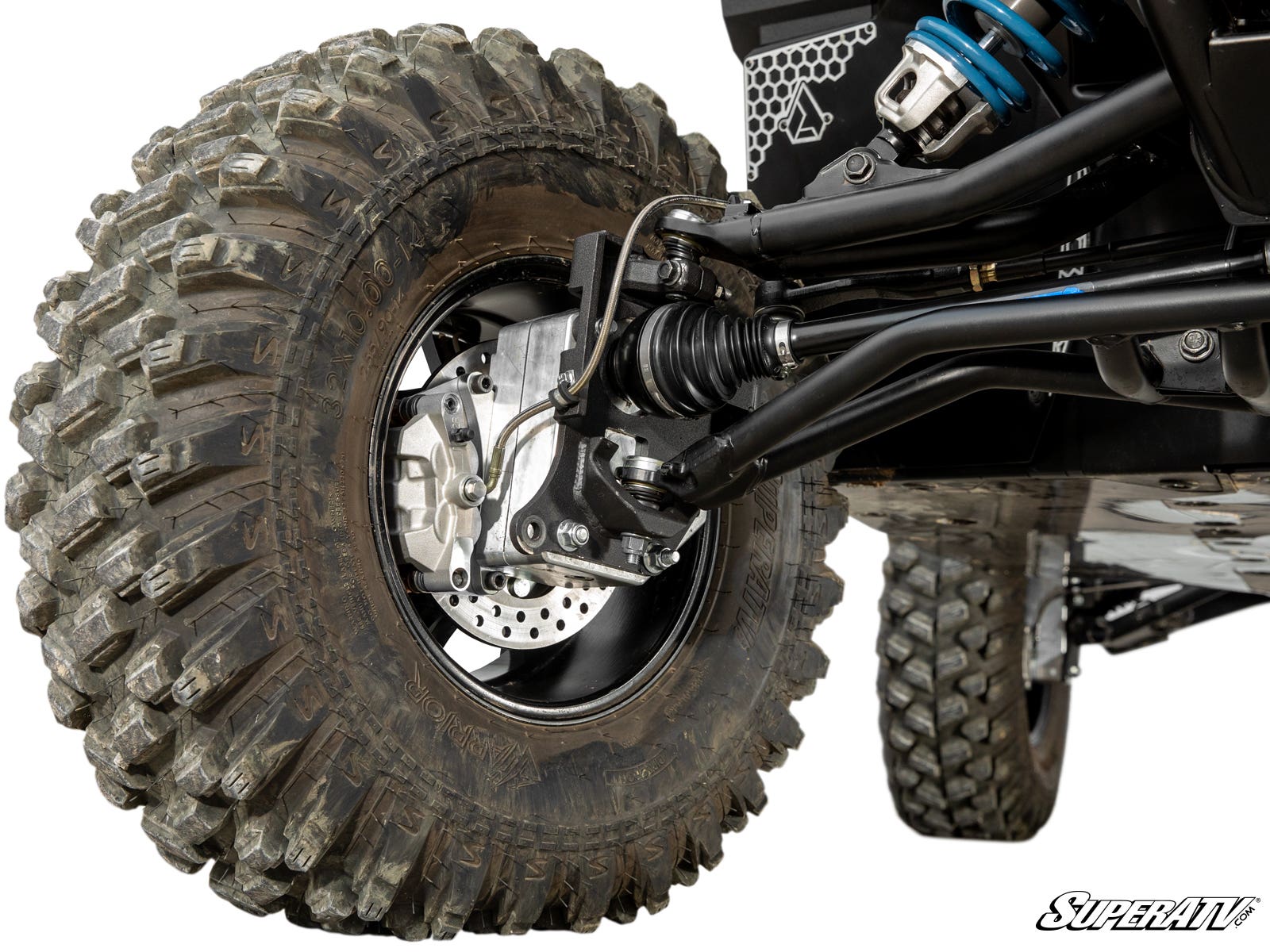

GDP Portals Are the Xpedition's Best Friend
More ground clearance, more torque, and bigger tires—they’re the perfect ingredients for better overlanding adventures. That’s why you need SuperATV’s 4" GDP Portal Gear Lift for your Polaris Xpedition. It gives you a 4" lift, your choice of a 15% or 30% gear reduction to boost torque, and room for 33" tires. You can also choose billet aluminum housings and dual idler gears for maximum strength.
- Gives you a 4" lift and a gear reduction in one package
- Choose a 15% or 30% gear reduction
- Maintains OEM suspension angles
- Choose dual idler gears for ultimate strength
What Is a Dual Idler?
With two idlers in the portal box, the load gets spread over two gears instead of one. Precision CNC grinding ensures the gears are perfectly mated, and they’re made from 9310 steel alloy for outstanding strength.
Ride How You Want with 15% and 30% Gear Reductions
The built-in gear reduction gives you more torque and acceleration. Choose 15% to maintain a high top speed with plenty of power, or go with 30% for extra confidence with bigger tires and heavy loads.
Portals Protect Your Drivetrain
Because the gear reduction is located in the hub at the end of your drivetrain, your axles, differential, prop shafts, and transmission all work less and can last longer.
The Strongest Portals You Can Get for Your Xpedition
Cast and 6061 billet aluminum housings are built for tough use and paired with steel backing plates for added strength.
- Housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- No gimmicks and no vents because vents do more harm than good
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to help prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Get Extra Reinforcement with a Frame Stiffener
Rough riding and added weight can wreak havoc on your machine’s frame if it’s not properly reinforced. SuperATV recommends adding a Frame Stiffener when installing your new portals.
4" Portal Gear Lift Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with spacers
- (2) Caliper mounting adapters
- (2) Steel steering arms
- Extended brake lines with parking brake
- All required hardware including recessed castle nut socket
Max Tire Sizes for 4" Portal Gear Lift
- 33" tire size with stock suspension
- If you need help figuring out which gear reduction is right for you, check out our .
- Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042
Features
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4" front and rear offset—1.5" total extension
- Lighter than the competition
Fitment
- Polaris Xpedition ADV NorthStar : 2024+
- Polaris Xpedition ADV Premium : 2024+
- Polaris Xpedition ADV Ultimate : 2024+
- Polaris Xpedition ADV 5 NorthStar : 2024+
- Polaris Xpedition ADV 5 Premium : 2024+
- Polaris Xpedition ADV 5 Ultimate : 2024+
- Polaris Xpedition XP NorthStar : 2024+
- Polaris Xpedition XP Premium : 2024+
- Polaris Xpedition XP Ultimate : 2024+
- Polaris Xpedition XP5 NorthStar : 2024+
- Polaris Xpedition XP5 Premium : 2024+
- Polaris Xpedition XP5 Ultimate : 2024+
Wheel Requirements:
- 14" or larger wheel required
- Cannot exceed 5" backspacing
- Not compatible with dual beadlock wheels
Product Specs
SKU:
PGH-1-104-151
Brand:
SuperATV
