SuperATV Textron Wildcat XX 4" Portal Gear Lift

SKU: PGH-11-76-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

Gen 3 Portals are Geared for All

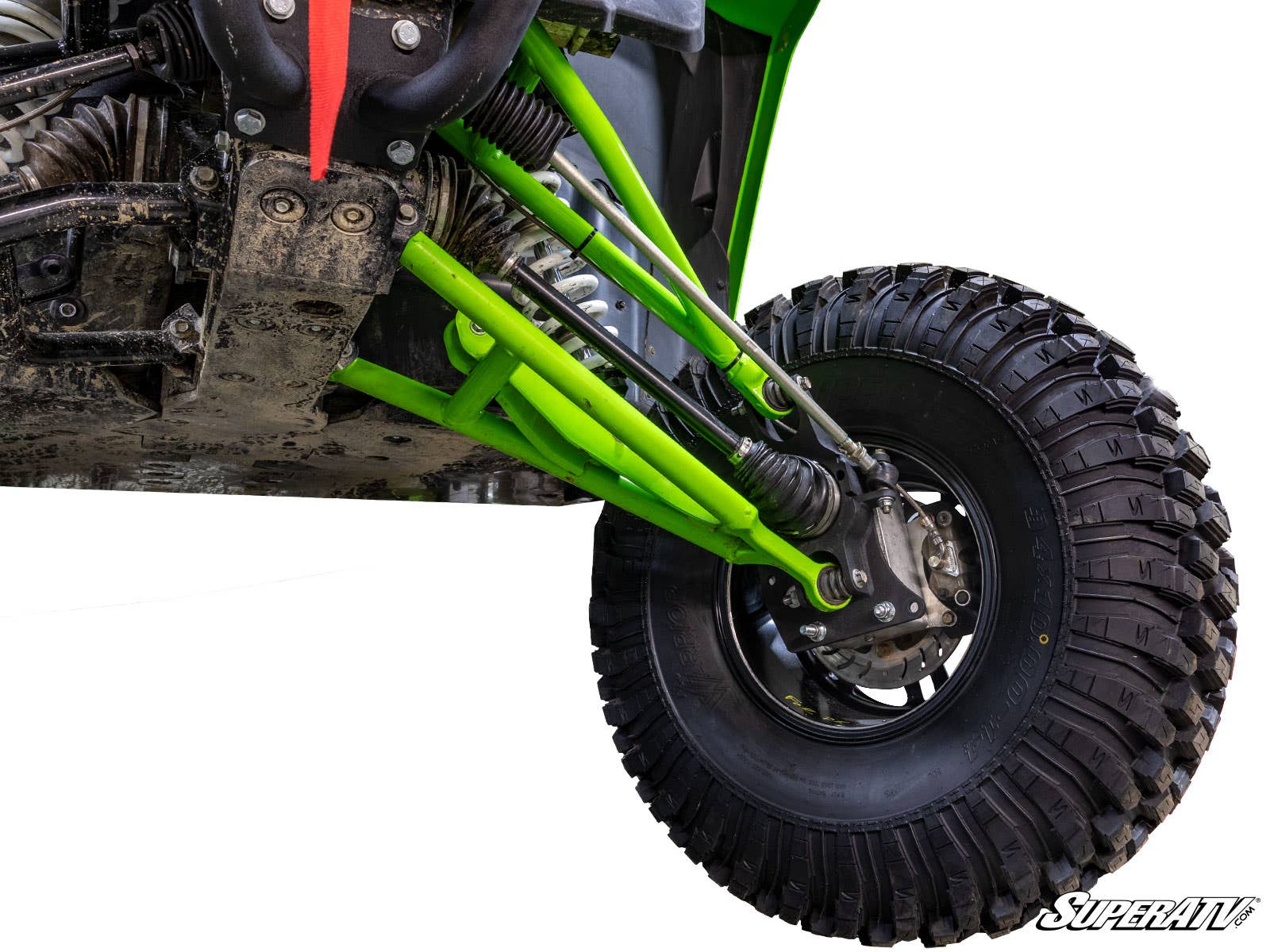

SuperATV’s GDP 4" Portal Gear Lift for the Textron Wildcat XX is designed to let you tailor your ride with either a 15% or 30% gear reduction and your choice of cast or billet housings.

Perfect for mud A 30% gear reduction adds a massive boost in torque for turning bigger tires through thick mud. You’ll still have enough speed for roads and trails between mud holes.

Perfect for rocks With 4" portals and a 30% gear reduction, you get the torque and extra clearance needed to crawl over rocks with more confidence.

Perfect for trails Choose 4" portals with a 15% gear reduction to keep high speed and tackle trails, hills, and dirt shelves while bringing out your machine’s true power.

about how tire size and gear reduction can unleash your machine’s potential.

Better gears Precision ground 9310 billet steel alloy gears deliver high strength and high-speed durability while running cool and quiet.

Stronger housings by design Choose cast housings or USA-made 6061 billet aluminum housings with a CNC-machined finish. Both are reinforced for strength and built with improved oil flow and gearing force in mind.

  • Reinforced in all the right places
  • Built for better oil flow and gearing forces
  • No gimmicks and no vents

Advanced gaskets and seals Whether you choose cast or billet, both housings use advanced oil-resistant gaskets, a sealed input gear, a double-lipped output seal, and full sealing coverage to help prevent leaks.

Top-rated customer service If you need help choosing the right setup, SuperATV’s dedicated portal support team is available to help.

Textron Wildcat XX portal gear reduction recommendations

  • Up to 35" tire size with stock suspension: 15%
  • Up to 35" tire size with a 2" lift kit: 15%

Gear reductions are general guidelines to maximize torque and help maintain factory top speed. A larger-than-recommended gear reduction will increase torque and reduce top speed.

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Fitment

  • Textron Wildcat XX: 2018+
  • Tracker XTR1000: 2020+

Wheel requirements

  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer

Patent #11,299,042
