SuperATV Textron Wildcat XX 6" Portal Gear Lift

SKU: PGH6-11-76-301

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,099.95
$3,099.95
$3,391.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 30%
Description

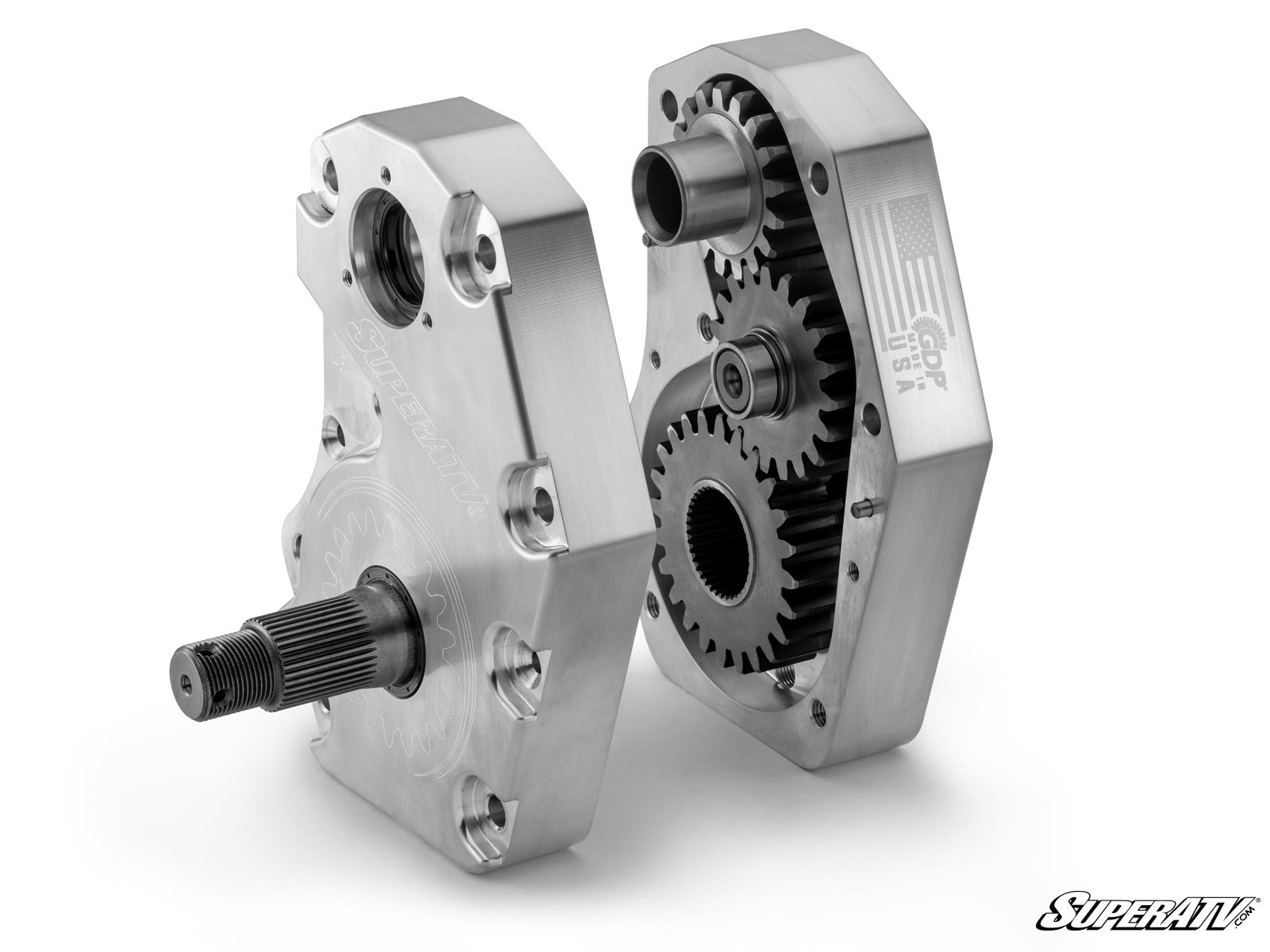

Gen 3 Portals are geared for all. SuperATV’s GDP 6" Portal Gear Lift for the Textron Wildcat XX gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub, which helps maintain suspension geometry and reduce drivetrain stress. Choose between a 30% or 45% gear reduction and select either a cast or billet aluminum housing.

45% gear reduction: Ideal for mud and rock riding. Run huge tires with a massive boost in torque for deep mud and hard rock crawling.

30% gear reduction: A versatile option for trail riding, hills, mud, and higher-speed driving while still turning bigger tires with confidence.

GDP gears are precision ground from 9310 billet steel alloy for high strength, cool operation, and quiet performance. The housings are reinforced in all the right places and designed for better oil flow and gearing forces, with no vents. Both cast and billet housings use advanced gaskets, a sealed input gear, and a double-lipped output seal for strong leak resistance.

  • Available with billet or cast aluminum housing
  • 9310 alloy billet steel precision ground gears are cool and quiet
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

about how tire size and gear reduction can unleash your machine's potential.

Textron Wildcat XX Portal Gear Reduction Recommendations

  • Up to 36" tire size with stock suspension: 30%
  • Up to 36" tire size with a 2" lift kit: 30%
  • Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.

Fitment:

  • Textron Wildcat XX : 2018+
  • Tracker XTR1000 : 2020+

Wheel requirements:

  • 18" or larger wheel required
  • 18" cannot exceed 4-1/2" backspacing
  • 20" cannot exceed 5" backspacing
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042

Fitment
Fitment

Product Specs

SKU:
PGH6-11-76-301
Brand:
SuperATV
