SuperATV Yamaha Viking 4" Portal Gear Lift

SKU: PGH-2-39-151#VK

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Do you need a frame stiffener?: No, I already have a frame stiffener.
Portal Setup: Cast Housing, 15% Gear Reduction, Single Idler
Description

GDP Portals Give You Unmatched Performance

SuperATV’s GDP 4" Portal Gear Lift for the Yamaha Viking gives you power and performance. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize for the kind of riding that you actually do. You can get a 30% gear reduction for big tires and challenging rides or a punchy 15% gear reduction for fast trails. Plus, you can upgrade to a stronger portal by opting for the dual idler configuration. Whatever you choose, GDP’s Yamaha Viking portals will give you industry-leading performance on every ride.

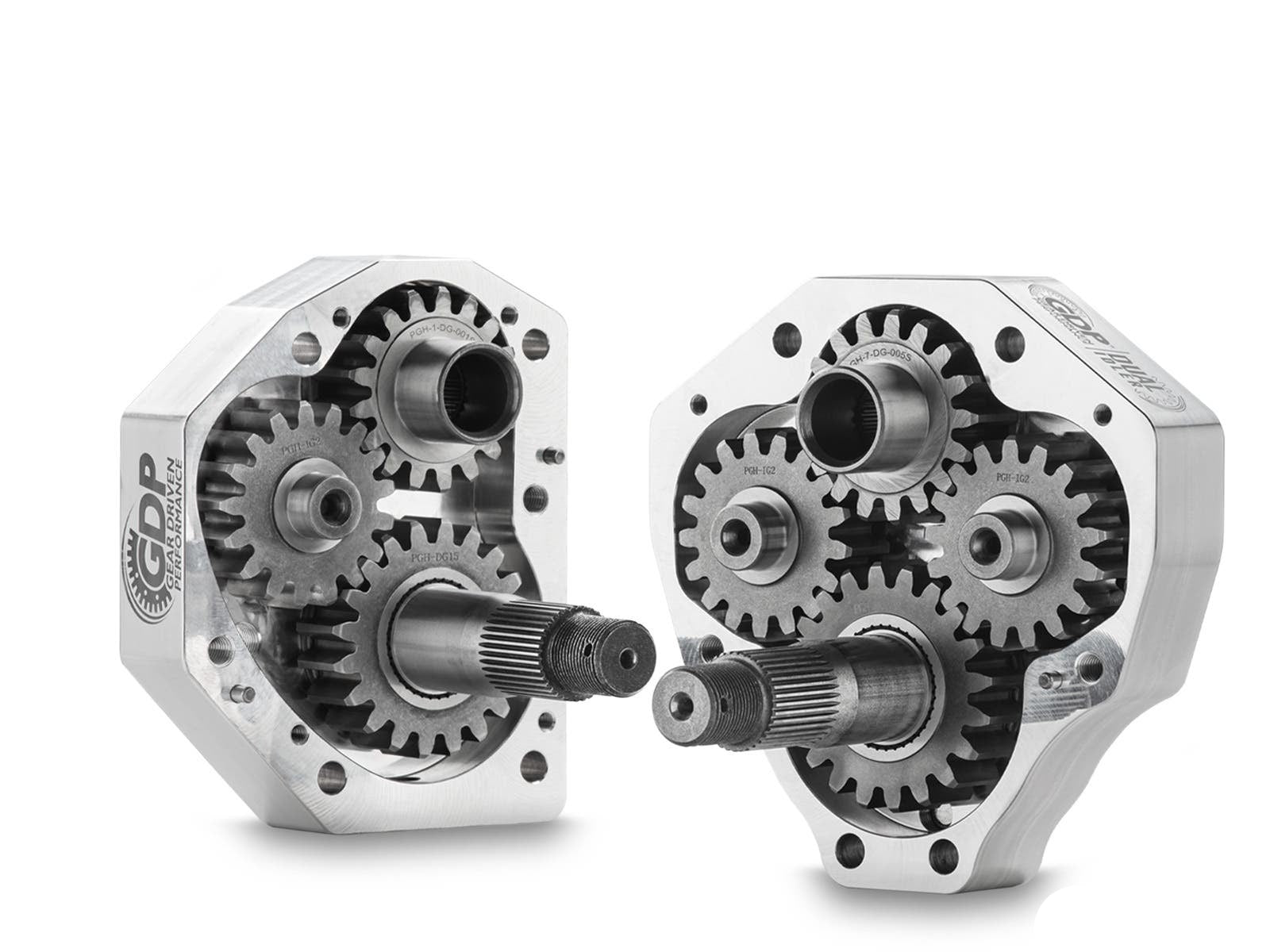

What Is a Dual Idler®?

After years of research and development, the dual idler gear portals use a second idler gear in the portal box to spread the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding helps ensure the gears are properly mated, and the gears are made from 9310 steel alloy.

Perfect for All Kinds of Rides

Whether you like rocks, trails, mud, or doing a good day’s work, a Yamaha Viking portal gear lift makes it better. A 30% gear reduction gives you plenty of punchy torque to turn big tires through mud or over rocks. A 15% gear reduction still boosts torque while preserving top-end speed for trails and road riding.

A Gear Reduction That Protects Your Drivetrain

Because the gear reduction is placed directly in the hub, your axles, differential, drive shaft, and transmission all work less and wear less with a portal gear lift.

Stronger Yamaha Viking Portals by Design

Choose cast or USA-made, CNC-machined 6061 billet aluminum housings. They’re supported by steel alloy backing plates for added strength. The housings are reinforced for gear retention and optimized for oil flow, and there are no vents.

  • Advanced steel alloy backing plates
  • Enhance with Portal Blood gear oil formulated for GDP Portals
  • No vents

Advanced Gaskets, Seals, and Bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • Double-angular contact output bearings to help prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Complete the Package with a Frame Stiffener

Yamaha Viking portals and monster tires can place additional stress on your machine’s frame. Consider adding a SuperATV Frame Stiffener when you check out.

4" Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (4) Caliper mounting plate shims
  • (2) Steel steering arms
  • Extended brake lines
  • All required hardware, including recessed castle nut socket
  • Frame stiffener (must select at checkout)

Max Tire Size Recommendations for 4" Portal Gear Lift

  • 23" — Stock
  • 24" — 2" Lift Kit
  • 29" — 1.5" Forward Offset A-Arms
  • 30" — 2" Lift Kit and 1.5" Forward Offset A-Arms
  • 34" — 4" Lift Kit

Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

If you need help figuring out which gear reduction is right for you, check out our

Fitment

  • Yamaha Viking : 2014+
  • Yamaha Viking EPS : 2014+
  • Yamaha Viking EPS Ranch Edition : 2018+
  • Yamaha Viking EPS SE : 2015+
  • Yamaha Viking VI : 2015+
  • Yamaha Viking VI EPS : 2015+
  • Yamaha Viking VI EPS Ranch Edition : 2016+
  • Yamaha Viking VI EPS SE : 2015-2016

Wheel Requirements:

  • 14" or larger wheel required
  • Wheels cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042Patent # 11,318,787
