SuperATV Yamaha Viking 6" Portal Gear Lift
SKU:
PGH6-2-39-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
GDP Portals Give You the Ultimate Ride
SuperATV’s GDP 6" Portal Gear Lift for your Yamaha Viking lets you choose a 30%, 45%, or 60% gear reduction, along with cast or billet aluminum housings. You can also upgrade to dual idlers for added strength. It gives you more ground clearance while changing your gear ratio for the way you ride.
Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition

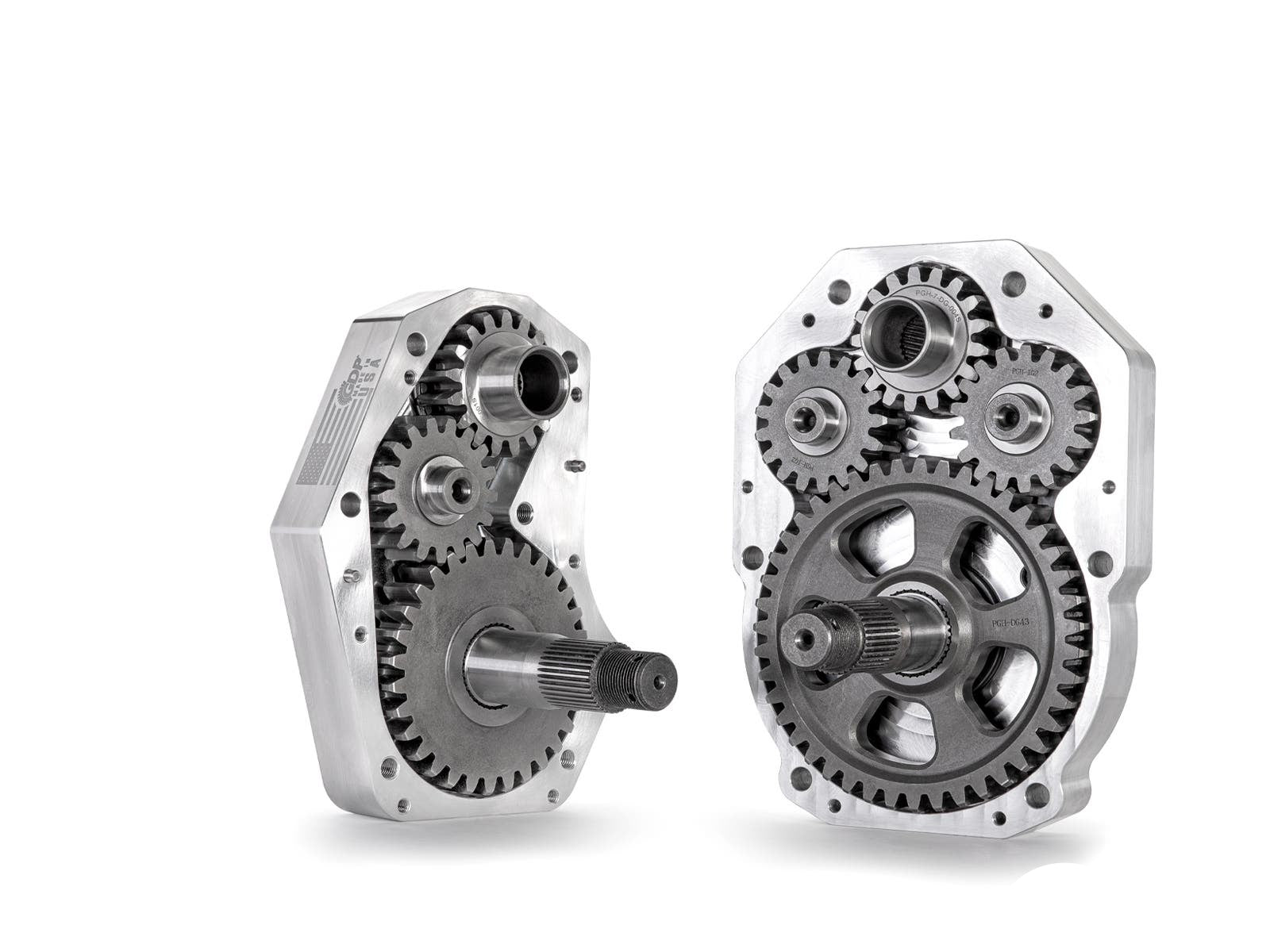

What is a Dual Idler®?
Dual idler gear portals spread the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding helps ensure the gears mesh properly, and the gears are made from 9310 steel alloy.
Ride Any Way You Want
For mud, the extra 6" of clearance gives room for massive tires, and the 45% or 60% gear reduction helps keep you from getting stuck. For trails and faster riding, the 30% gear reduction delivers plenty of torque while maintaining a higher top speed.
A Gear Reduction That Protects Your Drivetrain
The gear reduction is built into the hub, which helps reduce stress on your drivetrain and helps protect your prop shaft, axles, diff, and transmission from premature wear.
Stronger Housings by Design
Choose USA-made, CNC-machined billet aluminum housings or cast aluminum housings. Both are reinforced with 5/16" backing plates made from an advanced steel alloy.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (4) Caliper adapter plates
- (2) Steel steering arms
- (2) Aluminum hub adapters
- Extended brake lines
- Steering stop brackets
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations for 6" Portal Gear Lift
- 26" — Stock
- 27" — 2" Lift Kit
- 31" — High Clearance 1.5" Forward Offset A-Arms
- 32" — 2" Lift Kit and High Clearance 1.5" Forward Offset A-Arms
- 37" — 4" Lift Kit
If you need help figuring out which gear reduction is right for you, check out the .
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Fitment
- Yamaha Viking : 2014+
- Yamaha Viking EPS : 2014+
- Yamaha Viking EPS Ranch Edition : 2018+
- Yamaha Viking EPS SE : 2015+
- Yamaha Viking VI : 2015+
- Yamaha Viking VI EPS : 2015+
- Yamaha Viking VI EPS Ranch Edition : 2016+
- Yamaha Viking VI EPS SE : 2015-2016
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-2-39-301
Brand:
SuperATV
