SuperATV Yamaha Wolverine RMAX 1000 6" Portal Gear Lift
SKU:
PGH6-2-120-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals Are Geared for All

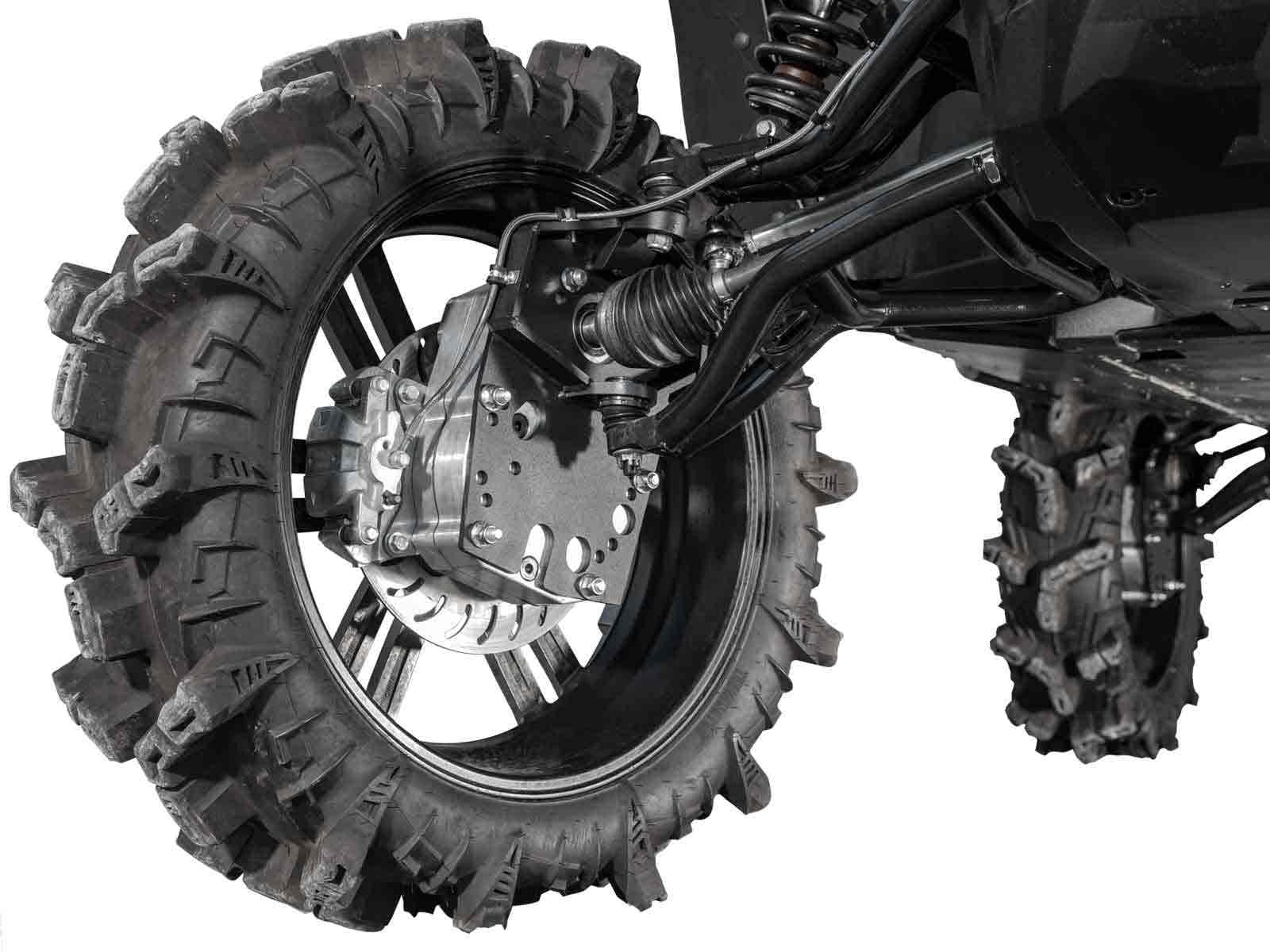

Take your Yamaha Wolverine RMAX 1000 to the next level with a SuperATV GDP 6" Portal Gear Lift. You’ll get extra clearance, room for bigger tires, and a 30, 45, or 60% gear reduction with the option to add a dual idler.
What Is a Dual Idler®? By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Precision CNC grinding ensures the gears mate perfectly, and they’re made from 9310 steel alloy for maximum strength.
Perfect for Any Rider A 6" lift gives you room to run monster tires, and the gear reduction transforms your ride. Choose a 30% reduction to maintain top-end speed with strong low-end power, or go with a 45% reduction for mud and serious torque. Portal gear reduction puts the reduction directly in the hub, helping reduce stress on your axles, differential, prop shaft, and transmission.
Built for Strength and Reliability These portals use precision-ground 9310 alloy steel gears, 5/16" advanced alloy backing plates, and reinforced housings optimized for gear retention and oil flow. They also feature advanced gaskets and O-rings, a sealed input gear, double-lipped output seal, and double-angular contact output bearings for long-lasting performance.
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets or O-rings
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations
- 2021-2024: 34" max tire size with stock suspension; 36" with 1.5" Forward Offset A-Arms
- 2025+: 34" max tire size with stock suspension
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator.
Wheel Requirements:
- 18" or larger wheel required
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Fitment:
- Yamaha Wolverine RMAX 2 : 2021-2024
- Yamaha Wolverine RMAX 2 1000 Limited: 2025+
- Yamaha Wolverine RMAX 2 1000 R-Spec: 2025+
- Yamaha Wolverine RMAX 2 1000 Sport: 2025+
- Yamaha Wolverine RMAX 2 1000 XT-R: 2025+
- Yamaha Wolverine RMAX 4 : 2021-2024
- Yamaha Wolverine RMAX 4 1000 Limited: 2025+
- Yamaha Wolverine RMAX 4 1000 XT-R: 2025+
- Yamaha Wolverine RMAX 4 1000 Compact Limited: 2025+
- Yamaha Wolverine RMAX 4 1000 Compact XT-R: 2025+
- Yamaha Wolverine RMAX 4 1000 Compact R-Spec: 2025+
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-2-120-301
Brand:
SuperATV
