SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Produces 12,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and steel wire rope this winch has it all.
Features:
- 12,000 lbs. capacity
- 6.0 HP sealed motor
- Relocatable die-cast aluminum control box
- 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight (2277R Wireless Remote Upgrade Kit available)
- Ergonomic pull-and turn clutch handle
- 3-stage planetary gearing with 231:1 ratio
- Patented drum light
- 5/8 in. x 85 ft. wire rope
- Drum diameter measures 2.5 in.
- Heavy duty clevis winch hook
- Stainless steel roller fairlead
- 100% full load holding automatic mechanical brake
- IP68-rated waterproof and dustproof
- Durable metallic graphite powder coat finish
Specifications:
- Brake System: 100% Full-load holding automatic mechanical brake
- Clutch: Pull and turn clutch handle
- Color: Graphite
- Control Box: Relocatable Die-Cast Aluminum
- Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
- Fairlead: Stainless Steel 4-Way Roller
- Finish: Powder Coated
- Gear Ratio: 231:1
- Gear System: 3-stage planetary
- Horsepower: 6.0
- IP Rating: IP68 Waterproof and Dustproof
- Package Length: 12 in.
- Line Speed: 68 Amps Motor Draw/23.4 FPM (7.13 MPM)
- Material: Steel
- Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
- Rated Single Line Pull (Lbs): 12000
- Remote Control: 12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
- Rope Length: 3/8 in x 85 ft (9.5mm x 26m)
- Rope Material: Steel Wire
- Task Lighting: Patented drum light
- Voltage: 12V DC
- Package Weight: 90 lbs.
- Winch Hook: Heavy-Duty, Clevis Pinned Latched
- Winch Model: SX Series

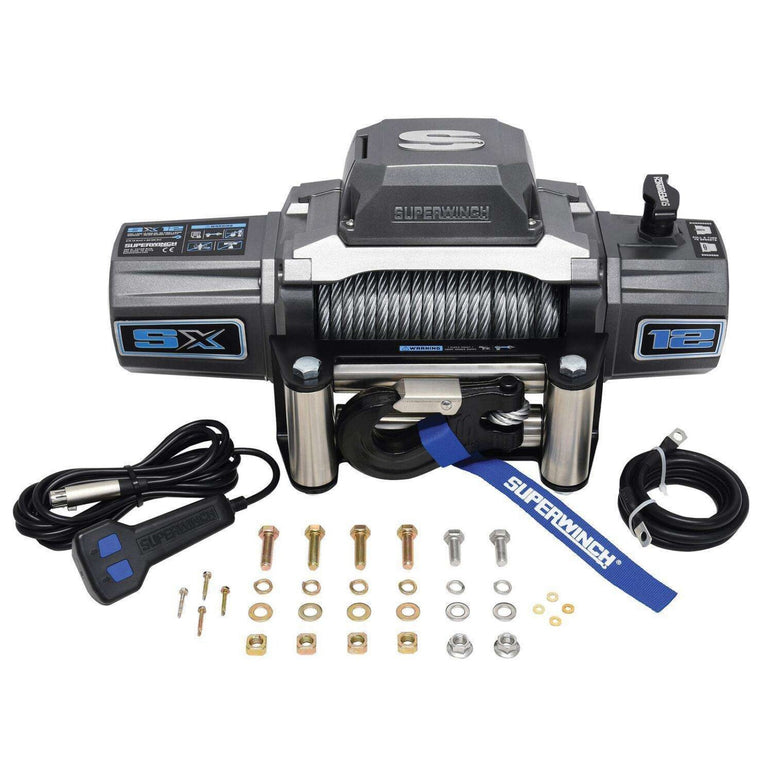

Fitment:
- Superwinch SX12 Series Winch Kit
- All Mounting Hardware
Note:
- Limited Lifetime Mechanical/7 Year Limited Electrical Warranty
