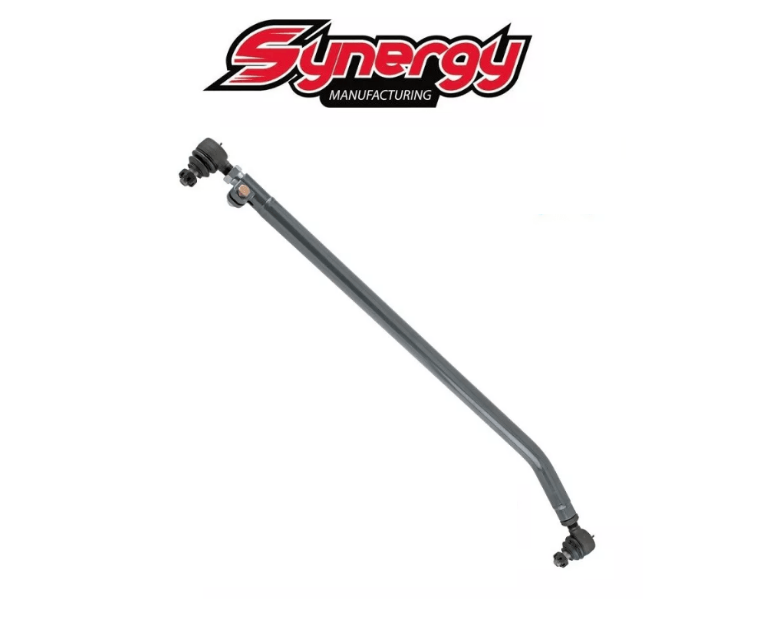

Synergy Mfg Heavy Duty Flipped High Steer Drag Link For 07-18 Jeep Wrangler JK

This heavy-duty drag link is compatible with all JK Wranglers, including those with aftermarket axle housings. The design features larger tubing for increased strength and improved steering feel, offering a more direct connection on the road or trail. Equipped with Synergy's Metal on Metal Tie Rod Ends and a single-plane tie rod end for the pitman arm side, it eliminates drag link flop while enhancing durability. An included drag link flip adapter supports easy high-steer conversion without extra purchases.

This drag link replaces part number 8001 and is designed for use in the stock location on lift heights up to 3 inches. For lift heights between 3-6 inches, the drag link should be flipped for a high-steer setup, relocating it to the top of the steering knuckle

A high-steer setup also requires a raised front axle side track bar relocation bracket (e.g., Synergy 8055, 8012-13, or 8009-01) and ideally a similar rear axle track bar adjustment

Features:

• Heavy-duty tubing provides enhanced steering strength

• Synergy Metal on Metal Tie Rod Ends with grease fittings

• Single-plane design for pitman arm eliminates drag link flop

• Includes flip adapter for easy high-steer conversion

• Abrasion-resistant powder coat finish for durability

Fitment:

• 2007-2018 Jeep Wrangler JK 2 Door
• 2007-2018 Jeep Wrangler Unlimited JK 4 Door


Included:

• (1) Rod End Double Adjuster Sleeve (3622-07-18-PL)

• (1) Pinch Bolt Hardware

• (1) Single Plane Tie Rod End (4139-L) (Pitman arm side)

• (1) Tie Rod End (4131-L) (Knuckle side)

• (1) Flip Adapter (8000-02)



Note:

• This setup is compatible with wheels 16 inches or larger, with a maximum of 4-3/4 inches backspacing (or factory wheels with spacers); 4-1/2 inches backspacing is recommended.
