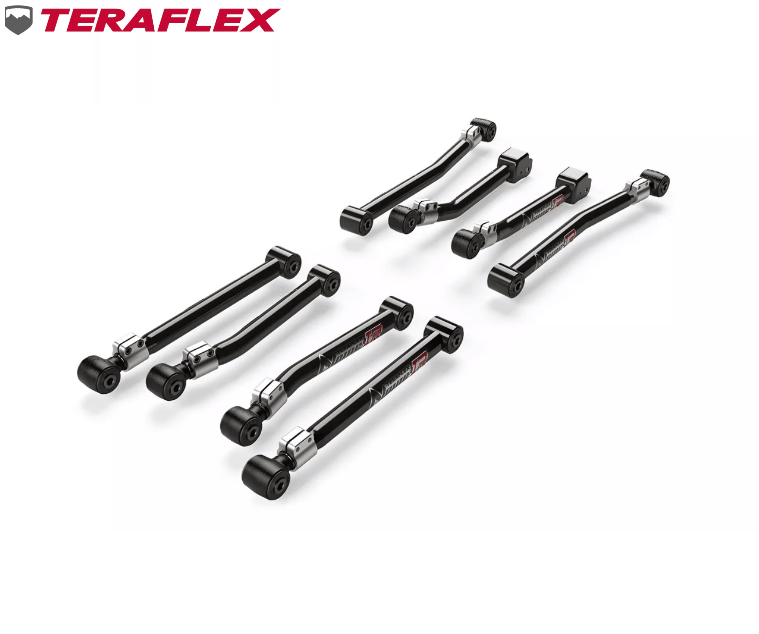

TeraFlex Alpine IR Upper & Lower Control Arms 0-4.5" Lift 18-24 Jeep Wrangler
SKU:
1416510
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,159.99
- $2,159.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
TeraFlex JL/JLU: Alpine IR Control Arms provide complete alignment adjustability for maximum performance on JL/JLU Wrangler models with 0-4.5” lifts. Uses factory control arm brackets. Includes our innovative IR (Independent Rotation) Bushings. Can be added to any existing suspension lift.
Features:
- Durable 42mm x 4mm wall DOM (Drawn Over Mandrel) tube provides maximum strength
- Adjustable Alpine IR Control Arms optimize caster angle and tune anti-squat geometry for proper suspension alignment
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full-range of movement will not restrict articulation or flex off-road
- Innovative, maintenance-free, IR (Independent Rotation) Bushings provide unrestricted rotation and flex as well as excellent NVH damping and ride quality characteristics
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- TeraFlex Lifetime Warranty against defects
Control Arm Specs:
-
JL/JLU Alpine IR Control Arm Kit - Front Upper Adjustable - (# 1416530):
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 20.185”
• Min. Length = 20”
• Max. Length = 21”
• Both Ends = 14mm Bolt -
JL/JLU: Alpine IR Control Arm Kit - Front Lower Adjustable - (# 1416550):
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length: 24”
• Min. Length: 24”
• Max. Length: 25.25”
• Both Ends: 16mm Bolt -
JL/JLU: Alpine IR Control Arm Kit - Rear Upper Adjustable - (# 1416570):
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 17.425”
• Min. Length = 17-3/8”
• Max. Length = 18-1/2”
• Both Ends = 14mm Bolt -
JL/JLU: Alpine IR Control Arm Kit - Rear Lower Adjustable - (# 1416580)
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 19-3/4”
• Min. Length = 19-13/16”
• Max. Length = 21-1/16”
• Both Ends = 14mm Bolt
Fitment:
- 2018-2024 Jeep Wrangler JL 2 Door
- 2018-2024 Jeep Wrangler JLU Unlimited 4 Door
- (2) Alpine IR Front Upper Adjustable Control Arms
- (2) Alpine IR Front Lower Adjustable Control Arms
- (2) Alpine IR Rear Upper Adjustable Control Arms
- (2) Alpine IR Rear Lower Adjustable Control Arms
Note:
- 3 Year Warranty
Product Specs
SKU:
1416510
Brand:
Teraflex
