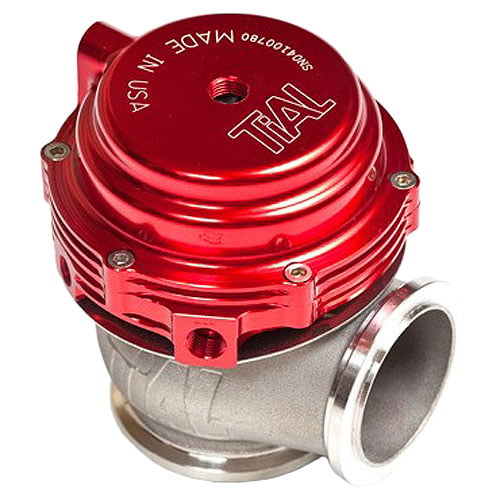

TiALSport MVS Red 38mm All Spring Wastegate w/ Band Clamp Set - Universal

SKU: 002955
$354.95
$354.95
$389.95

Free Shipping

Free ground shipping on all orders over $100
The MVS 38mm Wastegate is much more compact than its F38 predecessor - standing only 3.7” in height. The v-flanged design allows for significantly more flexibility for fabrication and installation and is the highest flowing 38mm or 40mm wastegate on the market.


Features:
  • High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs
  • High temperature silicone reinforced actuator diaphragm
  • Stainless Steel actuator spring gives consistent pressure at high temperature
  • Stainless Steel is used for the valve seat, and valve bushing
  • All Stainless Steel hardware
  • Mating weld flanges are 304L
  • 3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports
  • Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall
  • V-Band inlet and outlet make install easy, flanges and clamps are in the box
  • Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions
Fitment:
  • Universal
Included:
  • Red MVS Wastegate Assembly
  • Inlet V-band Clamp & Flange
  • Outlet V-Band Clamp & Flange
  • CNC machined air and coolant fittings
  • Plugs for unused air ports
  • All wastegate springs
Note:
  • Not For Sale Or Street Use In CA & CARB States

Product Specs

SKU:
002955
Brand:
TiALSport
Prop 65
