Turbosmart GenV Black 40mm Turbocharger Anit-Lag Valve ALV40 - Universal

Turbosmart GenV Black 40mm Turbocharger Anit-Lag Valve ALV40 - Universal

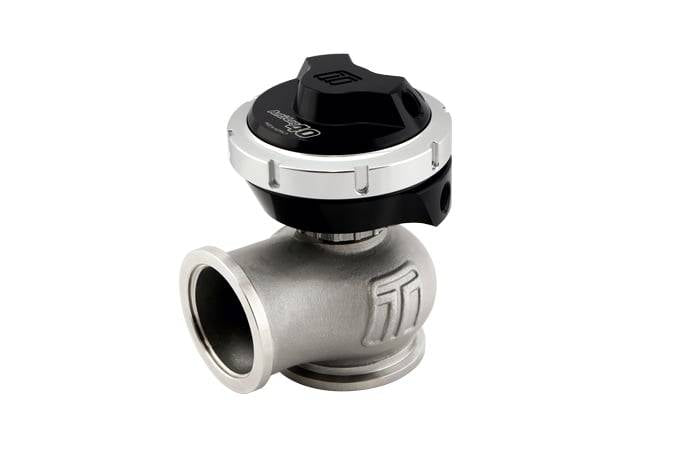

The all-new addition to the Turbosmart line-up is the fresh air ALV40 (Anti-Lag Valve) for motorsport applications. Featuring a 40mm valve diameter and a purpose designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication. The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods. The ALV is a sealed twin chamber design with the top port being the primary control port, the spring is designed to open under vacuum conditions to allow for the air to bypass into the exhaust manifold, the lower chamber for twin port control methods, to control the valve irrespective of manifold pressure and shaft seal allows for leak proof operation.

Features:

• Class Leading, Thermal Performance
• Class Leading, CFD & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps
• User Adjustable Actuator Position
• Modular Design for Actuator Interchangeability

Includes:

• Turbosmart GenV Anti lag Valve
• Valve Seat
• Inlet & Outlet V-band Clamp
• Inlet Hose Adapter 1-1/2" OD
• Inlet Weld Flange 1-1/2" OD
• C Spanner / Collar Tool
• Inlet O-ring
• Turbosmart Decal
