Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra
Wilwood

Wilwood Forged DPHA Front Caliper Rotor Kit For 86-19 Honda Civic/Acura Integra

SKU: 140-12996-DR

SELECT FITMENT

See If This Product Fits Your Vehicle

$690.65
$690.65

Free Shipping

Free ground shipping on all orders over $99
Description

Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.



Features:

  • Direct bolt-on for Honda/Acura with 262mm rotors
  • Four stainless steel pistons for balanced pad loading
  • Compatible with OE brake hoses and factory spindles
  • High-strength forged billet body for superior clamping
  • Available in black or red high-gloss, brake fluid resistant
  • Works seamlessly with OE master cylinder and ABS systems

Caliper Specifications:

  • Left Hand - Part No: 120-12949-RD
  • Right Hand - Part No: 120-12949-RD
  • Type: Forged DPHA
  • Finish Color: Red Powder Coat
  • Piston Count: 4
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.62
  • Piston Area (In²): 4.12
  • Piston Type: Stainless
  • Mount Type: Lug
  • Brake Pad Plate: 7812
  • Brake Pad Area (In²): 6.36
  • Brake Pad Volume (In³): 2.1
  • Pad Compound: BP-10

Rotors Specifications:

  • Left Hand - Part No: 160-12839-BK
  • Right Hand - Part No: 160-12838-BK
  • Type: SRP Drilled Rotor
  • Style: SRP Drilled & Slotted
  • Surface Finish: Black Electro Coat
  • Material: Iron
  • Outside Diameter (in): 10.32
  • Width (in): 0.83
  • Vane Count: Vented
  • Design Type: SRP-BLK
  • Bedded: No
  • Dynamically Balanced: No

Fitment:

  • 1990-1996 Acura Integra All
  • 1997-2001 Acura Integra All, Except Type-R
  • 1986-1990 Acura Legend All
  • 1989 Honda Accord LXI
  • 1988 Honda Accord LXI / SEI
  • 1989 Honda Accord SEI
  • 1996-2000 Honda Civic Coupe EX
  • 1993-1995 Honda Civic Coupe EX AT
  • 1993-1995 Honda Civic Coupe EX Manual
  • 1994-1995 Honda Civic Coupe EX w/ Rear Disc
  • 1999-2000 Honda Civic Coupe SI
  • 2006-2012 Honda Civic DX
  • 2005 Honda Civic DX / HX / VP Models
  • 2006-2012 Honda Civic EX
  • 2004-2005 Honda Civic EX / GX / LX
  • 2001-2003 Honda Civic EX / GX Models
  • 2006-2012 Honda Civic GX
  • 1994-1995 Honda Civic Hatchback SI
  • 2013-2015 Honda Civic HF
  • 2006-2015 Honda Civic Hybrid
  • 2013-2015 Honda Civic Hybrid-L
  • 2006-2012 Honda Civic LX
  • 2013-2015 Honda Civic LX Manual
  • 2015 Honda Civic SE Manual
  • 1990-2000 Honda Civic Sedan EX
  • 1992-1995 Honda Civic Sedan EX w/ Rear Disc
  • 1996 Honda Civic Sedan LX
  • 1994-1995 Honda Civic Sedan LX w/ Auto
  • 1994-1995 Honda Civic Sedan LX w/ Manual
  • 2002-2003 Honda Civic Si / SiR
  • 2007-2013 Honda Fit Base
  • 2008-2013 Honda Fit DX
  • 2014-2017 Honda Fit DX
  • 2018-2019 Honda Fit DX
  • 2012 Honda Fit DX-A
  • 2012-2013 Honda Fit EX
  • 2014-2017 Honda Fit EX
  • 2018-2019 Honda Fit EX
  • 2015-2017 Honda Fit EX-L
  • 2018-2019 Honda Fit EX-L
  • 2008-2013 Honda Fit LX
  • 2014-2017 Honda Fit LX
  • 2018-2019 Honda Fit LX
  • 2017 Honda Fit SE
  • 2007-2013 Honda Fit Sport
  • 2014 Honda Fit Sport
  • 2018-2019 Honda Fit Sport
  • 2011-2014 Honda Insight Base
  • 2010-2014 Honda Insight EX
  • 2010-2014 Honda Insight LX
  • 1989-1991 Honda Prelude Si / SE
  • 1988 Honda Prelude Si / SE Late Model

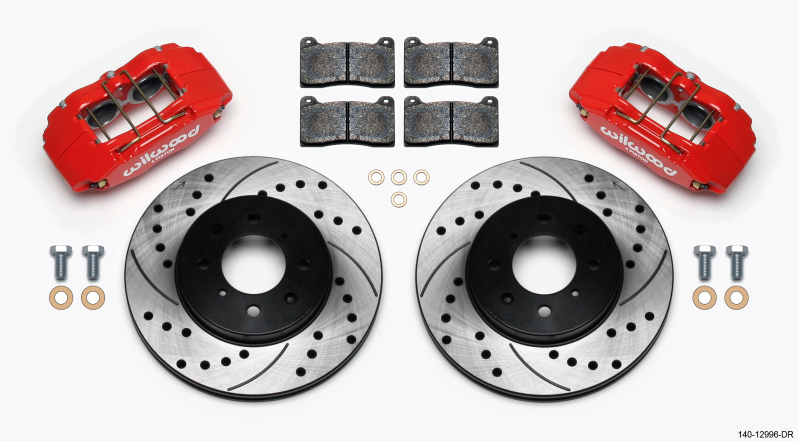

Included:
  • (2) - Rotors .83” Thick x 10.32” Diameter
  • (2) - Red Caliper DynaPro HA (DPHA)
  • (4) - Pad BP-10
  • (4) - Retainer Pad Clip
  • (5) - Washer .406 I.D. x .625 O.D. x .063 Thick
  • (6) - Bolt M12-1.50 x 25mm, Hex Head
  • (7) - Bolt M10-1.50 x 24mm, Banjo, Hex Head
  • (2) - Washer .477 I.D. x .922 O.D. x .063 Thick
Note:
  • This Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase
  • This kit requires spindles from vehicles originally equipped with 262mm (10.32") diameter rotors
