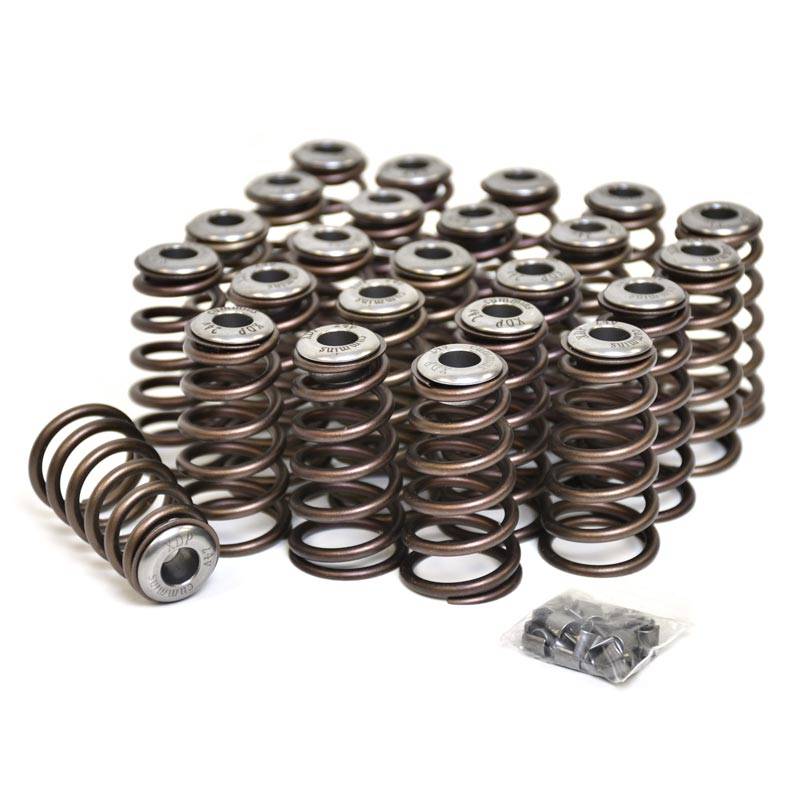

XDP Performance Valve Springs & Retainer Kit For 1998.5-2018 5.9L/6.7L Cummins 24-Valve
SKU:
XD313
SELECT FITMENT
See If This Product Fits Your Vehicle
- $487.95
- $487.95
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Control the valvetrain in your 1998.5–2018 Dodge Ram 5.9L or 6.7L 24-Valve Cummins with the XDP XD313 Performance Valve Springs and Retainer Kit. Factory valve springs are not designed for the elevated boost pressures and higher RPMs that accompany performance upgrades such as aftermarket turbochargers and custom tuning. When exposed to these conditions, stock springs can cause valve float or reversion—allowing exhaust gases to reenter the cylinder and reducing engine performance. The XD313 Kit ensures proper valve control, eliminating float and improving engine stability under boost.
The XDP Performance Valve Springs feature a conical spring design that enhances control while reducing weight. Each spring is precision load mapped, matched within one pound of seat pressure, and stress-relieved for consistent performance and long-term reliability. This kit can support applications from stock to 2,000 horsepower competition builds, making it a one-time upgrade for any high-performance Cummins build. Each kit includes springs, retainers, and locks for complete installation and is backed by XDP’s 2-Year Unlimited Mileage
These valve springs require a spring pocket size of 1.190" or larger. If needed, any competent machine shop will be able to cut a larger spring pocket. In some rare instances the spring pocket may be too small due to OEM machining inconsistencies only on 1998.5–2002 models
Features:
- Conical spring design increases valve control and reduces weight
- 100 lb seat pressure ensures valve stability under high boost
- Prevents valve float and reversion for improved performance
- Supports high-horsepower builds up to 2,000 horsepower
- Ideal for turbocharged and tuned Cummins performance engines
- Precision load-matched within 1 lb of seat pressure tolerance
- Stress-relieved for long-term reliability and consistent pressure
- Includes locks, retainers, and springs for complete installation
Specifications:
- Brand: XDP (Xtreme Diesel Performance)
- Part Number: XD313
- Application: 24-Valve 5.9L & 6.7L Cummins Diesel Engines
- Spring Design: Conical
- Seat Pressure: 100 lbs
- Horsepower Rating: Supports up to 2,000 HP
- Material: Heat-Treated Spring Steel
- Finish: Natural
- Included Components: Springs, Retainers, Locks
Included:
- (24) Performance Valve Springs
- (24) Retainers
- (24) Valve Locks
Fitment:
- 1998.5–2002 Dodge Ram 2500 5.9L 24-Valve Cummins
- 1998.5–2002 Dodge Ram 3500 5.9L 24-Valve Cummins
- 2003–2007 Dodge Ram 2500 5.9L 24-Valve Cummins
- 2003–2007 Dodge Ram 3500 5.9L 24-Valve Cummins
- 2007.5–2018 Dodge Ram 2500 6.7L 24-Valve Cummins
- 2007.5–2018 Dodge Ram 3500 6.7L 24-Valve Cummins
Notes:
- 2 Year / Unlimited Mileage Warranty
- Not legal for sale or shipment to California
- These valve springs require a spring pocket size of 1.190" or larger
- If needed, any competent machine shop will be able to cut a larger spring pocket
- In some rare instances the spring pocket may be too small due to OEM machining inconsistencies only on 1998.5–2002 models
WARRANTY INFO:
Products manufactured by XDP carry a 2-Year warranty against defects in materials and craftsmanship. The Warranty is Limited to two (2) year from the date of sale and limited solely to the parts contained within the product's kit. Click Here for full warranty policy.
Product Specs
SKU:
XD313
Brand:
XDP
part type:
Engine
