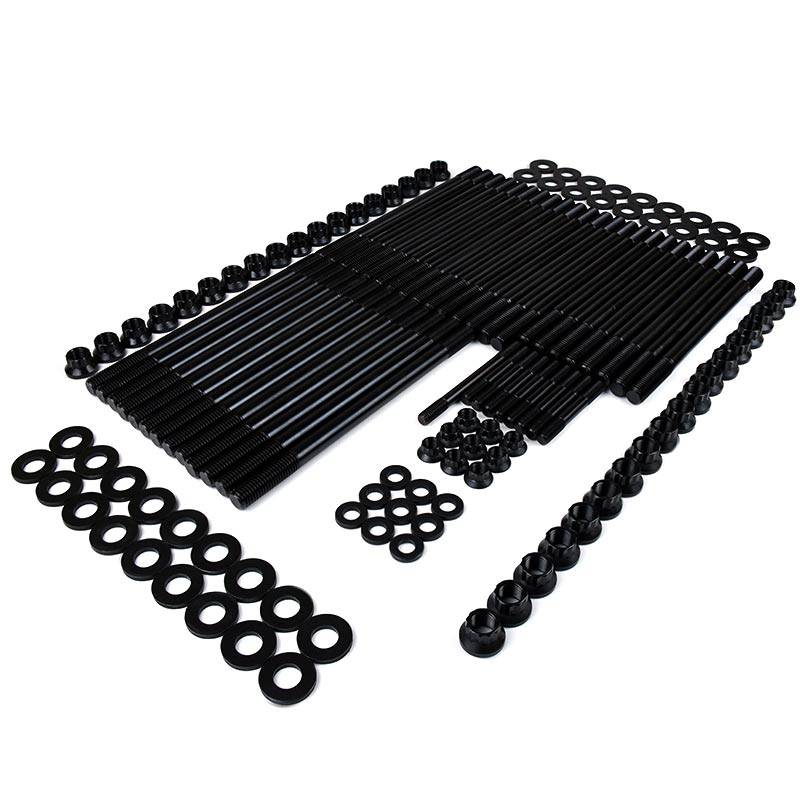

XDP X220 Series Head Stud Kit For 11-23 Ford Super Duty 6.7L Powerstroke Diesel
SKU:
XD3018HS
SELECT FITMENT
See If This Product Fits Your Vehicle
- $539.95
- $539.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Replace the weak OEM head bolts on your 2011-2023 6.7L Powerstroke with the XDP X220 Series Head Stud Kit XD3018HS. Upgrading the factory head bolts is a must when you start adding horsepower and torque to your Super Duty. The stock head bolts can struggle to handle the additional pressure in high-performance applications which leads to the cylinder head lifting. Upgrading to head studs helps to keep the cylinder heads locked down and avoid head gasket failures. Constructed using an 8740 Chromoly Steel with an added proprietary element ensures these studs will not stretch like the stock bolts. The threads are rolled after heat-treating to deliver optimum fatigue strength. These studs are rated at 205,000+ psi yield strength and 225,000+ psi tensile strength to ensure a strong hold under higher combustion pressures.
In addition to the upgraded strength, replacing the head bolts with studs also allows you to obtain a more precise torque reading. A bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time. With a head stud the force gets applied to the vertical axis, resulting in a more even clamping force. Another benefit of studs is they can help offer easier engine assembly and proper alignment of the cylinder heads every time. These are a must-have for high-performance applications and are reusable, unlike the OEM Torque-To-Yield (TTY) bolts which must be replaced after each use. These studs are manufactured in an ISO/TS 16949 quality control facility. Included with the studs are 12-point nuts and washers. Assembly lubricant sold separately.
Features:
- Includes Washers & 12-Point Nuts
- Yield Strength 205K psi - 215K psi
- Tensile Strength 225K psi - 233K psi
- Will Not Stretch Like The Factory Studs
- Thread Has Been Rolled After Heat Treatment
- High-Strength 8740 Chromoly Steel Construction
- 10mm Studs Test Out At A Max Load: Over 120KN
- Manufactured In An ISO/TS 16949 Quality Control Factory
- Studs Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use
Fitment:
- 2011-2023 6.7L Powerstroke
Included:
- (28) Long Head Stud
- (8) Short Head Stud
- (8) M8 Stud
- (1) M8x1.25x3.7 (Driver side only)
- (36) 12mm Washer
- (36) 12mm Nut
- (9) 8mm Washer
- (9) 8mm Nut
Note:
- 2 Year / Unlimited Mileage Warranty
- XDP Thread Cleaning Chasers & XDP X-TRA Slick Engine & Fastener Assembly Lubricant (Sold Separately)
- Forum postings could provide incorrect torque values. Please follow the included installation instructions for proper torque specifications and tightening sequence.
Product Specs
SKU:
XD3018HS
Brand:
XDP
