Zone Offroad 4.5 Inch Lift Kit with FOX Shocks For 2014-2018 Chevy/GMC Silverado/Sierra 1500 4WD Stamped Steel/Aluminum Control Arms
SKU:
ZONC28F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,370.75
- $1,370.75
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Lift your 2014–2018 Chevy Silverado 1500 or GMC Sierra 1500 4WD to the next level with the Zone Offroad 4.5” Suspension Lift Kit. Designed specifically for trucks equipped with stamped steel control arms, this kit improves ground clearance, enhances suspension geometry, and provides room for up to 33” tires for a stronger, more aggressive stance.
Zone Offroad builds this system using high-strength 1/4” steel components, precision CNC-machined steering knuckles, differential drop brackets, and a rear FOX 2.0 IFP shock upgrade. The result is improved handling, better off-road performance, and maintained stability control (FMVSS No.126 compliant), making this kit a reliable upgrade for daily driving or weekend adventures.
Features:
- Corrected suspension geometry for improved on and off-road handling
- FMVSS 126 compliant to retain factory stability and traction control
- Heavy-duty diff skid plate adds front-end protection on rough terrain
- 1/4" steel crossmembers strengthen and correct LCA operating angles
- CNC-machined knuckles maintain proper steering and alignment angles
- Differential drop brackets improve CV axle angle and driveline life
- Rear lift block and U-bolt kit levels stance with added strength
- Clears up to 33" tires for improved ground clearance and appearance
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4.5 inches
- Rear Lift Height: 4 inches
- Front Lift Method: Strut Spacer System
- Rear Lift Method: Lift Block & U-Bolts
- Crossmembers: 1/4" High-Strength Steel
- Steering Knuckles: CNC-Machined Ductile Iron
- Rear Shock Type: FOX 2.0 Adventure Series IFP
- Drive Type: 4WD Only
- Control Arm Compatibility: Stamped Steel
- Max Tire Size: 33 x 12.50 (trimming may be required)

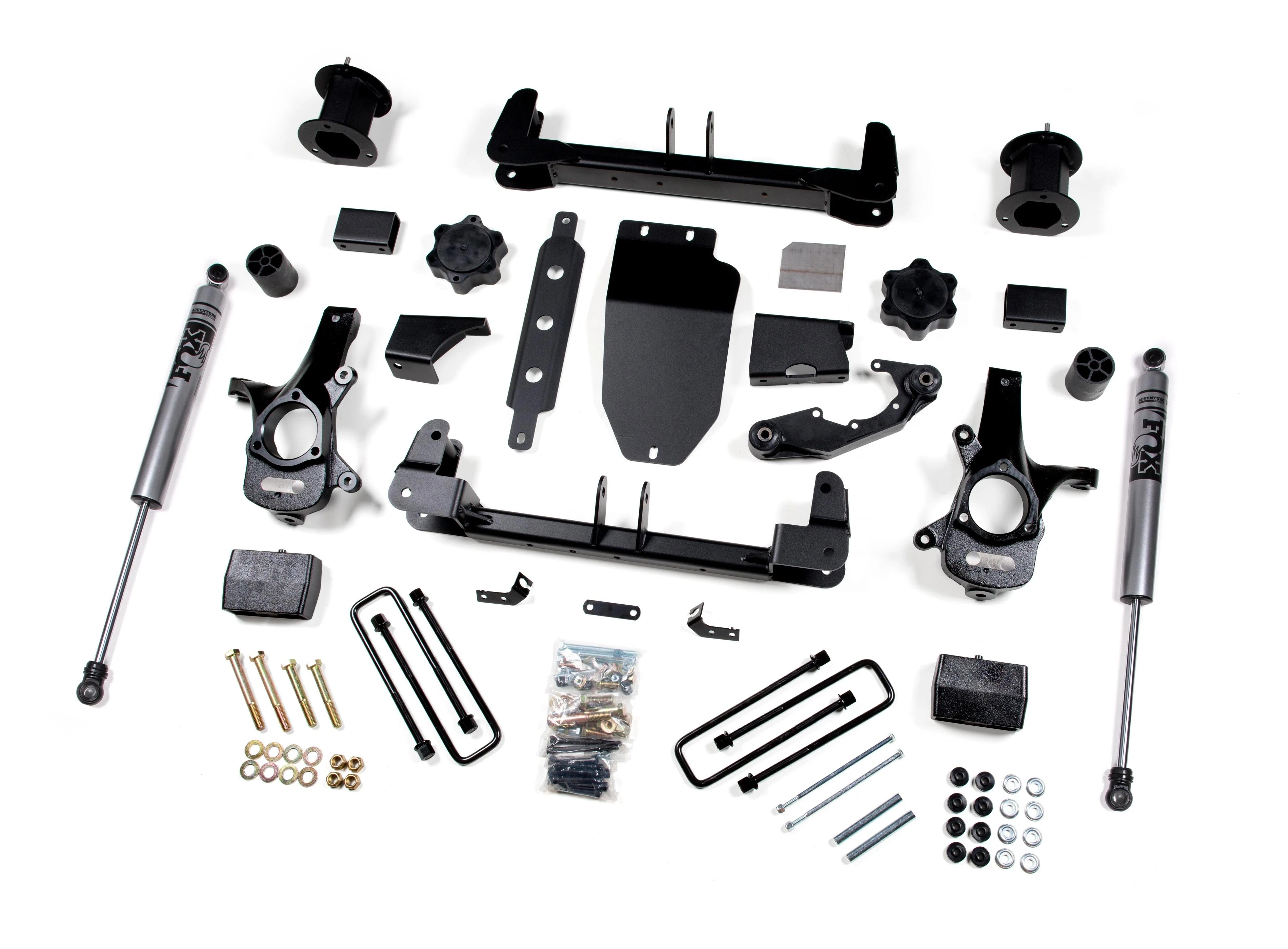

Included:
- (2) High-Strength Crossmembers
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Ductile Iron Steering Knuckles
- (2) Front Strut Spacers
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (1) Differential Skid Plate
- (1) Differential Drop Bracket Set
- (1) CV Axle Spacer Set
- (1) Weld-In Frame Support Plate
- (1) Hardware Pack
Fitment:
- 2014–2018 Chevrolet Silverado 1500 4WD (Stamped Steel/Aluminum Control Arms)
- 2014–2018 GMC Sierra 1500 4WD (Stamped Steel/Aluminum Control Arms)
Note:
- 3 Year Warranty
- Professional installation & post-lift alignment recommended
- Some AWD models may require front CV driveshaft replacement
- Will NOT fit models equipped with MagneRide magnetic ride control
- Rear shock max extended length is 29.75” to avoid driveline contact
- Factory 17" & 18" wheels cannot be reused due to tie-rod clearance
- 20" OEM wheels need 1/4” wheel spacers for proper tie-rod clearance
- Check Control Arms: GM used cast, stamped, and aluminum (2014–2017)
