Zone Offroad 4.5 Inch Lift Kit with FOX Shocks and Radius Arms For 2019-2024 Ram 3500 6.7L 4WD 8-Bolt without Overload
SKU:
ZOND86F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,812.45
- $1,812.45
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your Ram 3500 to new heights with the Zone Offroad 4.5" Lift Kit featuring FOX 2.0 Adventure Series Shocks. This complete system includes full-length progressive coil springs, radius arm drop brackets, steering correction components, and a 2" rear lift block to achieve a level, aggressive stance. Designed specifically for diesel-powered HD trucks, this kit improves ride quality, handling, and off-road capability while maintaining towing stability.
Zone Offroad engineered this system with a heavy-duty transfer case indexing ring, HD crossmember, and precision suspension geometry corrections to ensure proper driveline angles. The FOX 2.0 Adventure Series IFP shocks deliver strong damping performance and fade resistance. With clearance for up to 37" tires, this lift provides the strength, durability, and performance your Ram 3500 deserves.
Features:
- Progressive rate front coil springs deliver a smooth and controlled ride
- HD radius arm drop brackets correct geometry and maintain drivability
- Track bar relocation bracket re-centers front axle after lifting
- Forged drop pitman arm restores proper steering angles post-lift
- Front sway bar relocation maintains factory handling characteristics
- HD crossmember and indexing ring correct front driveline alignment
- FOX 2.0 Adventure IFP shocks improve control on and off the road
- Allows proper clearance for up to 37 inch tires with correct wheels
Specifications:
- Brand: Zone Offroad
- Front lift height: 4.5 inches
- Rear lift height: 2 inches
- Front lift method: Coil springs and drop brackets
- Rear lift method: Steel lift block and U-bolts
- Shocks included: FOX 2.0 Adventure Series IFP
- Shock body: 2.0 inch steel body, clear anodized finish
- Shock shaft: 5/8 inch hard chrome heat-treated alloy steel
- Indexing ring: 8-bolt transfer case pattern
- Max tire size: Up to 37 x 12.50 with proper backspacing
- Drive type: 4WD diesel models only

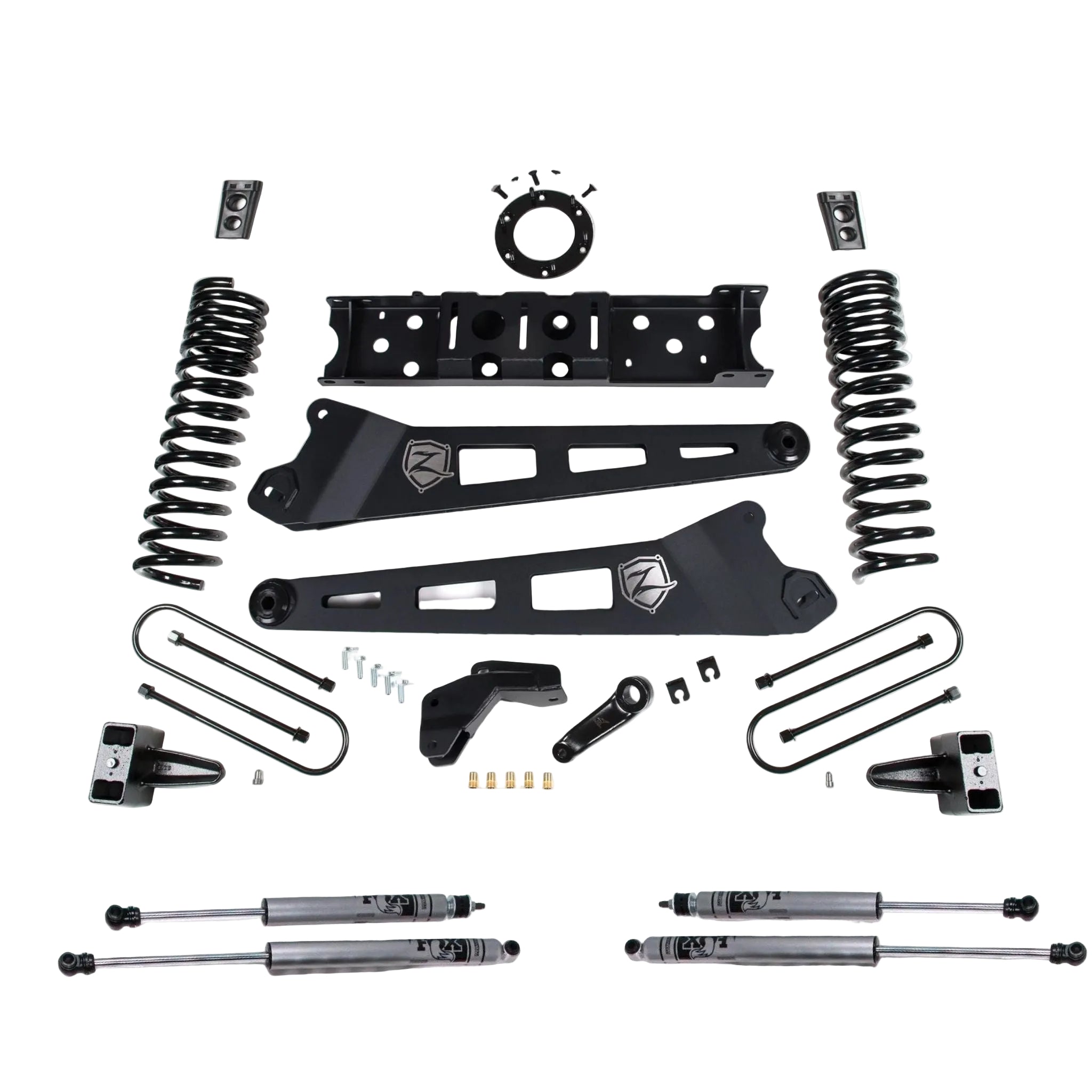

Included:
- (2) Front Progressive-Rate Coil Springs
- (2) FOX 2.0 Adventure Series Front Shocks
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Heavy-Duty Radius Arm Drop Brackets
- (1) HD Front Track Bar Relocation Bracket
- (1) Forged Drop Pitman Arm
- (1) HD Transmission Crossmember
- (1) 8-Bolt Transfer Case Indexing Ring
- (2) Rear 2" Steel Lift Blocks
- (4) Heavy-Duty Rear U-Bolts
- (1) Front Sway Bar & Brake Line Relocation Kit
- (1) Hardware Kit
Fitment:
- 2019–2024 Ram 3500 6.7L Cummins Diesel 4WD (8-Bolt T-Case, w/o Overload)
Notes:
- Diesel models only
- Will not fit Cab and Chassis models
- Will NOT fit rear air-ride equipped models
- Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
- Does not fit Dually Models with 8-bolt transmissions (Aisin)
- T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
- Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit. Purchase ZOND5409
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
Product Specs
SKU:
ZOND86F
Brand:
Zone Offroad
