Zone Offroad 4.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2022 Ram 2500 4WD 6.7L Cummins

Elevate the stance, capability, and performance of your 2019–2022 Ram 2500 4WD Diesel with the Zone Offroad 4.5” Radius Arm Suspension Lift Kit. Engineered specifically for heavy-duty diesel applications, this system delivers improved suspension geometry, increased wheel travel, and clearance for up to 37” tires. Whether you tow, daily drive, or explore off-road terrain, this kit enhances stability, articulation, and durability.

Zone Offroad includes heavy-duty 1/4" steel radius arms, progressive-rate diesel coil springs, a forged drop pitman arm, upgraded track bar brackets, and a t-case indexing ring to correct driveline alignment. FOX 2.0 Adventure Series shocks provide superior damping, improved heat dissipation, and off-road control for a comfortable, predictable ride in all conditions.

Features:

• Heavy-duty 1/4" radius arms increase strength, caster, and clearance
• Progressive diesel coils improve ride comfort and terrain handling
• HD track bar brackets re-center axles for proper suspension geometry
• Forged drop pitman arm restores correct steering alignment angles
• T-case ring and HD crossmember correct front driveline operating angles
• FOX 2.0 shocks provide stable, fade-free damping on all terrains
• Rear coil spacers maintain towing capacity and level rear stance
• Clears up to 37" tires for aggressive stance and off-road capability

Specifications:

• Brand: Zone Offroad
• Front Lift Height: 4.5 inches
• Rear Lift Height: 2.5 inches
• Front Lift Method: Progressive Diesel Coil Springs
• Rear Lift Method: HD Coil Spacers
• Radius Arms: 1/4" Laser-Cut, Gusseted Steel
• Shocks Included: FOX 2.0 Adventure Series
• Steering Correction: Forged Drop Pitman Arm
• Driveline Correction: T-Case Indexing Ring + HD Crossmember
• Drive Type: 4WD Diesel Only
• Max Tire Size: Up to 37" (trimming may be required)

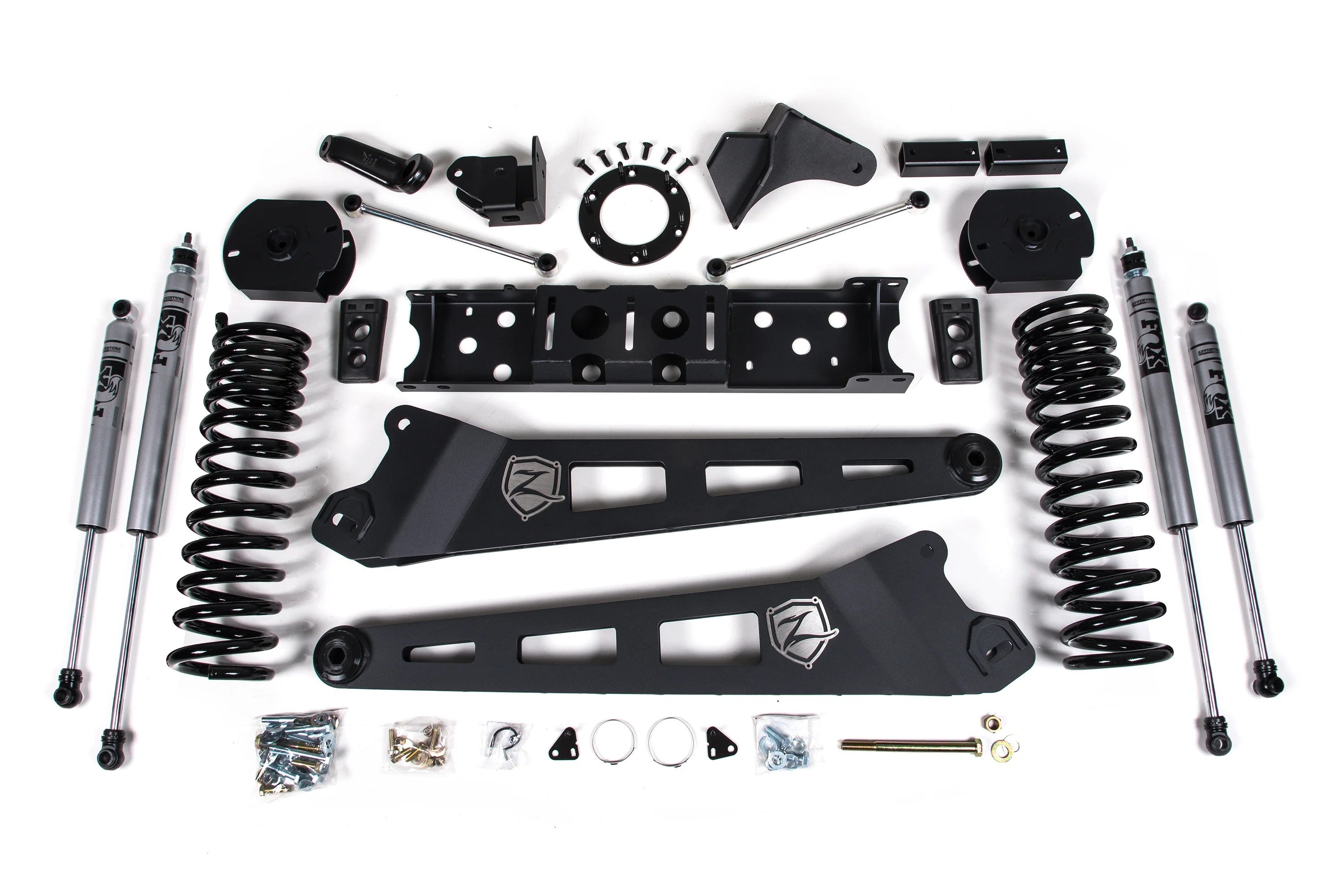

Included:

• (2) Progressive-Rate Front Coil Springs
• (2) Rear Coil Spring Spacers
• (2) Heavy-Duty Radius Arms
• (2) FOX 2.0 Adventure Series Front Shocks
• (2) FOX 2.0 Adventure Series Rear Shocks
• (1) Forged Drop Pitman Arm
• (1) HD Transmission Crossmember
• (1) T-Case Indexing Ring
• (1) Front Track Bar Relocation Bracket
• (1) Rear Track Bar Relocation Bracket
• (1) Sway Bar Relocation Bracket Set
• (1) Brake Line Relocation Kit
• (1) Hardware Pack

Fitment:

• 2019–2022 Ram 2500 4WD 6.7L Cummins Diesel

Note:

• 3 Year Warranty
• Will NOT fit air-ride equipped models
• Diesel models only
• Does not fit Vehicles with a Manual Shift Transfer Case
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
