Zone Offroad 4.5 Inch Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.7L 4WD 6-Bolt without overload
SKU:
ZOND90F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,654.55
- $1,654.55
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your Ram 3500 to the next level with the Zone Offroad 4.5" Lift Kit featuring FOX 2.0 Adventure Series Shocks. This complete system includes full-length progressive coil springs, heavy-duty radius arm drop brackets, steering correction components, and a 2" rear lift block designed for trucks without overload springs. Engineered for diesel-powered HD performance, this lift improves ride quality, stability, and off-road capability in all conditions.
The included 6-bolt transfer case indexing ring and HD crossmember correct front driveline angles for improved durability and proper geometry. FOX 2.0 Adventure Series IFP shocks deliver excellent damping control, fade resistance, and a balanced ride on pavement or terrain. With clearance for up to 37" tires, this lift gives your Ram 3500 the stance, performance, and capability it deserves.
Features:
- Progressive rate coil springs deliver smooth ride quality on any terrain
- HD radius arm drop brackets correct suspension geometry after lifting
- Track bar relocation bracket centers front axle under the truck
- Forged drop pitman arm restores steering angles and improves handling
- Front sway bar relocation maintains factory stability characteristics
- HD crossmember and 6-bolt indexing ring correct driveline alignment
- FOX 2.0 shocks enhance control, damping, and off-road performance
- Provides clearance for up to 37 inch tires with proper wheels
Specifications:
- Brand: Zone Offroad
- Front lift height: 4.5 inches
- Rear lift height: 2 inches
- Front lift method: Coil springs & radius arm drop brackets
- Rear lift method: 2" steel lift block & U-bolts
- Shocks included: FOX 2.0 Adventure Series IFP
- Shock body: 2.0” steel body with clear anodized finish
- Shock shaft: 5/8” hard-chrome heat-treated alloy steel
- Indexing ring: 6-bolt transfer case pattern
- Max tire size: Up to 37 x 12.50 with proper backspacing
- Application: 4WD diesel models without overload springs

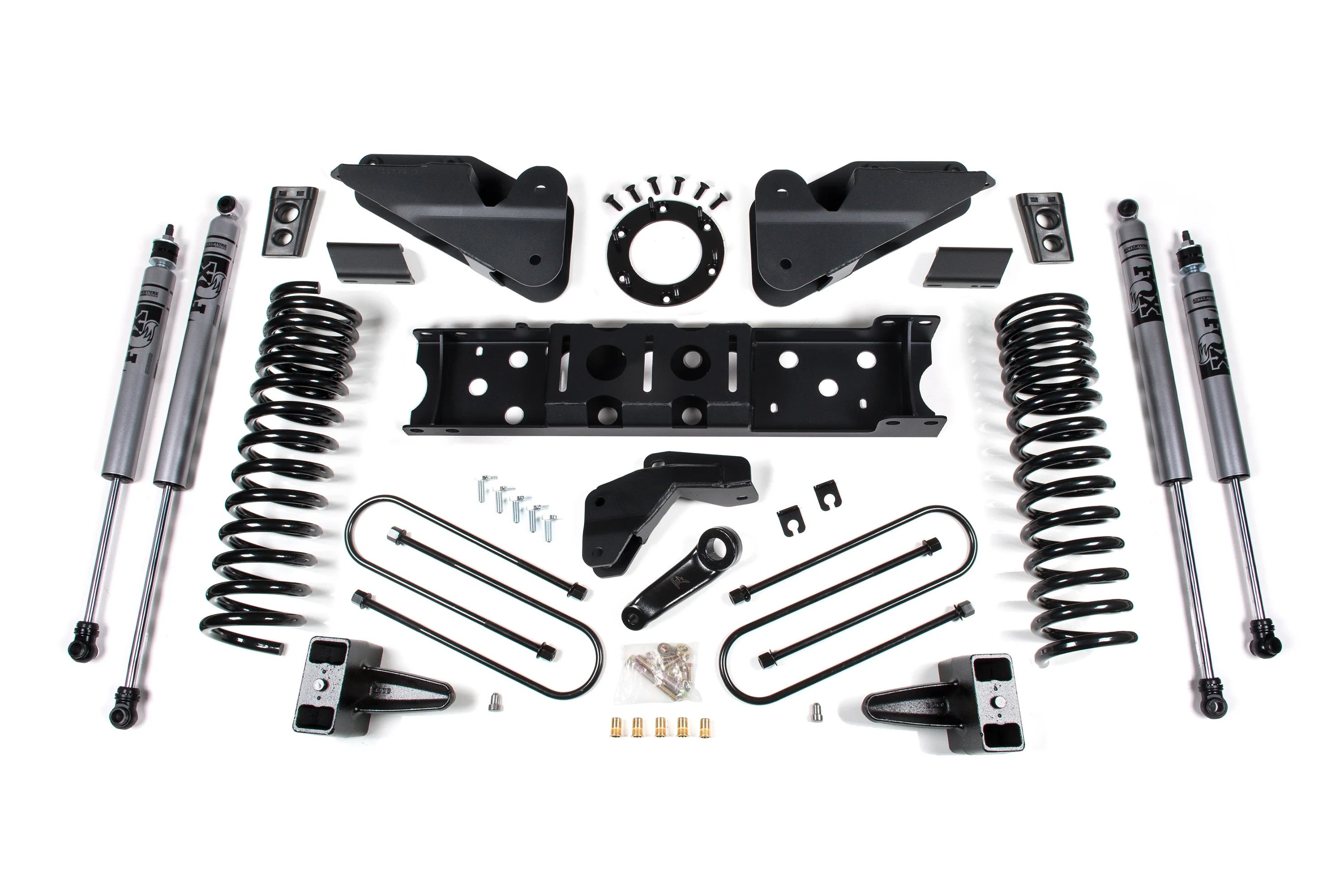

Included:
- (2) Front Progressive-Rate Coil Springs
- (2) FOX 2.0 Adventure Series Front Shocks
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Heavy-Duty Radius Arm Drop Brackets
- (1) HD Front Track Bar Relocation Bracket
- (1) Forged Drop Pitman Arm
- (1) HD Transmission Crossmember
- (1) 6-Bolt Transfer Case Indexing Ring
- (2) Rear 2" Steel Lift Blocks
- (4) Heavy-Duty Rear U-Bolts
- (1) Front Sway Bar & Brake Line Relocation Kit
- (1) Complete Hardware Kit
Fitment:
- 2019–2024 Ram 3500 6.7L Cummins Diesel 4WD (6-Bolt T-Case, w/o Overload)
Notes:
- 3 Year Warranty
- Diesel models only
- Will not fit Cab and Chassis models
- Will NOT fit rear air-ride equipped models
- Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
- Does not fit Dually Models with 8-bolt transmissions (Aisin)
- T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
- Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit. Purchase ZOND5409
