Zone Offroad 4.5 Inch Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.7L 4WD 6-Bolt without overload
SKU:
ZOND88F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,659.55
- $1,659.55
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your Ram 3500 to the next level with the Zone Offroad 4.5" Lift Kit featuring FOX 2.0 Adventure Series Shocks. This complete system includes full-length progressive coil springs, radius arm relocation brackets, steering geometry correction, and a 3" rear lift block designed for trucks without overload springs. Engineered for diesel-powered HD performance, this kit improves ride quality, stability, and off-road capability.
The included 6-bolt transfer case indexing ring and HD crossmember ensure proper driveline angles and long-term reliability. FOX 2.0 Adventure Series IFP shocks deliver excellent damping control, fade resistance, and handling. With clearance for up to 37" tires, this lift gives your Ram the stance, strength, and performance it deserves.
Features:
- Progressive rate coil springs deliver smooth ride quality on any terrain
- HD radius arm drop brackets correct suspension geometry after lifting
- Track bar relocation bracket centers front axle for proper tracking
- Forged drop pitman arm restores steering angles and handling feel
- Sway bar relocation maintains factory stability and performance
- HD crossmember and 6-bolt indexing ring correct driveline alignment
- FOX 2.0 shocks enhance ride control, damping, and off-road ability
- Provides clearance for up to 37 inch tires with correct wheel specs
Specifications:
- Brand: Zone Offroad
- Front lift height: 4.5 inches
- Rear lift height: 3 inches
- Front lift method: Coil springs and radius arm drop brackets
- Rear lift method: 3" steel block and U-bolts
- Shocks included: FOX 2.0 Adventure Series IFP
- Shock body: 2.0” steel body with clear anodized finish
- Shock shaft: 5/8” hard-chrome heat-treated alloy steel
- Indexing ring: 6-bolt transfer case pattern
- Max tire size: Up to 37 x 12.50 with proper backspacing
- Application: 4WD diesel models without overload springs

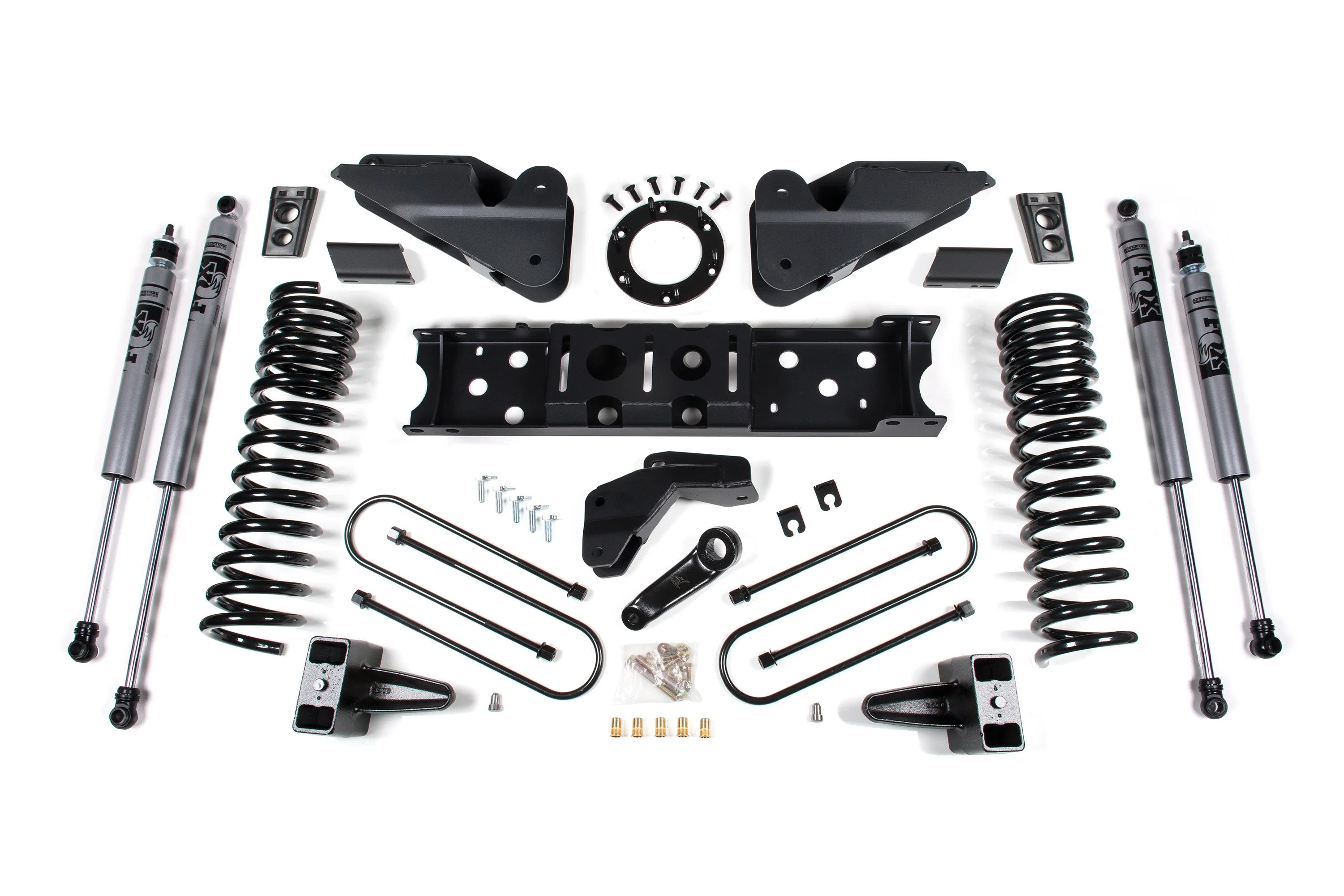

Included:
- (2) Front Progressive-Rate Coil Springs
- (2) FOX 2.0 Adventure Series Front Shocks
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Heavy-Duty Radius Arm Drop Brackets
- (1) HD Front Track Bar Relocation Bracket
- (1) Forged Drop Pitman Arm
- (1) HD Transmission Crossmember
- (1) 6-Bolt Transfer Case Indexing Ring
- (2) Rear 3" Steel Lift Blocks
- (4) Heavy-Duty Rear U-Bolts
- (1) Front Sway Bar & Brake Line Relocation Kit
- (1) Hardware Kit
Fitment:
- 2019–2024 Ram 3500 6.7L Cummins Diesel 4WD (6-Bolt T-Case, w/o Overload)
Notes:
- 3 Year Warranty
- Diesel models only
- Will not fit Cab and Chassis models
- Will NOT fit rear air-ride equipped models
- Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
- Does not fit Dually Models with 8-bolt transmissions (Aisin)
- T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
- Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit. Purchase ZOND5409
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
