Zone Offroad 4 Inch Lift Kit with Radius Arms and FOX Shocks For 2019–2024 Ram 3500 6.4L 4WD without Overload or Rear Air ride
SKU:
ZOND103F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,781.45
- $1,781.45
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your 2019–2024 Ram 3500 Gas 4WD to the next level with the Zone Offroad 4" Radius Arm Suspension System. This premium kit delivers improved ride height, enhanced capability, and corrected suspension geometry through full-length coil springs, heavy-duty radius arms, steering correction components, and a 2" rear lift designed for non-overload models. Built for durability and strength, it maintains confident on-road handling while unlocking serious off-road performance.
To elevate control, comfort, and damping consistency, this system includes a full set of FOX 2.0 Adventure Series IFP shocks. With their 2" steel body, high-flow piston, and heat-treated 5/8" alloy shaft, FOX shocks deliver significantly improved ride quality, stability, and terrain management. Combined with clearance for up to 37" tires, this kit gives your Ram a stronger stance, smoother ride, and improved capability for towing, hauling, and trail use.
Features:
- Progressive rate front coils improve ride comfort and terrain absorption
- HD radius arms correct caster, increase strength, and add ground clearance
- Track bar relocation bracket re-centers the axle for proper alignment
- Forged drop pitman arm restores correct steering geometry and stability
- Front sway bar brackets maintain predictable handling characteristics
- FOX 2.0 IFP shocks deliver improved damping and off-road performance
- Allows clearance for up to 37" tires with proper wheel and offset specs
- Boosts daily drivability and enhances heavy-duty towing and off-road use
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 2 inches
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shock Type: FOX 2.0 Adventure Series IFP
- Shock Quantity: 4 FOX Shocks
- Drive Type: 4WD
- Radius Arms: 1/4" Laser-cut, gusseted steel construction
- Max Tire Size: 37 inches (trimming may be required)
- Steering Correction: Forged drop pitman arm
- Exhaust Clearance: May require slight modification

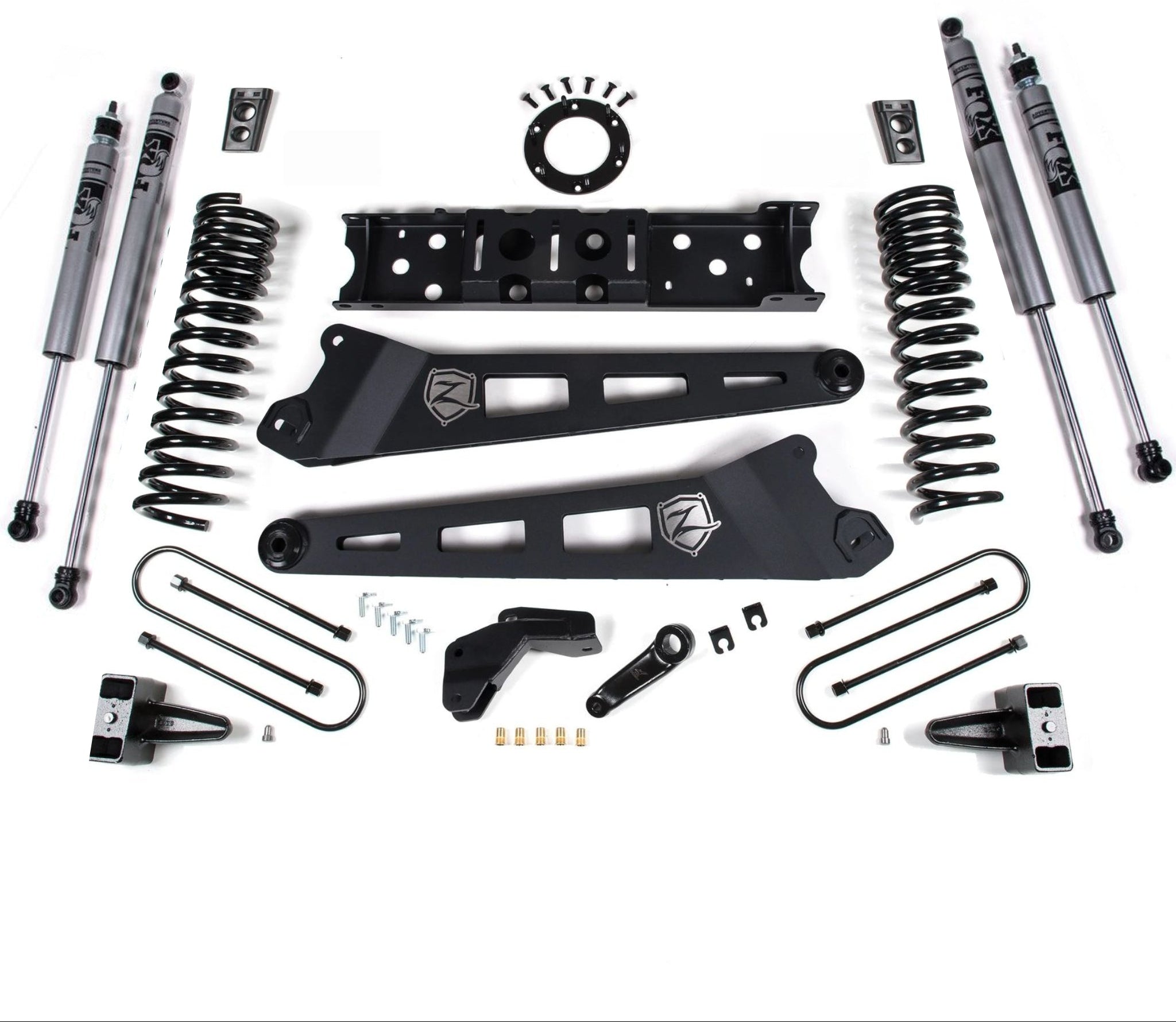

Included:
- (2) Front Coil Springs
- (2) Heavy-Duty Radius Arms
- (2) FOX Front Shocks
- (2) FOX Rear Shocks
- (1) Track Bar Relocation Bracket
- (1) Forged Drop Pitman Arm
- (2) Front Bump Stop Spacers
- (2) Front Sway Bar Link Brackets
- (2) Rear 2" Lift Blocks
- (4) Rear U-Bolts
- (1) Complete Hardware Kit
Fitment:
- 2019–2024 Ram 3500 6.4L HEMI Gas 4WD (w/o Overload Leaf & w/o Rear Air Ride)
Note:
- 3 Year Warranty
- Gas models only
- Will NOT fit Cab and Chassis models
- Will NOT fit rear air-ride equipped models
- Does not fit Vehicles with a Manual Shift Transfer Case
- Even with included exhaust spacers, some vehicles may require slight exhaust modification
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
