Zone Offroad 5 Inch Lift Kit with Radius Arms and FOX Shocks For 2020-2022 Ford F-250/F-350 6.7L 4WD

SKU: ZONF60F

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,606.45
$1,606.45

Free Shipping

Free ground shipping on all orders over $99
Description

Upgrade your 2020–2022 Ford F250/F350 Super Duty 6.7L Diesel with the Zone Offroad 5" Radius Arm Lift Kit featuring FOX 2.0 Adventure Series shocks. Engineered for improved ride height, precise suspension geometry, and clearance for 37" tires, this system delivers the aggressive stance and enhanced performance your Super Duty deserves. Whether towing, hauling, or off-road, this lift provides the ideal blend of strength and capability.

Zone Offroad includes high-strength 1/4" steel replacement radius arms, full-length diesel-specific coil springs, a fabricated track bar bracket, a forged pitman arm, and a rear block and U-bolt system. The FOX 2.0 Adventure Series shocks use an IFP monotube design with a 2-inch steel body, high-flow piston, and application-specific valving to ensure controlled damping, improved stability, and long-lasting durability on any terrain.

Features:

  • FOX 2.0 shocks deliver smooth damping with IFP monotube design
  • HD 1/4" steel radius arms correct caster and increase clearance
  • Forged pitman arm restores steering angles after lifting
  • Track bar bracket re-centers axle and improves stability
  • Full-length diesel springs provide lift with controlled ride
  • Rear block and U-bolt kit levels the truck front to rear
  • Engineered to fit up to 37-inch tires for a taller stance
  • Durable components ensure long-lasting off-road reliability

Specifications:

  • Brand: Zone Offroad
  • Front Lift Method: Coil spring and HD radius arm
  • Rear Lift Method: Rear lift block
  • Front Lift Height: 5 inches
  • Rear Lift Height: 3 inches
  • Shocks Included: Yes (FOX 2.0 Adventure Series)
  • Shock Design: IFP monotube
  • Shock Body Diameter: 2 inches
  • Recommended Tire Size: Up to 37x12.50
  • Drive Type: 4WD
  • Engine Fitment: 6.7L Power Stroke Diesel

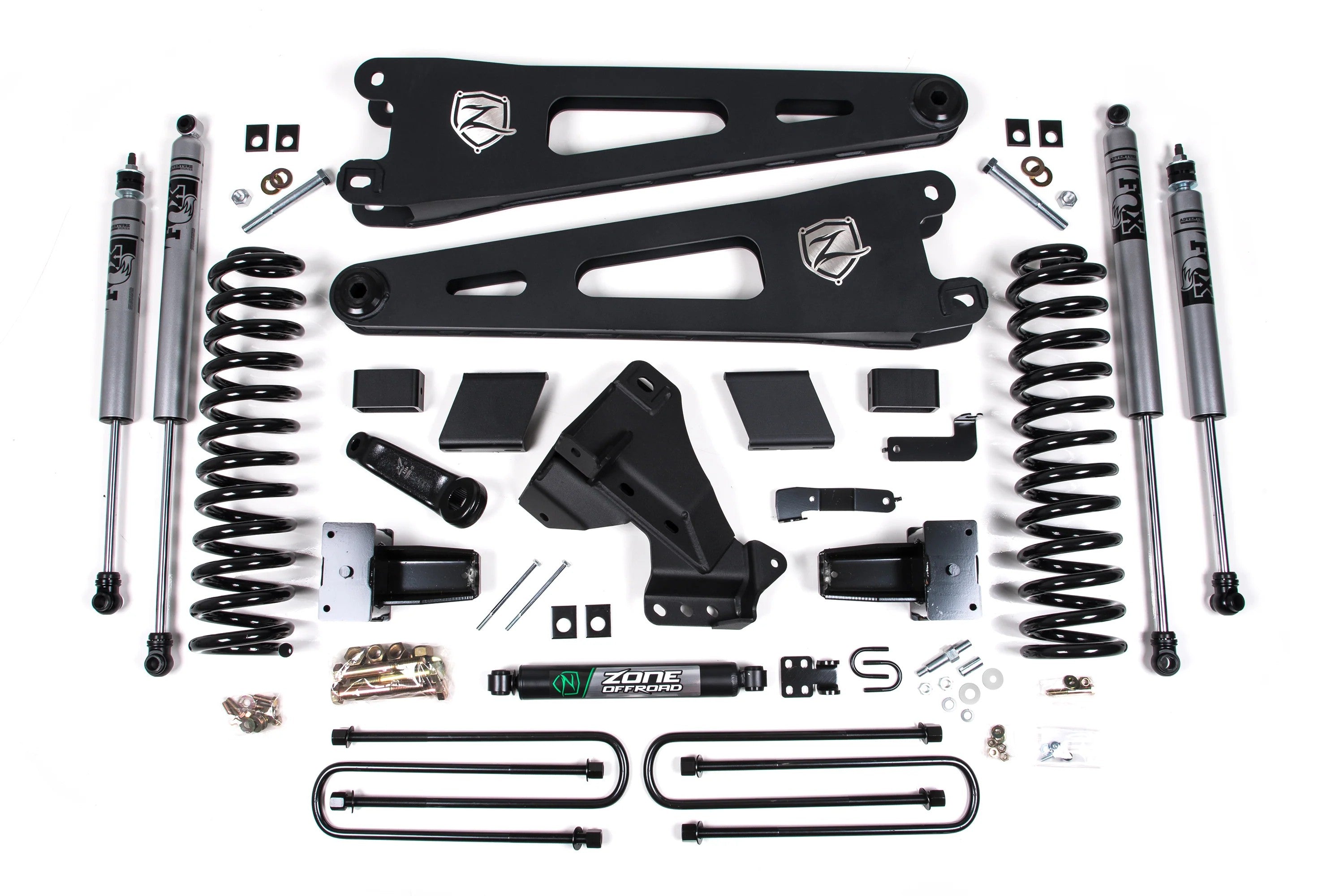

Included:

  • (2) Coil Springs
  • (2) Heavy-Duty Replacement Radius Arms
  • (2) Front FOX 2.0 Adventure Series Shocks
  • (2) Rear FOX 2.0 Adventure Series Shocks
  • (1) Forged Pitman Arm
  • (1) Track Bar Relocation Bracket
  • (1) Rear Lift Block
  • (4) Rear U-Bolts
  • (1) Installation Hardware Kit

Fitment:

  • 2020–2022 Ford F-250 Super Duty 6.7L Diesel 4WD
  • 2020–2022 Ford F-350 Super Duty 6.7L Diesel 4WD

Notes:

  • 3 Year Warranty
  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration
  • When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift
