Zone Offroad 4 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2026 Ram 2500 6.4L 4WD
SKU:
ZOND79F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,821.45
- $1,821.45
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 2019–2026 Ram 2500 6.4L Gas 4WD the lift, strength, and capability it deserves with the Zone Offroad 4" Radius Arm Suspension Lift Kit. Engineered to increase ground clearance, correct suspension geometry, and enhance off-road performance, this system delivers a smooth, controlled ride with room for up to 37" tires. Whether used for towing, daily driving, or weekend adventure, this kit offers the durability and precision your Ram needs.
Zone Offroad includes progressive-rate coil springs, massive 1/4" steel radius arms, steering correction, driveline angle correction, and a complete rear lift system. The included Nitro Series shocks provide improved on-road comfort and off-road control. With strengthened components and optimized geometry, this system maintains factory-like handling while delivering a taller, more aggressive stance.
Features:
- High-strength radius arms improve caster and ground clearance
- Progressive-rate coils deliver smoother ride on any terrain
- Track bar brackets re-center both axles after lifting
- Forged pitman arm restores steering geometry correctly
- HD crossmember and t-case ring correct driveline angles
- Nitro Series shocks enhance stability and off-road damping
- Rear lift spacers level stance without reducing tow rating
- Clears up to 37" tires for bold stance and added capability
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 2.5 inches
- Front Lift Method: Progressive Coil Springs
- Rear Lift Method: Coil Spring Spacers
- Shock Type: Nitro Series Gas-Charged
- Radius Arms: 1/4" Steel, Laser-Cut, Gusseted
- Track Bar Brackets: Front and Rear Included
- Driveline Correction: Crossmember & Indexing Ring
- Max Tire Size: Up to 37" (trimming may be required)

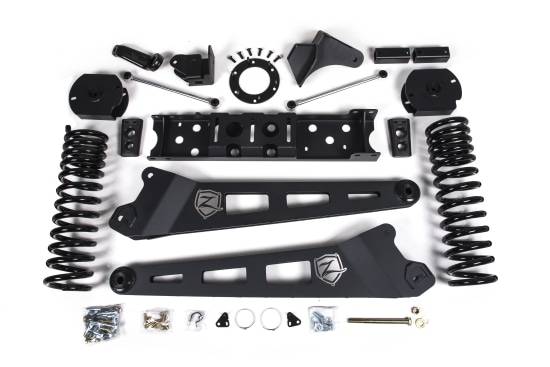

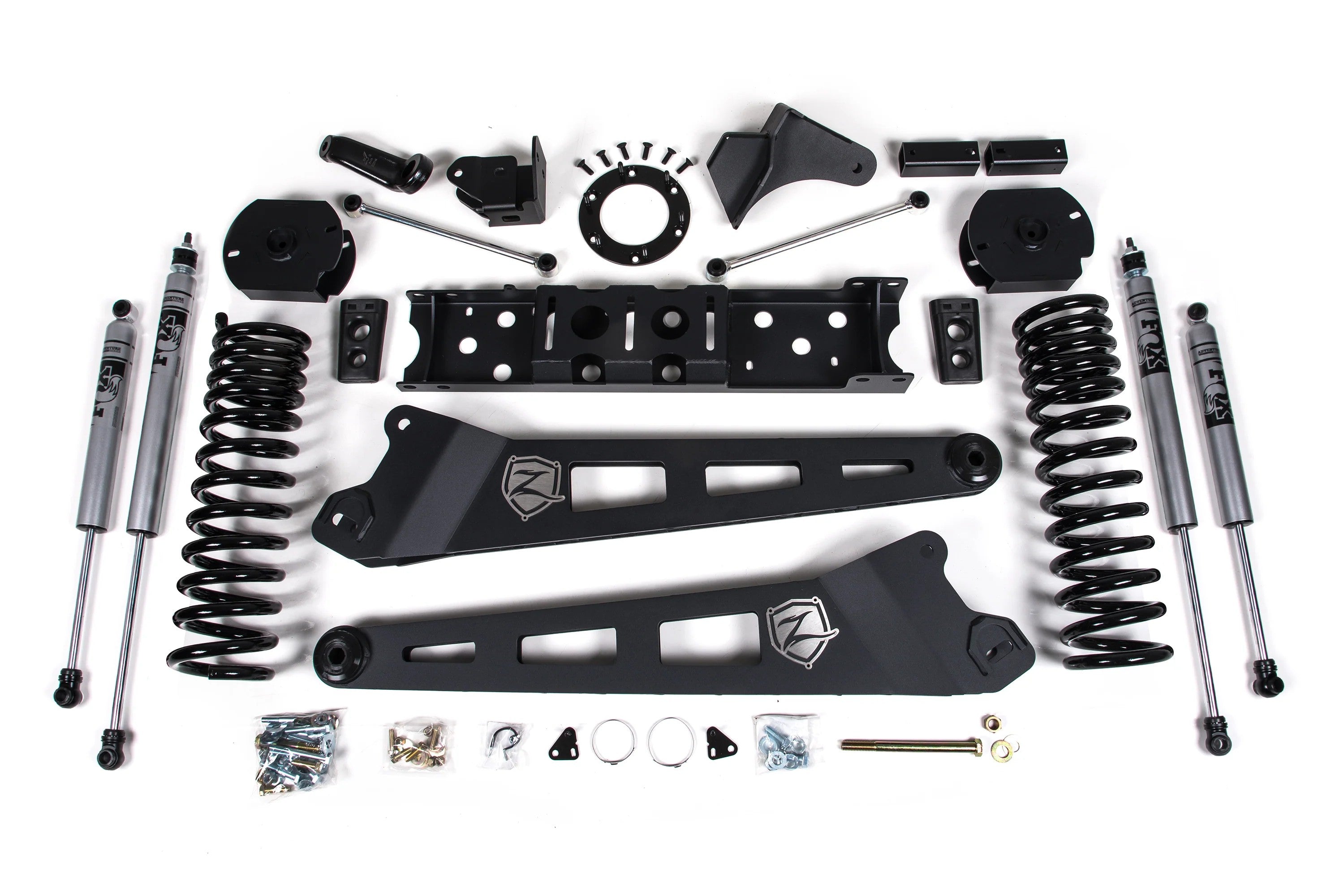

Included:
- (2) Front Coil Springs – Progressive-rate steel
- (2) Heavy-Duty Radius Arms – 1/4" laser-cut steel
- (2) Nitro Series Front Shocks – Twin-tube nitrogen-charged
- (2) Nitro Series Rear Shocks – Twin-tube nitrogen-charged
- (1) Forged Drop Pitman Arm – High-strength steel
- (1) HD Crossmember – Steel construction
- (1) Transfer Case Indexing Ring – Corrects driveline angle
- (1) Front Track Bar Relocation Bracket – Steel
- (1) Rear Track Bar Relocation Bracket – Steel
- (2) Rear Coil Spring Spacers – Heavy-duty steel
- (1) Sway Bar Relocation Bracket Set – Steel
- (1) Hardware Pack – All required bolts, brackets, and fasteners
- (1) Hardware Pack
Fitment:
- 2019–2026 Ram 2500 6.4L HEMI Gas 4WD
Note:
- 3 Year Warranty
- Will NOT fit air-ride equipped models
- Gas models only
- Will NOT fit Power Wagon Models
- Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop.
- Does not fit Vehicles with a Manual Shift Transfer Case
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
Product Specs
SKU:
ZOND79F
Brand:
Zone Offroad
