Zone Offroad 4 Inch Lift Kit with FOX Shocks For 2017-2019 Ford F-250/F-350 6.7L 4WD w/o Rear Factory Overload
SKU:
ZONF48F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,326.55
- $1,326.55
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 2017–2019 Ford F250/F350 Super Duty 6.7L Diesel the stance, capability, and performance it deserves with the Zone Offroad 4" Standard Lift Kit. Engineered for improved ride quality and suspension geometry, this kit provides the perfect blend of heavy-duty strength and daily-drive comfort. With clearance for 37" tires, your Super Duty gains the ground clearance and visual presence expected from a premium lift system.
Zone Offroad includes full-length coil springs, radius arm drop brackets, a forged pitman arm, sway bar and brake line relocation, and a rear block and U-bolt system to ensure correct geometry front to rear. The included FOX 2.0 Adventure Series shocks improve damping performance with an IFP monotube design, high-flow pistons, and a durable steel body. Whether towing, hauling, or off-roading, this lift kit delivers the capability, control, and reliability your Ford Super Duty demands.
Features:
- High-strength coil springs add lift height while improving ride quality
- Radius arm drop brackets correct caster and maintain geometry
- FOX 2.0 shocks improve damping with IFP monotube performance design
- Forged pitman arm and track bar bracket correct steering angles
- Brake line and sway bar relocation brackets maintain safe operation
- Rear lift blocks and U-bolts level the truck and improve stance
- Engineered to clear 37-inch tires with minimal trimming required
- Heavy-duty components deliver long-term durability and stability
Specifications:
- Brand: Zone Offroad
- Front Lift Method: Coil spring and drop bracket
- Rear Lift Method: Rear lift block
- Front Lift Height: 4 inches
- Rear Lift Height: 3 inches
- Shocks Included: Yes (FOX 2.0 Adventure Series)
- Shock Design: IFP monotube
- Recommended Tire Size: Up to 37x12.50
- Drive Type: 4WD
- Engine Fitment: 6.7L Power Stroke Diesel

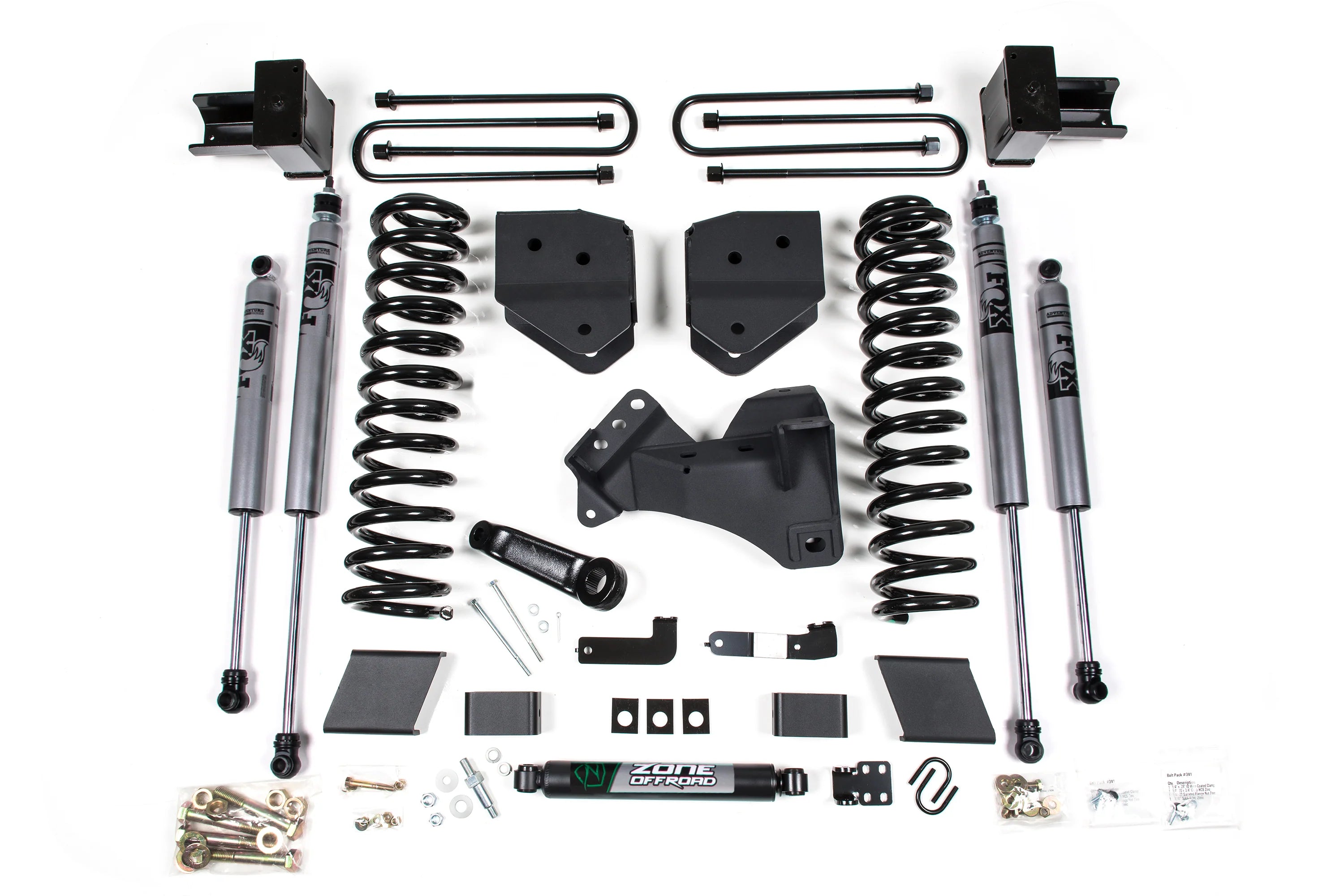

Included:
- (2) Front Coil Springs
- (2) Rear Lift Blocks
- (4) U-Bolts
- (2) Front FOX 2.0 Adventure Series Shocks
- (2) Rear FOX 2.0 Adventure Series Shocks
- (2) Radius Arm Drop Brackets – Steel
- (1) Track Bar Relocation Bracket
- (1) Forged Pitman Arm
- (2) Sway Bar Relocation Brackets
- (2) Brake Line Relocation Brackets
- (1) Hardware Kit
Fitment:
- 2017-2019 Ford F250 Super Duty 6.7L Diesel 4WD
- 2017-2019 Ford F350 Super Duty 6.7L Diesel 4WD
- Fits SRW models only
Notes:
- 37x12.50 tires may require minor trimming.
- Determine if your truck is equipped with standard (2-leaf main) or heavy payload (3-leaf main w/overload) factory rear leaf spring packs. Standard 2-leaf main applications will require kit # F48, heavy payload 3-leaf main w/ overload applications will require kit # F50. See "learn more" example image.
- Factory wheels fit when paired with factory / original equipment tire size.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Product Specs
SKU:
ZONF48F
Brand:
Zone Offroad
