Zone Offroad 4 Inch Lift Kit with FOX Shocks For 2019-2024 GMC/Chevrolet Silverado 1500/Sierra 1500 AT4/Trail Boss
SKU:
ZONC69F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,850.80
- $1,850.80
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 2019–2024 Chevy Silverado Trail Boss or GMC Sierra AT4 the lift, strength, and capability it deserves with the Zone Offroad 4" Suspension Lift Kit. Designed specifically for factory-lifted Trail Boss and AT4 models, this system nets a true 4" over stock—equivalent to a 6" lift compared to standard Silverado/Sierra trucks. The kit improves ground clearance, corrects suspension geometry, and allows up to 35"–37" tires for a commanding stance on and off the road.
This system includes heavy-duty crossmembers, CNC-machined steering knuckles, Adventure Series upper control arms, top-mount strut spacers, and differential relocation brackets to maintain proper CV angles. Built for both gas and diesel engines, the kit delivers improved performance, handling, and durability while retaining ESC compliance and factory ride comfort.
Features:
- Corrected suspension geometry improves control on-road and off-road
- HD crossmembers and skid plate strengthen chassis and protect driveline
- CNC-machined knuckles maintain ESC compliance and steering accuracy
- Top-mount strut spacers lift without affecting OE ride comfort
- Adventure Series UCAs increase strength and suspension travel
- FOX 2.0 rear shocks deliver stable, fade-free damping performance
- Differential relocation brackets correct CV and driveline angles
- Clears 35–37 inch tires for aggressive stance and added clearance
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 3 inches
- Front Lift Method: Strut Spacer & Crossmembers
- Rear Lift Method: Cast Lift Block & U-Bolts
- Upper Control Arms: Adventure Series Welded Steel
- Steering Knuckles: CNC-Machined Ductile Iron
- Rear Shock Type: FOX 2.0 Adventure Series IFP
- Max Tire Size: 35–37" (trimming may be required)
- Vehicle Drive Type: 4WD (Trail Boss / AT4 only)
- Control Arm Type: Stamped Steel Only

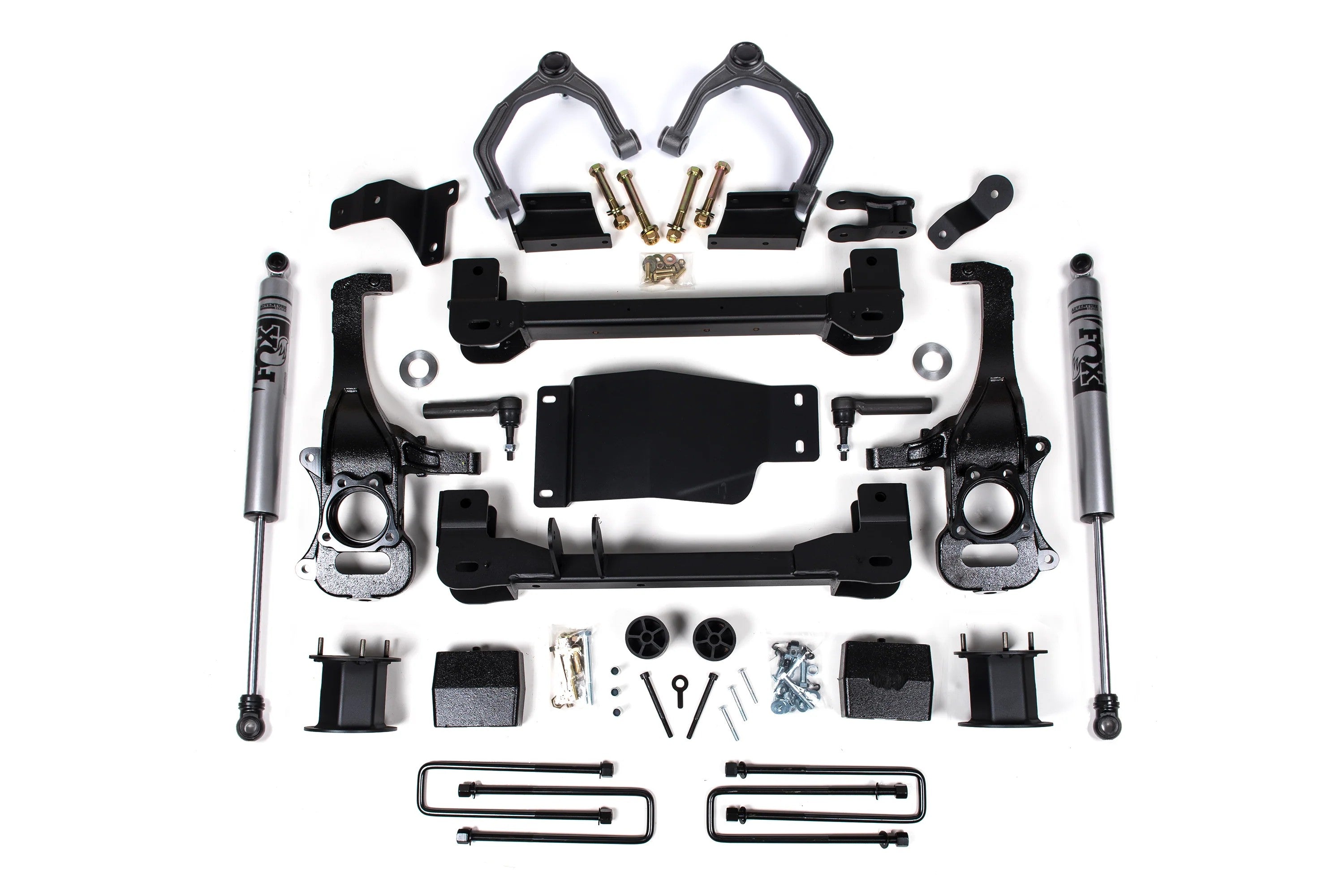

Included:
- (2) Heavy-Duty Crossmembers
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) CNC-Machined Steering Knuckles
- (2) Adventure Series Upper Control Arms
- (2) Front Strut Spacers
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (1) Differential Skid Plate
- (1) Differential Drop Bracket Set
- (1) CV Axle Spacer Set
- (1) Weld-In Frame Support Plate
- (1) Hardware Kit
Fitment:
- 2019–2024 Silverado 1500 Custom Trail Boss – 5.3L/6.2L
- 2019–2024 Silverado 1500 LT Trail Boss – 5.3L/6.2L
- 2019–2024 Sierra 1500 AT4 – 5.3L/6.2L/3.0L Diesel
Note:
- 3 Year Warranty
- Frame bracket modification required
- Professional installation and alignment required
- Some wheel profiles do not clear calipers; test fit required
- Stock 20" wheels may require test-fit for brake caliper clearance
- Factory 17" & 18" wheels cannot be reused due to tie-rod clearance
- Factory 17"/18" wheels cannot be reused. Not tested on 2022+ Super Cruise trucks
- Not compatible with standard (non-lifted) Silverado/Sierra, ZR2, AT4X, 2WD, or MagneRide (ARC) models
