Zone 5 Inch Lift Kit with FOX Shocks For 2011-2019 Chevy/GMC 2500/3500 HD without Overload
SKU:
ZONC12F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,721.50
- $1,721.50
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your Chevy/GMC 2500HD or 3500HD the height, stance, and capability it deserves with the Zone Offroad 5" Torsion Bar Drop Lift Kit. This system provides proper suspension and steering geometry without sacrificing ride comfort — while creating room to run up to 35” tires for a bold off-road presence.
Engineered using high-strength crossmembers, CNC-machined steering knuckles, and a heavy-duty differential skid plate, this kit increases ground clearance and improves approach angles. The FOX 2.0 Adventure Series shocks enhance control and stability on- and off-road, delivering a smooth ride with true performance damping. If you want the right lift for your HD truck — build it the Zone Offroad way.
Features:
- High-strength 1/4" steel crossmembers correct lower arm geometry and stability
- CNC-machined steering knuckles retain proper angles and ESC compatibility
- FOX 2.0 IFP shocks improve control, ride quality, and off-road performance
- No differential trimming required for clean and secure installation
- Differential skid plate improves protection against off-road obstacles
- Torsion bar relocation brackets retain factory adjustability and strength
- Rear 3” lift block and U-bolts level stance with increased tire clearance
- Compatible with 35” tires for enhanced stance and terrain capability
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 5 inches
- Rear Lift Height: 3 inches
- Front Lift Method: Torsion Bar Drop + Crossmembers
- Rear Lift Method: Block & U-Bolt System
- Shock Type: FOX 2.0 Adventure Series IFP
- Shock Body: 2-inch steel monotube
- Steering Correction: CNC-machined drop knuckles
- Skid Plate: Heavy-duty differential protection
- Drivetrain: 4WD (RWD compatible, fewer parts used)
- Max Recommended Tire Size: 35 x 12.50

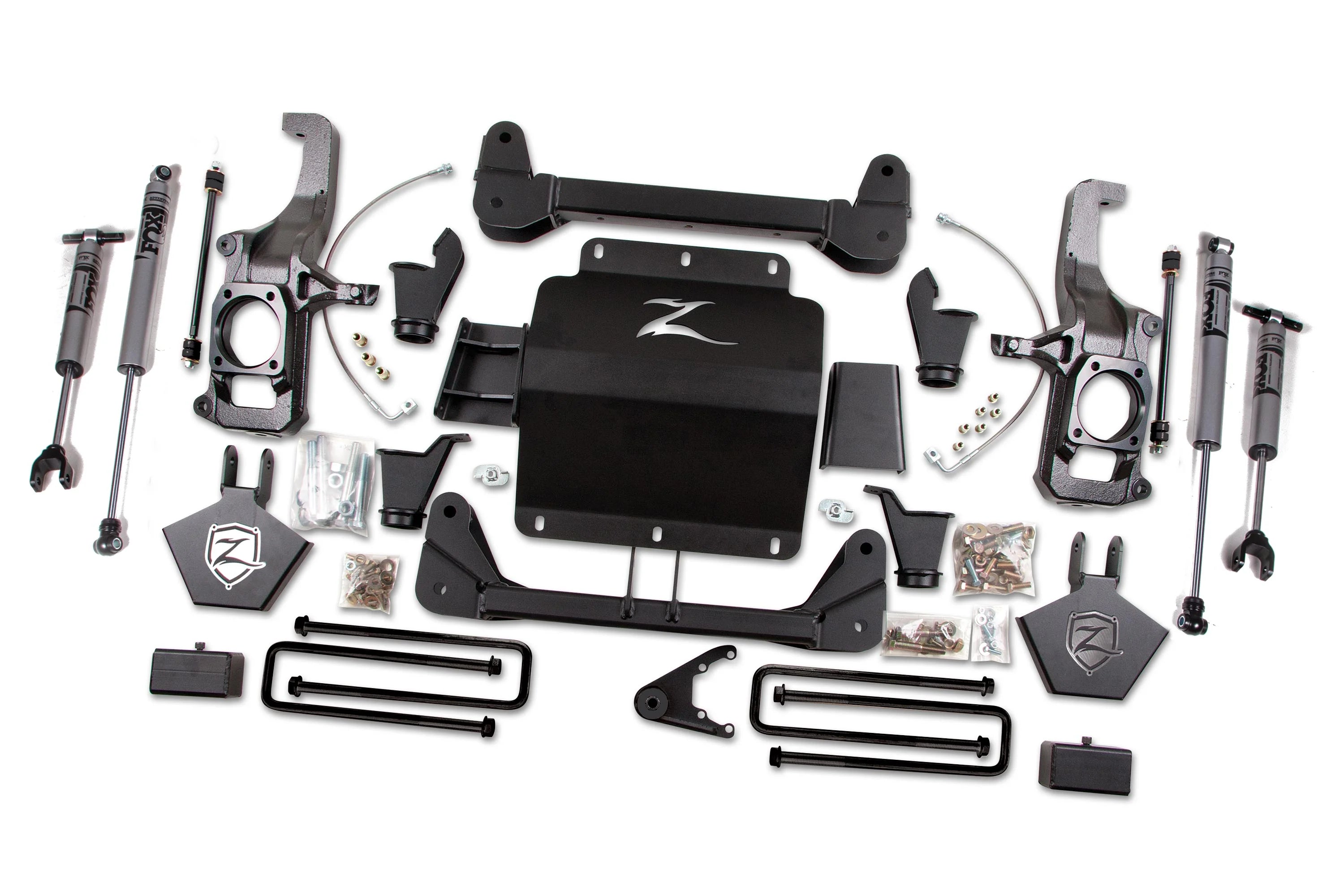

Included:
- (2) Heavy-Duty Crossmembers
- (2) FOX 2.0 Adventure Series Front Shocks
(2) FOX 2.0 Adventure Series Rear Shocks - (1) Differential Skid Plate
- (1) Torsion Bar Relocation Bracket Set
- (1) Differential Drop Bracket Set
- (2) CNC-Machined Steering Knuckles
- (1) Rear Lift Block & U-Bolt Kit
- (1) Hardware Kit
Fitment:
- 2011–2019 Chevrolet Silverado 2500HD 6.0L 4WD (without factory overload)
- 2011–2019 Chevrolet Silverado 3500HD 6.0L 4WD (without factory overload)
- 2011–2019 GMC Sierra 2500HD 6.0L 4WD (without factory overload)
- 2011–2019 GMC Sierra 3500HD 6.0L 4WD (without factory overload)
- 2011–2019 Chevrolet Silverado 2500HD 6.6L 4WD (without factory overload)
- 2011–2019 Chevrolet Silverado 3500HD 6.6L 4WD (without factory overload)
- 2011–2019 GMC Sierra 2500HD 6.6L 4WD (without factory overload)
- 2011–2019 GMC Sierra 3500HD 6.6L 4WD (without factory overload)
Note:
- 3 Year Warranty
- Stock 17" and 18" wheels cannot be reused; clearance issues
- Factory 20" wheels cannot be reused on 2015–2018 models
- 5–6" wheel backspacing recommended for aftermarket wheels
- Some trimming may be required for full tire clearance
- Frame bracket modifications required during installation
- Minor front driveline vibration possible in 4WD at highway speed
- If vibration occurs, dual-cardan front driveshaft recommended
- Optional steering stabilizer PN 7103 for trucks equipped from factory
- Two-piece driveshaft requires carrier bearing drop kit (not included)
Product Specs
SKU:
ZONC12F
Brand:
Zone Offroad
