Zone Offroad 6.5 inch Lift Kit with Nitro and FOX Shocks For 2014-2018 Chevy/GMC Silverado/Sierra 1500 2WD Cast Steel LCA
SKU:
ZONC61F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,344.75
- $1,344.75
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 2014–2018 Chevy Silverado 1500 or GMC Sierra 1500 2WD the height, stance, and capability it deserves with the Zone Offroad 6.5” Suspension Lift Kit. Designed specifically for trucks equipped with cast steel control arms, this system delivers improved suspension geometry, increased ground clearance, and room for up to 35” tires. Whether used for daily driving or off-road adventure, this lift kit provides reliable performance and factory-like handling.
Zone Offroad includes heavy-duty 1/4" steel crossmembers, ductile iron steering knuckles, differential relocation brackets, a reinforced skid plate, and Nitro Series front struts for improved damping. With proper CV angles, steering correction, and a complete rear lift system, this kit provides strength, durability, and stability you can depend on.
Features:
- Corrects suspension, steering, and driveline geometry for stability
- FMVSS 126 compliant to maintain factory traction and stability control
- 1/4" steel crossmembers improve strength and LCA operating angles
- Ductile iron knuckles correct steering angles for proper alignment
- Nitro Series struts enhance ride quality and off-road damping control
- Diff relocation and skid plate improve CV angles and driveline safety
- Rear 5" lift block system levels the stance and increases clearance
- Clears up to 35" tires for a bold, aggressive on-road and off-road look
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 6.5 inches
- Rear Lift Height: 5 inches
- Front Lift Method: Crossmembers & Nitro Struts
- Rear Lift Method: Cast Lift Block & U-Bolts
- Front Struts: Nitro Series Gas-Charged
- Control Arms: Cast Steel Only
- Knuckles: CNC-Machined Ductile Iron
- Diff Relocation: Included
- Max Tire Size: 35 x 12.50 (trimming may be required)
- Drive Type: 2WD (RWD) Models Only

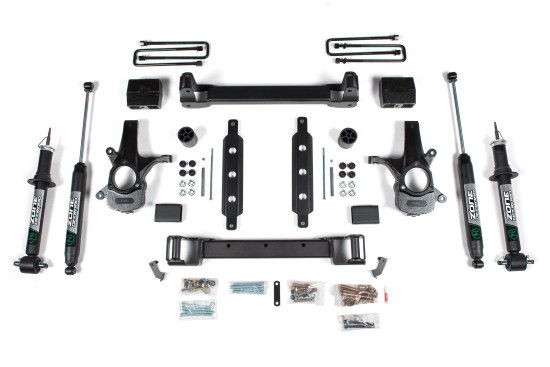

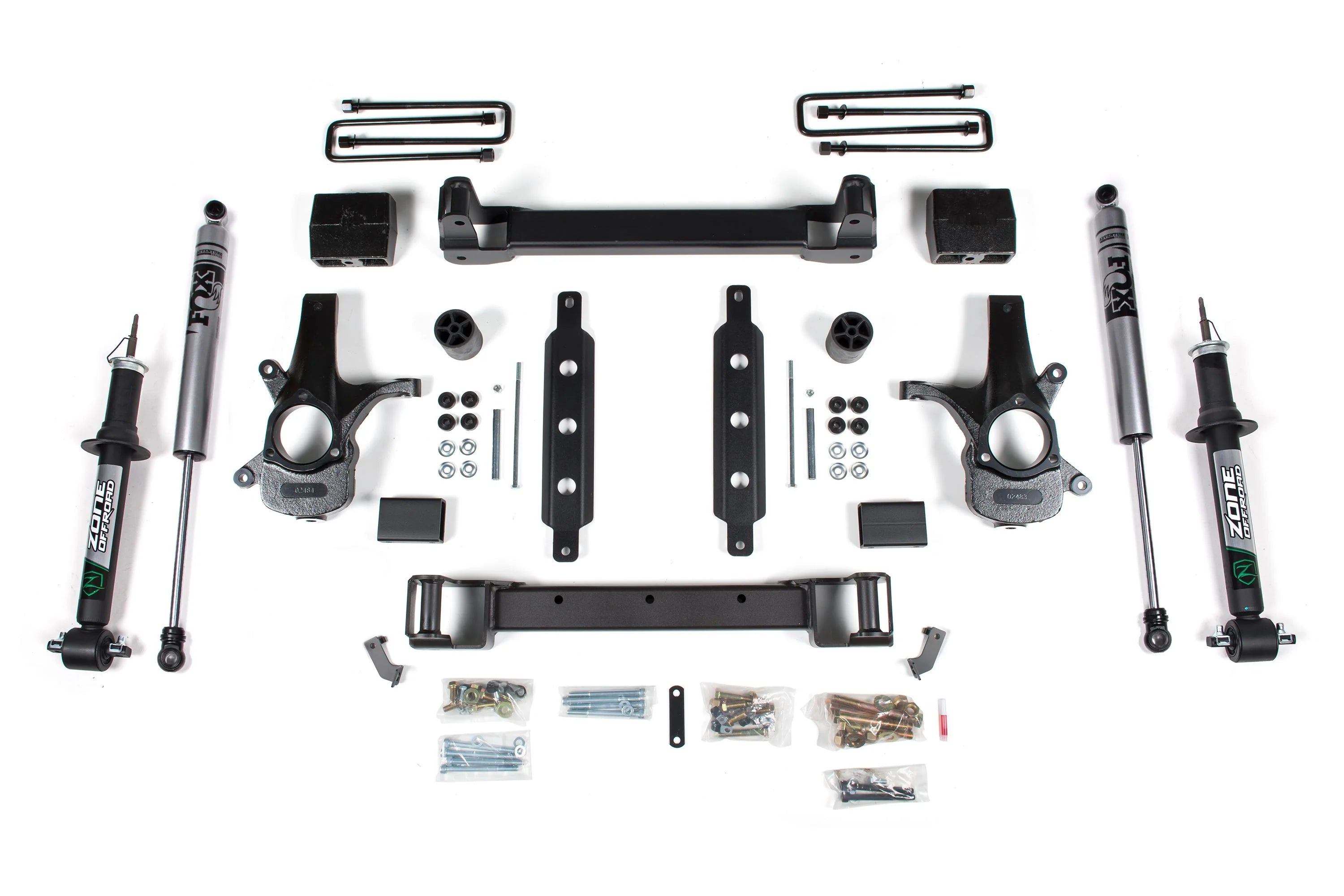

Included:
- (2) High-Strength Front Crossmembers – 1/4" steel
- (2) Ductile Iron Steering Knuckles – CNC-machined
- (2) Nitro Series Front Struts – Gas-charged twin-tube design
- (1) Front Skid Plate – Heavy-duty steel
- (1) Differential Relocation Bracket Set – Steel
- (1) CV Axle Spacer Set – Steel
- (2) Rear Lift Blocks – Cast steel, 5"
- (4) Rear U-Bolts – High-strength steel
- (1) Sway Bar Relocation Bracket Set – Steel
- (1) Brake Line & Bump Stop Relocation Kit
- (1) Complete Hardware Pack – All required fasteners
- (1) Hardware Kit
Fitment:
- 2014–2018 Chevrolet Silverado 1500 2WD (Cast Steel Control Arms)
- 2014–2018 GMC Sierra 1500 2WD (Cast Steel Control Arms)
Note:
- 3 Year Warranty
- Will NOT fit MagneRide-equipped models
- 1/4" wheel spacer required to run factory 20" wheels
- Professional installation & post-lift alignment required
- Max rear shock length is 29.75" to prevent driveshaft contact
- All-wheel-drive models may require CV driveshaft modification
- Factory 17" & 18" wheels cannot be reused due to tie-rod interference
- 20x9 wheels with 5.75" backspacing recommended to reduce trimming
- Cast steel control arm trucks ONLY (not for stamped or aluminum arms)
Product Specs
SKU:
ZONC61F
Brand:
Zone Offroad
