Zone Offroad 6.5 Inch Lift Kit Nitro and FOX Shocks For 2014-2018 Chevy/GMC Sierra/ Silverado 1500 2WD with Stamped or Aluminum Lower Control Arms

Transform the stance, capability, and performance of your 2014–2018 Chevy Silverado 1500 or GMC Sierra 1500 2WD with the Zone Offroad 6.5" Suspension Lift Kit. Designed for trucks equipped with stamped steel or aluminum control arms, this system delivers improved ground clearance, corrected suspension geometry, and the strength needed for larger 35" tires. The included high-strength crossmembers and ductile iron knuckles maintain proper steering angles while preserving ESC (FMVSS No.126) compliance.

This lift kit features Nitro Series front struts for improved on-road comfort and controlled off-road damping, paired with FOX 2.0 Adventure Series rear shocks for superior fade-free performance. With multi-point differential relocation, sway bar correction, bump stop brackets, and a 5" rear lift block system, this kit provides the full package—enhancing strength, stability, and durability for daily driving or weekend adventure.

Features:

• Nitro Series struts provide smooth damping and improved ride stability
• FOX 2.0 rear shocks offer fade-free performance in off-road conditions
• High-strength crossmembers correct LCA geometry for lifted stance
• Ductile iron knuckles maintain steering angles and ESC compliance
• Top-mount strut spacers lift without strut disassembly required
• 5" rear lift block kit delivers a level, aggressive truck stance
• Multi-point diff drop brackets maintain proper CV axle alignment
• Clears 35” tires for maximum ground clearance and bold appearance

Specifications:

• Brand: Zone Offroad
• Front Lift Height: 6.5 inches
• Rear Lift Height: 5 inches
• Front Lift Method: Crossmembers & Strut Spacer
• Rear Lift Method: Block & U-Bolt Kit
• Front Shock Type: Nitro Series Gas-Charged Strut
• Rear Shock Type: FOX 2.0 Adventure Series IFP
• Drive Type: 2WD Models Only
• Max Tire Size: 35x12.50 (trimming may be required)
• Control Arm Compatibility: Stamped Steel or Aluminum
• Wheel Backspacing: Max 5.75"; stock 17/18" wheels not compatible

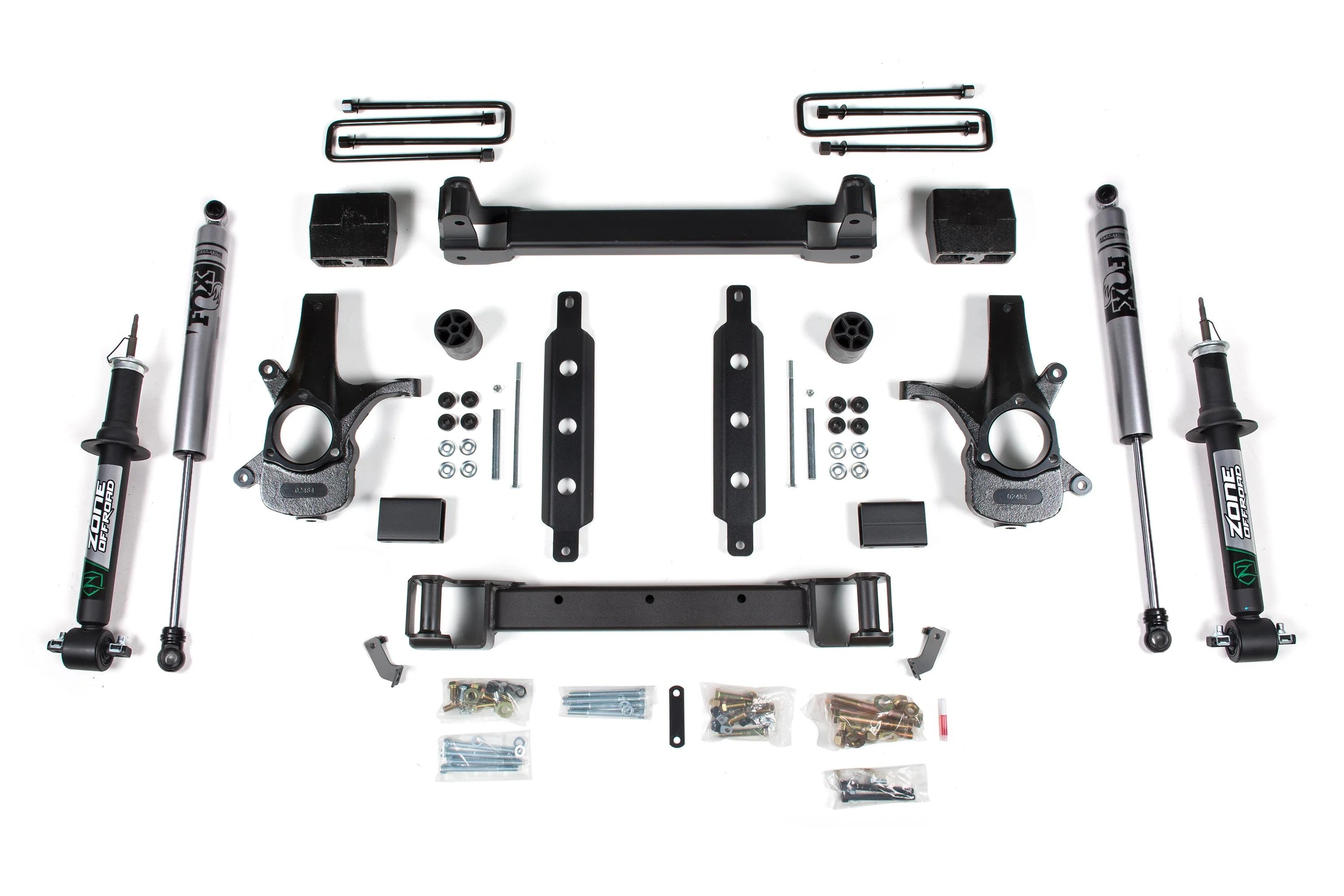

Included:

• (2) High-Strength Crossmembers
• (2) Ductile Iron Steering Knuckles
• (2) Nitro Series Front Struts
• (2) FOX 2.0 Adventure Series Rear Shocks
• (2) Front Strut Spacers
• (2) Rear Lift Blocks
• (4) Rear U-Bolts – High-strength coated
• (1) Sway Bar Relocation Bracket Set
• (1) Brake Line Relocation Bracket Set
• (1) Bump Stop Relocation Kit
• (1) Differential Relocation Kit
• (1) Complete Hardware Pack

Fitment:

• 2014–2018 Chevrolet Silverado 1500 2WD (Stamped Steel or Aluminum Control Arms)
• 2014–2018 GMC Sierra 1500 2WD (Stamped Steel or Aluminum Control Arms)

Note:

• 3 Year Warranty
• Stock 20" wheels require a 1/4" wheel spacer for proper clearance
• Factory 17" and 18" wheels cannot be reused due to tie-rod interference
• A 20x9 wheel with 5.75" backspacing is recommended to reduce trimming
• Stamped and aluminum arm trucks require the aluminum-arm version of this kit
• Maximum rear shock length is 29-3/4" to avoid driveshaft/crossmember contact
• Check Control Arms: GM used cast steel, stamped steel, and aluminum (2014–2017)
