Zone Offroad 6.5 Inch Lift Kit with Nitro Shocks and Spacers For 2014-2018 Chevy Silverado & GMC Sierra 1500 4WD
SKU:
ZONC25N
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,240.75
- $1,240.75
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your truck’s stance, capability, and performance with the Zone Offroad 6.5” Lift Kit with Strut Spacers and Nitro Shocks, engineered for 2014–2018 Chevrolet Silverado and GMC Sierra 1500 4WD models equipped with cast steel control arms. This system delivers aggressive height, improved ground clearance, and clearance for up to 35-inch tires while maintaining factory ride quality and proper suspension geometry.
Designed for strength and reliability, this kit features heavy-duty crossmembers, CNC-machined steering knuckles, differential relocation brackets, and nitrogen-charged Nitro Series shocks for balanced on-road comfort and confident off-road control. Proudly made in the USA, this lift kit is FMVSS No.126 compliant and built to integrate seamlessly with factory stability and traction control systems.
Features:
- 6.5-inch lift height for aggressive stance and increased clearance
- Nitro shocks provide controlled ride and improved off-road damping
- Strut spacers retain factory ride quality using OE struts
- High-strength steel crossmembers correct suspension geometry
- CNC-machined steering knuckles improve strength and steering angles
- Differential drop brackets reduce CV axle operating angles
- Rear lift blocks and U-bolts provide level rear stance
- Made in the USA and FMVSS No.126 compliant
Specifications:
- Brand: Zone Offroad
- Product Type: Suspension lift kit
- Lift Height Front: 6.5 inches
- Lift Height Rear: 6.5 inches
- Front Lift Method: Strut spacer with steering knuckles
- Rear Lift Method: Lift blocks
- Shock Type: Nitro Series twin-tube shocks
- Drive Type: 4WD only
- Maximum Tire Size: Up to 35 inches
- Control Arm Type Required: Factory cast steel control arms

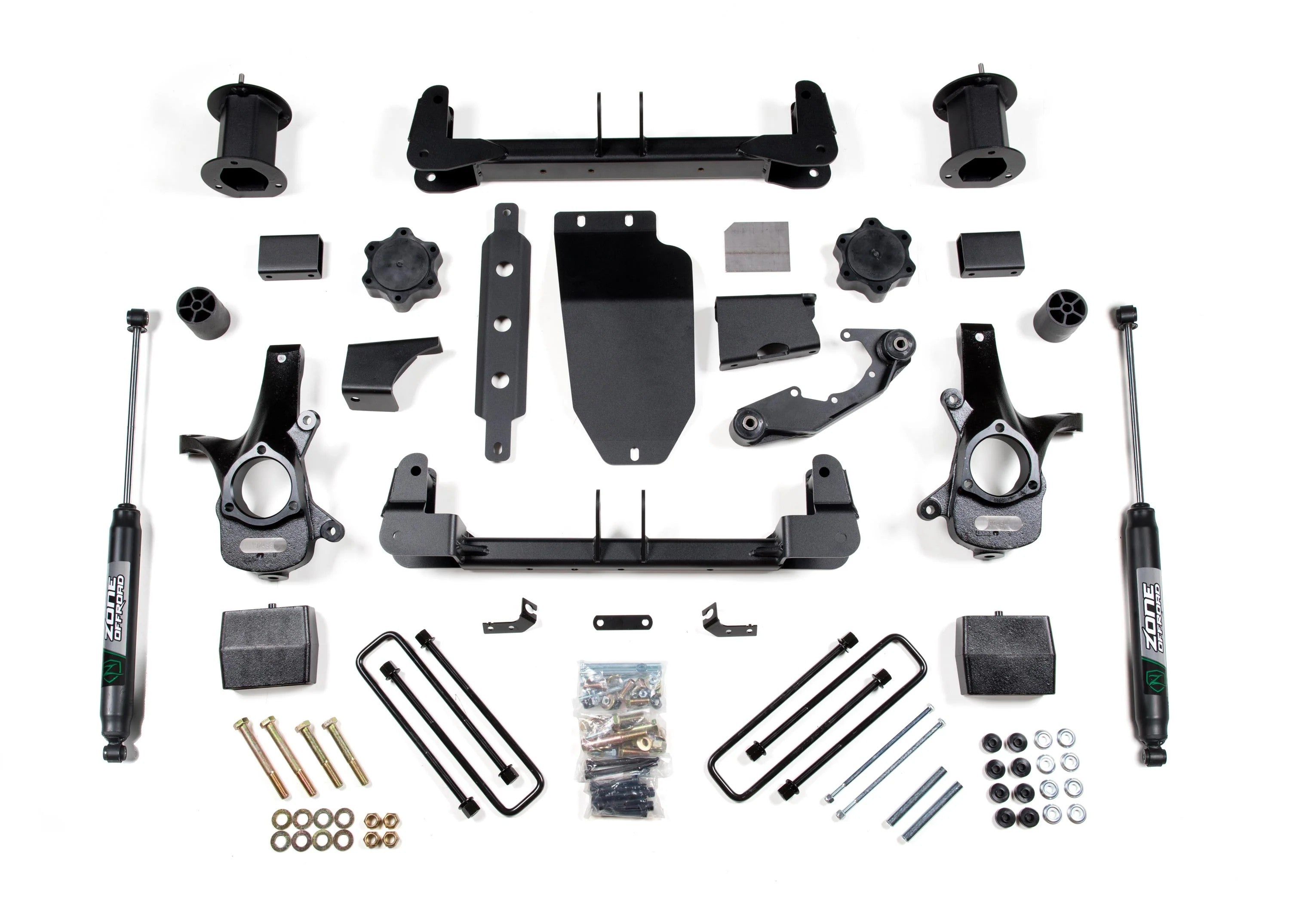

Included:
- (2) Front Strut Spacers
- (2) Front Steering Knuckles
- (2) Front Crossmembers
- (2) Differential Drop Brackets
- (1) Rear Lift Block Kit
- (4) Rear Extended U-Bolts
- (2) Front CV Axle Spacers
- (1) Skid Plate
- (4) Nitro Series Shocks
- (1) Hardware Kit
Fitment:
- 2014–2018 Chevrolet Silverado 1500 4WD 5.3L V8
- 2014–2018 Chevrolet Silverado 1500 4WD 6.2L V8
- 2014–2018 GMC Sierra 1500 4WD 5.3L V8
- 2014–2018 GMC Sierra 1500 4WD 6.2L V8
Note:
- 3 Year Warranty
- Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
- Crew Cab? Add-A-Leaf: Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
- Fitment: All wheel drive models may require front CV driveshaft. See installation instructions for more information.
- Fitment: Will NOT fit models equipped with MagneRide magnetic ride control.
- Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
- Wheels / Tires: For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.75" backspacing.
Product Specs
SKU:
ZONC25N
Brand:
Zone Offroad
