Zone 6.5” Radius Arm Lift Kit For 2014 - 2018 Dodge/Ram 2500 - 4Wd / Diesel

Take your RAM 2500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features:

• Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and levelign the stance
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Fitment:

• 2014 - 2018 Dodge/Ram 2500 - 4Wd / Diesel

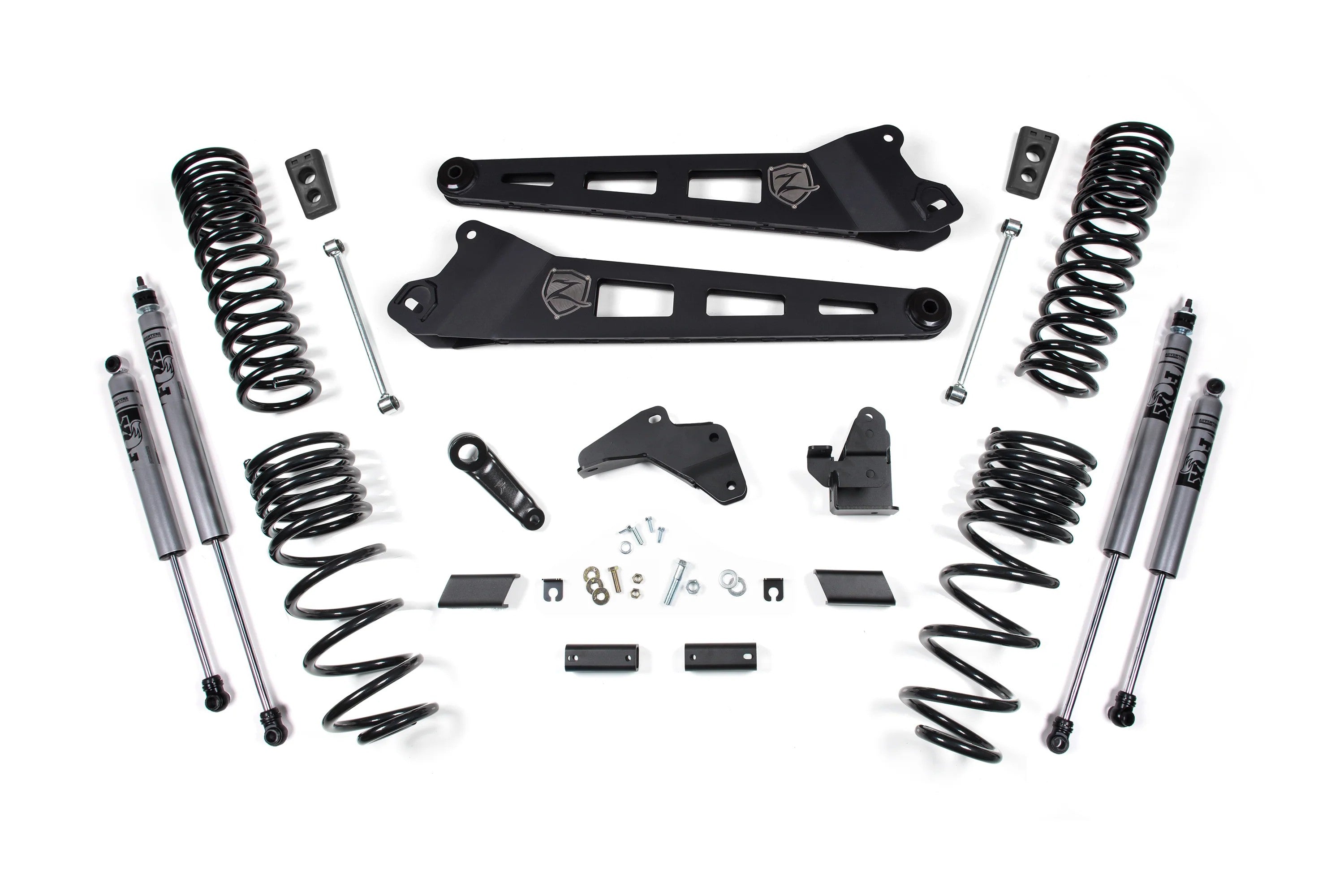

Included:

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket
• Radius Arms

Notes:

• Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
• Fitment: Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• Will not fit Power Wagon models.
