Zone Offroad 6.5 Inch Lift Kit For FOX Shocks For 2014-2018 Chevrolet/GMC Silverado/Sierra 1500 2WD Stamped Control Arms
SKU:
ZONC34F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,067.80
- $1,067.80
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your Chevrolet Silverado 1500 or GMC Sierra 1500 to new heights with the Zone Offroad 6.5” Suspension Lift System designed specifically for stamped-steel control-arm trucks. This system includes high-strength front crossmembers, heavy-duty ductile-iron steering knuckles, top-mounted strut spacers, and a 5” rear block kit to achieve a level, aggressive stance. With clearance for up to 35" tires, this lift transforms your truck’s appearance and capability while maintaining factory ride control.
Zone Offroad engineered this system to maintain proper steering geometry, ESC system compatibility, and OE-like handling. Sway bar correction, brake line relocation, bump-stop extensions, and optional FOX 2.0 Adventure Series rear shocks enhance stability and performance. Whether you're daily driving or exploring off-road terrain, this 6.5” lift provides the strength, reliability, and ride quality expected from a premium suspension system.
Features:
- High strength crossmembers improve lower control arm positioning
- Ductile iron knuckles maintain ESC compatibility and steering angle
- Top mounted strut spacers retain factory ride and install easily
- Five inch rear block kit levels stance and improves load handling
- Relocation brackets correct sway bar bump stop and brake lines
- Allows clearance for up to thirty five inch tires with trimming
- Heavy duty design maintains stability for on and off road driving
- Engineered for stamped steel control arm equipped GM 1500 trucks
Specifications:
- Brand: Zone Offroad
- Front lift height: 6.5 inches
- Rear lift height: 5 inches
- Front lift method: Crossmembers and strut spacers
- Rear lift method: Steel lift block and U-bolts
- Shock option: FOX 2.0 Adventure Series (rear)
- Control arm type: Stamped steel factory arms
- Max tire size: Up to 35 x 12.50 with correct wheels
- Wheel requirements: 20”+ wheels recommended
- Drive type: 2WD models only

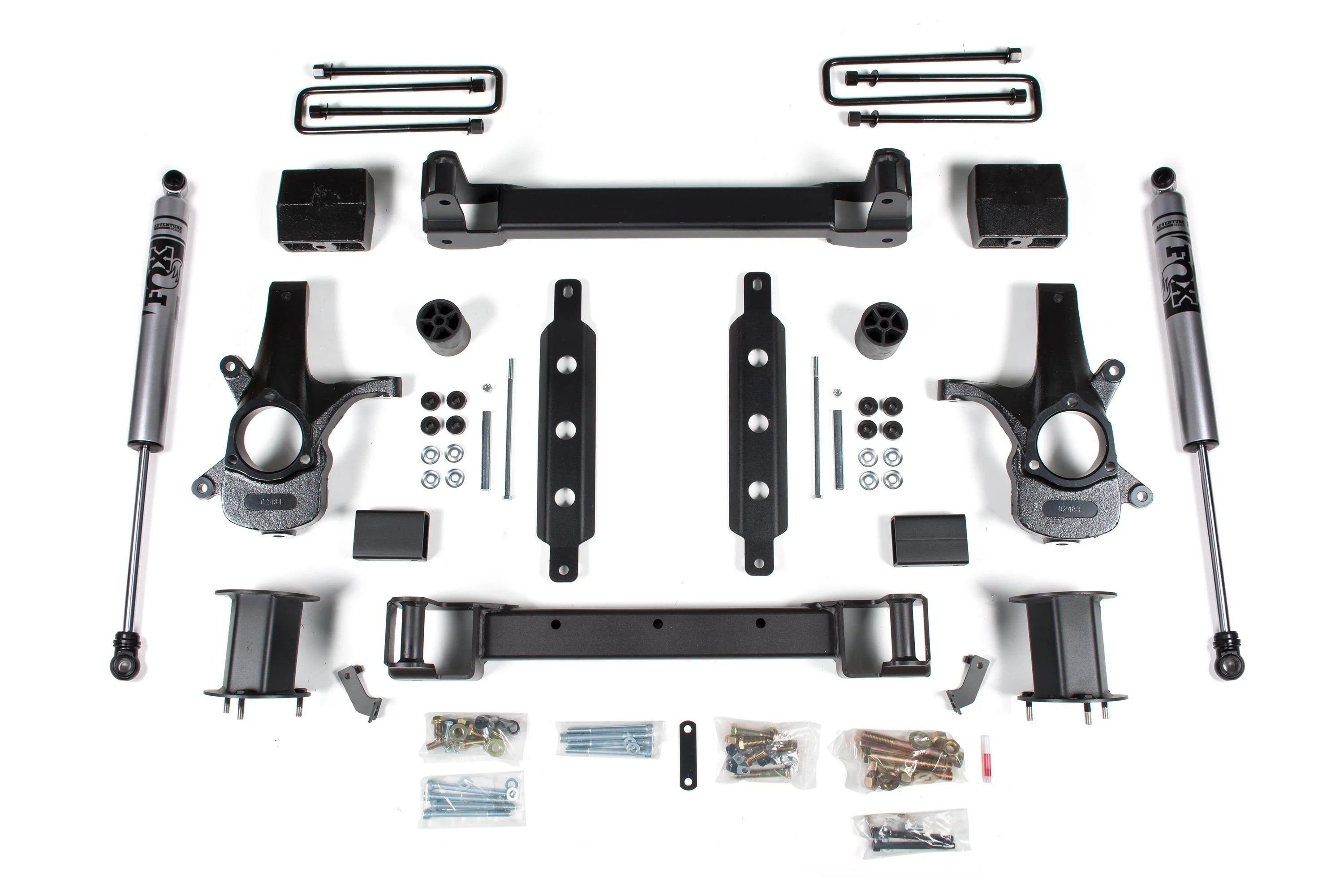

Included:
- (1) Front Crossmember
- (1) Rear Crossmember
- (2) Steering Knuckles
- (1) Differential Skid Plate
- (2) Differential Drop Brackets
- (2) Front Strut Spacers
- (1) Rear 5" Lift Block
- (4) Rear U-Bolts
- (1) Sway Bar Relocation Bracket Kit
- (1) Bump Stop Relocation Kit
- (1) Hardware Kit
Fitment:
- 2014-2018 Chevrolet Silverado 1500 4.3L V6 2WD (Stamped Control Arms)
- 2014-2018 Chevrolet Silverado 1500 5.3L V8 2WD (Stamped Control Arms)
- 2014-2018 Chevrolet Silverado 1500 6.2L V8 2WD (Stamped Control Arms)
Notes:
- 3 Year Warranty
- Does NOT fit 4WD models
- Does NOT fit MagneRide trucks
- Requires 1/4" wheel spacer to accommodate stock 20" rims
- Only fits vehicles with Stamped Steel and Aluminum control arms
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
- Maximum Rear Shock length is 29-3/4" due to driveshaft to cross member interference
- To reduce trimming required for tire fitment, a 20" wheel w/5.75" backspacing is recommended
Product Specs
SKU:
ZONC34F
Brand:
Zone Offroad
