Zone Offroad 6.5 Inch Lift Kit with FOX Shocks For 2007-2013 Chevy Silverado/GMC Sierra 1500 4WD
SKU:
ZONC40F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,030.75
- $1,030.75
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your 2007–2013 Chevy Silverado or GMC Sierra 1500 4WD with the Zone Offroad 6.5" Suspension Lift Kit featuring FOX 2.0 Adventure Series shocks for improved damping control on and off the pavement. Engineered to maintain drivability, correct suspension geometry, and deliver a bold lifted stance, this kit provides clearance for up to 35” tires with increased ground clearance and off-road capability.
Built with high-strength, precision-engineered components, this kit includes reinforced crossmembers, ductile iron steering knuckles, sway bar and bump stop correction, and a differential skid plate for trail protection. Whether daily driving or weekend trail running, the Zone Offroad 6.5" lift offers the perfect balance of performance, durability, and appearance.
Fitment Notes: This kit does not fit 2007 “Classic” models (refer to 1999–2006 applications). It also will not fit 2009–2011 Two-Mode Hybrid models equipped with Electronic Power Steering. Factory 17" and 18" wheels cannot be reused due to tie-rod clearance, and factory 20" wheels require a 1/4" wheel spacer for proper fit. A professional alignment is required after installation, and minor trimming may be necessary to achieve full tire clearance.
Features:
- Engineered steering geometry maintains stability with ESC systems enabled
- FOX 2.0 shocks improve body control, comfort, and performance
- High-strength crossmembers correct lower control arm positioning
- Differential drop brackets maintain proper CV angles to reduce wear
- Strut spacers allow lift height increase retaining factory ride qualities
- Laser-cut steel skid plate protects the differential during off-road use
- Rear lift blocks and U-bolts provide easy installation and level stance
- Bump stop and sway bar brackets correct angles after lifting suspension
Specifications:
- Brand: Zone Offroad
- Lift Height: 6.5" Front / 5" Rear
- Compatible Drive Type: 4WD & AWD (Denali)
- Max Recommended Tire Size: 35x12.50
- Shock Type: FOX 2.0 Adventure Series IFP
- Material: High-strength steel crossmembers & knuckles
- Strut Lift Method: Top-mounted strut spacers
- Rear Lift Method: Lift blocks and longer U-bolts
- Includes Differential Relocation: Yes (brackets included)
- Skid Plate: Steel, included for diff protection

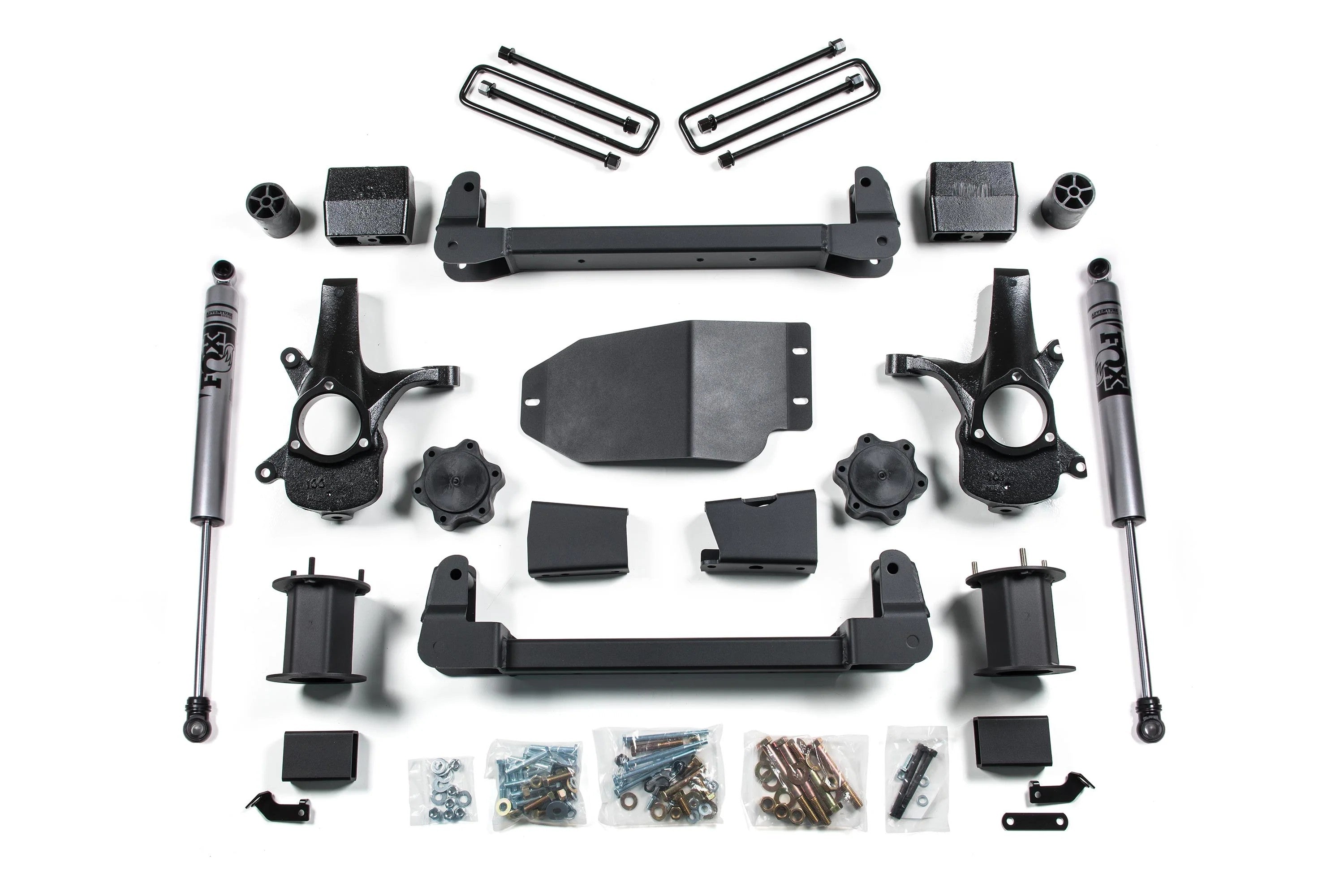

Included:
- (2) High-strength Front Crossmembers – steel
- (2) Replacement Steering Knuckles – ductile iron
- (2) FOX 2.0 Adventure Series Rear Shocks
- (1) Differential Skid Plate – steel
- (1) Pair of Strut Spacers – steel
- (2) Rear Lift Blocks – steel
- (4) Rear U-Bolts – steel
- CV Axle Spacers
- Brake Line, Bump Stop & Sway Bar Brackets
- (1) Hardware Kit
Fitment:
- 2007-2013 Chevy Silverado 1500 4WD
- 2007-2013 GMC Sierra 1500 4WD
Note:
- 1 Year Warranty
- Professional alignment required after installation
- Factory 17” & 18” wheels cannot be reused due to tie rod clearance
- Factory 20” wheels require 1/4” wheel spacers for proper clearance
Product Specs
SKU:
ZONC40F
Brand:
Zone Offroad
